Mishimoto MMBCC-CBTWO-BK

Description

Mishimoto - MMBCC-CBTWO-BK

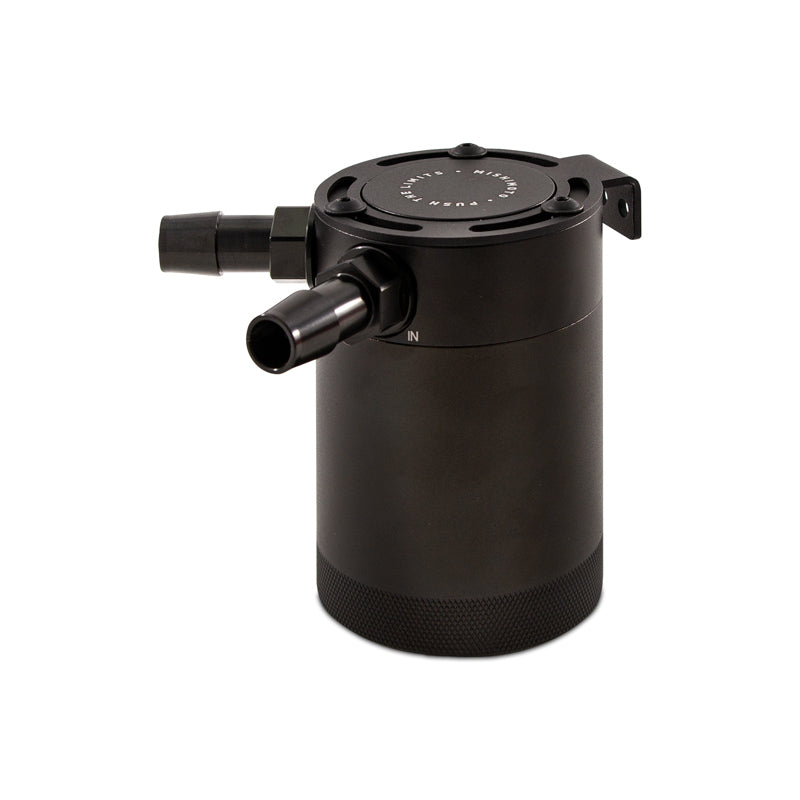

Mishimoto Compact Baffled Oil Catch Can, 2-Port Black

Mishimoto is proud to announce the release of our Compact Baffled Oil Catch Can, available in a two-port or three-port option. With years of oil catch can research and development time, Mishimoto has created the most effective compact oil catch can on the market. The Mishimoto Compact Baffled Oil Catch Can was designed to separate oil particles from the PCV/CCV air that would normally have just been routed back to your intake. The internal air diverter turbulates the air longer and ensures all the oil sinks to the bottom of the can, leaving nothing but clean air to pass through the 50 micron bronze filter to the intake. An internal baffle keeps the collected oil from splashing around under race conditions. This oil catch can features two ports, one inlet and one outlet, for easy installation on CCV and PCV systems. The 100-percent billet, 6061 aluminum can features 3/8in NPT threads at the inlet, outlet, and drain area and includes two black nylon fittings to make installation effortless. For maximum fitment options, the top mounting setup allows the can to be mounted from multiple angles. To make maintenance easy, the drain plug can be removed to allow for a return to the oil pan. The can is also 100-percent washable, unlike many other cans that require you to replace your filtration system.Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First, our catch cans are not heated. This means that all of the blow-by is able to condense in the can, including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan, while our catch cans trap the blow-by and keep it out of the engine permanently. If you've seen what We've seen in the bottom of our catch cans, you won't want that draining back into your oil either.

Separates oil particles from PCV/CCV air using 50 micron bronze filter
Patent pending billet 6061 aluminum can sealed with Viton O-rings
3 oz internal capacity for improved servicing intervals
Includes 2 CNC-machines aluminum 1/2in barbed hose fittings
Mishimoto Lifetime Warranty

TechSpec Material: 6061 Aluminum

TechSpec Installation Notes: 3.8

TechSpec Note: 2.5

SellingPoint01: Separates oil particles from PCV/CCV air using 50 micron bronze filter

SellingPoint02: 100-percent billet 6061 aluminum sealed can

SellingPoint03: Defends intercooler, intake system, and essential components from oil blow-by

SellingPoint04: Helps maintain proper octane levels to reduce potential detonation

SellingPoint05: Features one inlet and one outlet

SellingPoint06: Filter and can are both fully serviceable

SellingPoint07: Safe for pressurized applications

SellingPoint08: Internal air diverter increases air turbulence to improve oil separation

SellingPoint09: Includes 2 plastic barbed 1/2-in hose fittings

SellingPoint10: Universal mounting bracket for different configurations

SellingPoint11: Mishimoto Lifetime Warranty

SellingPoint12: Patent numberUS D884,760 S

SellingPoint13: Looking for a larger can? Click here for our XL Baffled Oil Catch Can

SellingPoint14: N/A

SellingPoint15: N/A

Install Difficulty: 2

OptionLabel: Black

Color: Black

Finish: Anodized

Installation Difficulty: 1

Material: 6061 Aluminum

TechSpec Height (in): 3.8

TechSpec Catch Can Diameter (in): 2.5

TechSpec Inlet: M16x1.5

TechSpec Outlet: M16x1.5

TechSpec Drain Plug Thread Size: 3/8 NPT

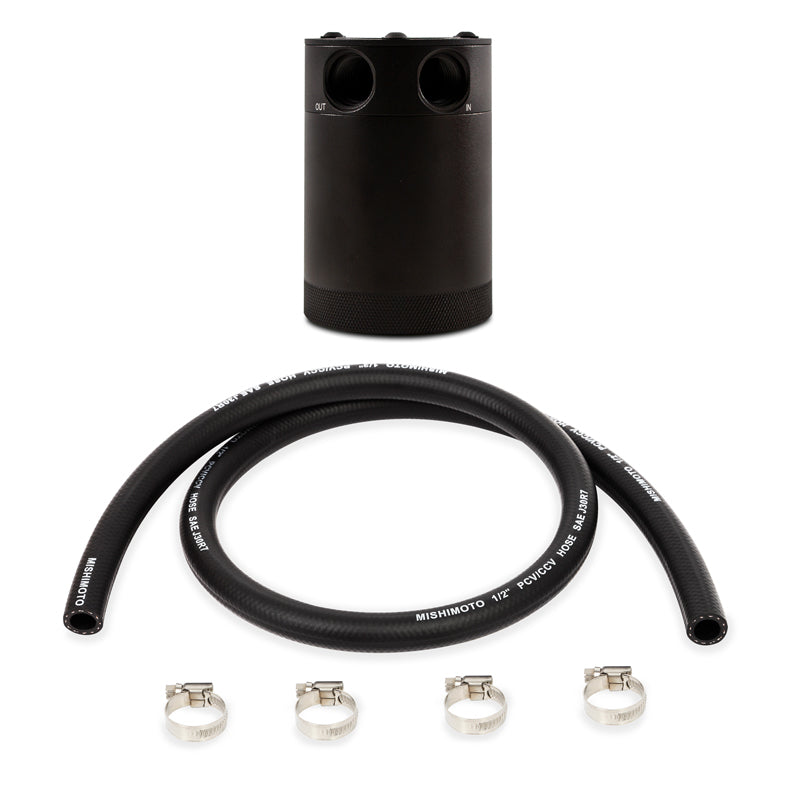

TechSpec Includes: (1) Compact 2-Port Baffled Oil Catch Can--(2) Aluminum 1/2-in Barbed Fittings--(1) Universal Mounting Bracket--(2) Self-Tapping Screws--Mishimoto Lifetime Warranty

TechSpec Applications: N/A

TechSpec Engine Codes: N/A

TechSpec Chassis Codes: N/A
