Zone Offroad ZONT1F - 07-15 Toyota Tundra 5 Inch Lift Kit With Fox 2.0 Adventure Series Offroad
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
This is because the item is either a clearance item, or it may be made to order. Ask all questions before ordering.
This Item is NOT IN STOCK and may have an EXTENDED LEAD TIME.
IF YOU ARE IN A RUSH - DO NOT ORDER
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
Description
Description
Zone Offroad ZONT1F - 07-15 Toyota Tundra 5 Inch Lift Kit With Fox 2.0 Adventure Series Offroad
The Tundra has some serious power, take advantage of it with this 5 Inch Lift Kit that makes your truck an off road machine. Iron knuckles and heavy-duty, boxed crossmembers integrate with differential mounts to lock everything together.
Fits 2007 - 2015 Toyota Tundra
Quick Specs:
- Front Lift Height 5 Inch
- Rear Lift Height 3 Inch
- Front Lift Method Knuckle & Drop Cross-Member
- Rear Lift Method Cast Blocks
- Lift Type Lift Kit
- Wheel Size 18 x 9
- Back Spacing 5.5 Inch
- Max Tire Size 35 x 12.5
- Wheel Size 2 20 x 9
- Back Spacing 2 6.25 Inch
- Max Tire Size 2 35 x 12.5
- Wheel Size 3 22 x 9
- Back Spacing 3 6.25 Inch
- Max Tire Size 3 35 x 12.5
- Is Adjustable No
- Finish Powdercoat
- Cutting Required No
- Accommodates Factory Wheels No
- Welding Required No

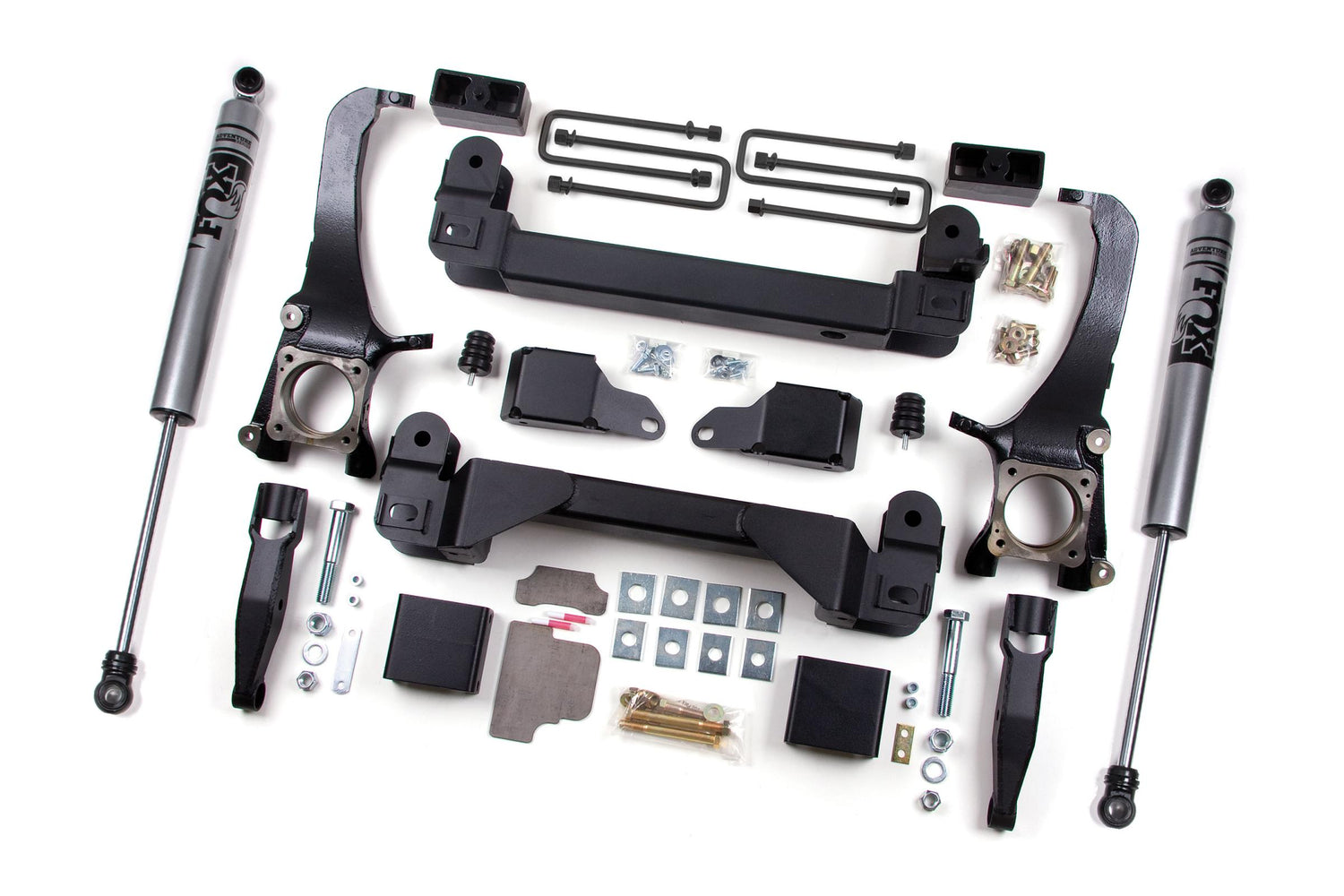

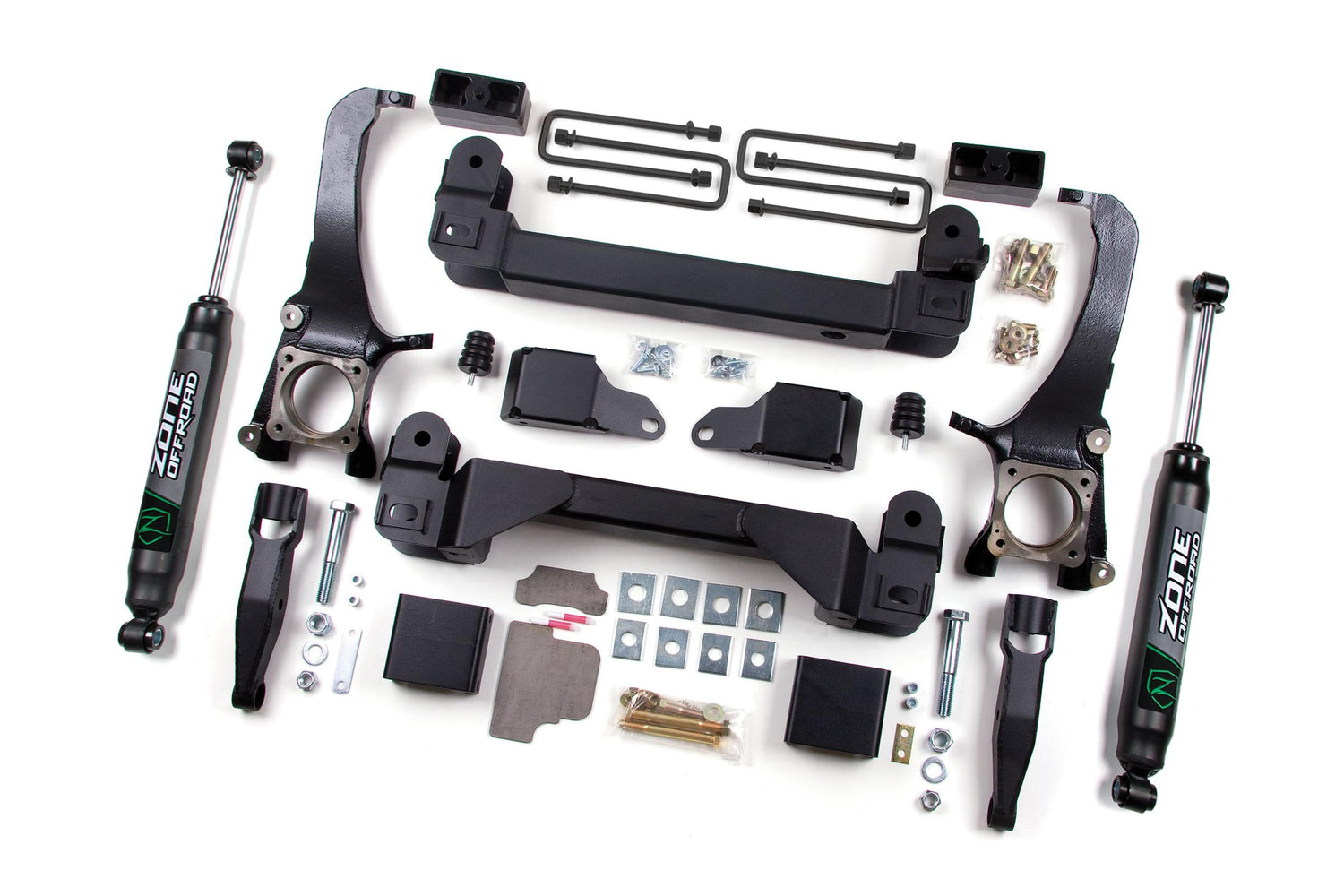

In The Box:
- All Necessary Mounting / Installation Hardware
- Crossmembers
- Lower Strut Extensions
- Rear Lift Block & U-Bolt Kit
- Steering Knuckles
- Tie Rod End(s)
Features:
- High strength crossmembers to correct lower control arm positioning
- Ductile iron steering knuckles to corect steering geometry and maintain ESC system compatibility
- Lower strut extensions to provide lift and install easily
- Weld-in chassis plates add strength and rigidity
- Rear lift blocks and u-bolts to lift and level the stance
- Sway bar, brake line, and bump stop relocation brackets to correct operating angles
Kit Components:
- FOX98450952 Fox Adv Shock 27.30 x 16.70 x 2-S50/EB1 2 810156368301
- ZONT2500 07-15 Toyota Tundra 5.0 Inch Box Kit (1of4) 1 711745601833
- ZONT2501 07-21 Toyota Tundra 5.0 Inch Box Kit (2of4) 1 711745601840
- ZONT2502 07-21 Toyota Tundra 5.0 Inch Box Kit (3of4) 1 711745601857
- ZONT2503 07-21 Toyota Tundra 5.0 Inch Box Kit (4of4) 1 711745601864
