Zone Offroad ZONF58 - 20-22 Ford F-250/F-350 Super Duty 5 Inch Lift Kit Diesel No Shocks Offroad

Zone Offroad ZONF58 - 20-22 Ford F-250/F-350 Super Duty 5 Inch Lift Kit Diesel No Shocks Offroad

Zone Offroad now offers a suspension lifts for the 2020-2022 Ford F250/F30 Super Duty 4WD trucks. These new 5 Inch lift kits are available for gas and diesel applications, as well as offered in standard (radius arm drop bracket) as well as replacement HD radius arm configurations to allow clearance for up to 37 Inch tires.

As with all Zone lift kits, these kits are backed by Factory Protection Plus, the comprehensive extended warranty giving you peace of mind on or off the road with a 5-year, 60,000-mile drivetrain warranty and Zone Offroad's limited lifetime warranty.
Quick Specs:

• Front Lift Height 5 Inch
• Rear Lift Height 3 Inch
• Material Metal
• Front Lift Method Coil Springs
• Rear Lift Method Cast Blocks
• Lift Type Lift Kit
• Wheel Size 20 x 9
• Back Spacing 4.5 Inch
• Max Tire Size 37 x 12.5
• Wheel Size 2 18 x 9
• Back Spacing 2 4.5 Inch
• Max Tire Size 2 37 x 12.5
• Is Adjustable No
• Cutting Required No
• Welding Required No

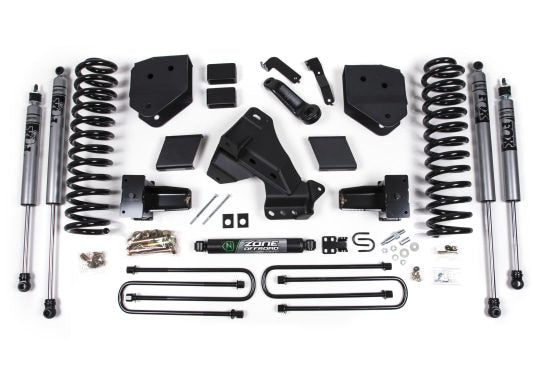

In The Box:

• All Necessary Relocation Brackets
• Coil Springs
• Radius Arm Drop Brackets
• Rear Lift Block & U-Bolt Kit

Features:

• Heavy duty fabricated steel replacement radius arms that correct caster alignment while maximizing ground clearance
• Forged pitman arm to correct steering angles
• Heavy duty fabricated track bar relocation bracket to re-center front axle
• Full length Diesel/ Gas specific coil springs for a smooth ride

Kit Components:

• ZON7302 2017-2024 F250 Single Stabilizer Zone 1 711745595194
• ZONF1410 2017-2022 Super Duty 4 Inch Front Box Kit 1 711745599185
• ZONF1413 2005-2022 Ford F250/350 4 Inch Front Coil Diesel (One) 2 711745599215
• ZONF1450 20-22 F250/F350 4.5 Inch Rear Box Kit 1 711745594432
