Description

Zone Offroad ZONC72 - Offroad 19-23 GMC Denali 1500 4WD 6in Suspension System

Zone 6" Suspension Lift Kit

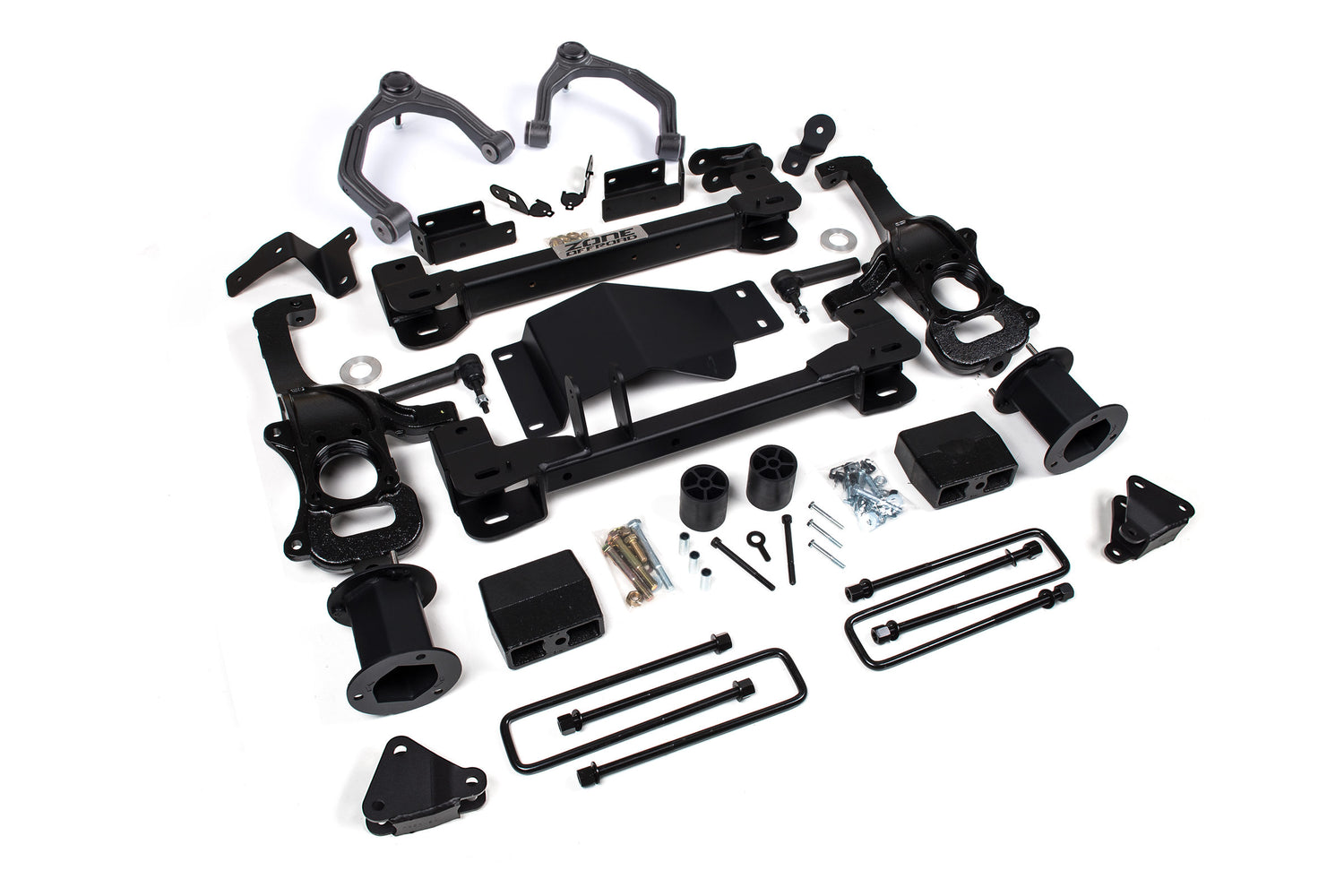

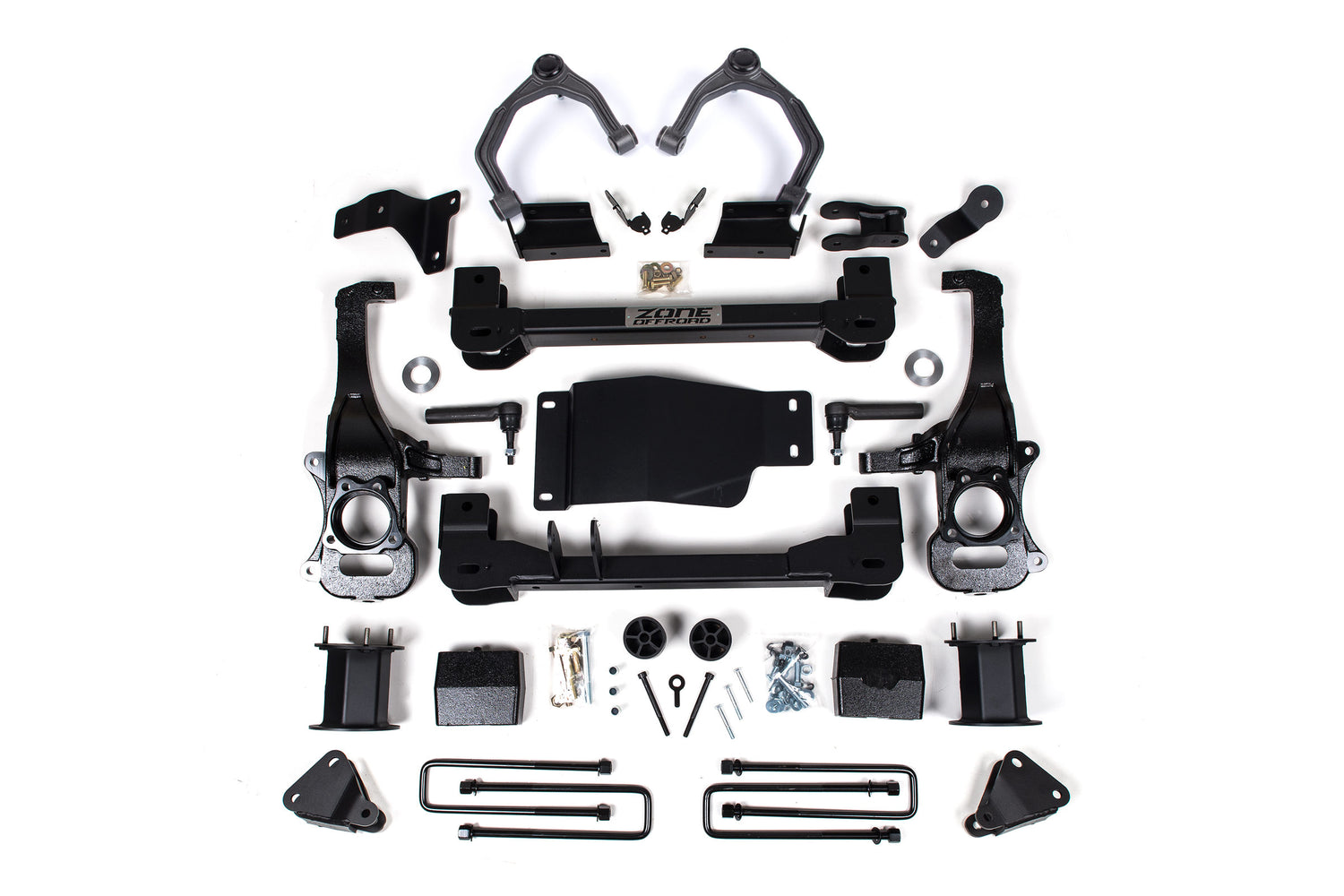

Take your GMC Denali 1500 to new heights with this 6" lift kit from Zone Offroad. These kits are designed to allow full functionality oft he ARC (adaptive ride control) system factory installed on the Denali to retain all the features of your truck at the new lift height. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and ARC sensors, adventure series upper control arms, differential relocation brackets and more. Get the look, performance, and capability your truck deserves with clearance for up to 35" tires.

  • High strength crossmembers to correct lower control arm positioning
  • Ductile iron steering knuckles and new tie rod ends to correct steering geometry and maintain ESC system compatibility
  • Strut spacers and shock relocation brackets to maintain ARC functionality
  • Kits include adventure series upper control arms and differential skid plate for additional offroad protection
  • Adventure Series upper control arms included for additional strength and durability
  • Rear lift blocks and u-bolts to lift and level the stance, sway bar correction, brake line and bump stop relocation brackets to correct operating angles
Back Spacing: 5.5-6.25"
Back Spacing 2: 4.5-6.25
Finish: Powdercoat
Accommodates Factory Wheels: See Notes
Installation Time: 7-9 hrs
Adjustable: No
Front Lift Height: 6"
Rear Lift Height: 4"
Front Lift Method: Strut Spacer & Cross-Member
Rear Lift Method: Lift Block
Lift Type: Lift Kit
Material: Steel
Max Tire Size: 37 x 12.5
Max Tire Size 2: 35 x 12.5
Requires Metal Cutting: Yes
Requires Welding: Yes
Wheel Size: 20 x 9
Wheel Size 2: 20 x 9
Installation Difficulty: 4 out of 5
Required Tools: Cut-off Tool; Welding Equipment
