Yukon Gear YC D706008-X - Replacement Standard Open Carrier Case For Dana 30 3.73 & Up Only D30 Std Case 3.73 & Up 1.943 Inch Tall ( Includes Small Parts)

Yukon Gear YC D706008-X - Replacement Standard Open Carrier Case For Dana 30 3.73 & Up Only D30 Std Case 3.73 & Up 1.943 Inch Tall ( Includes Small Parts)

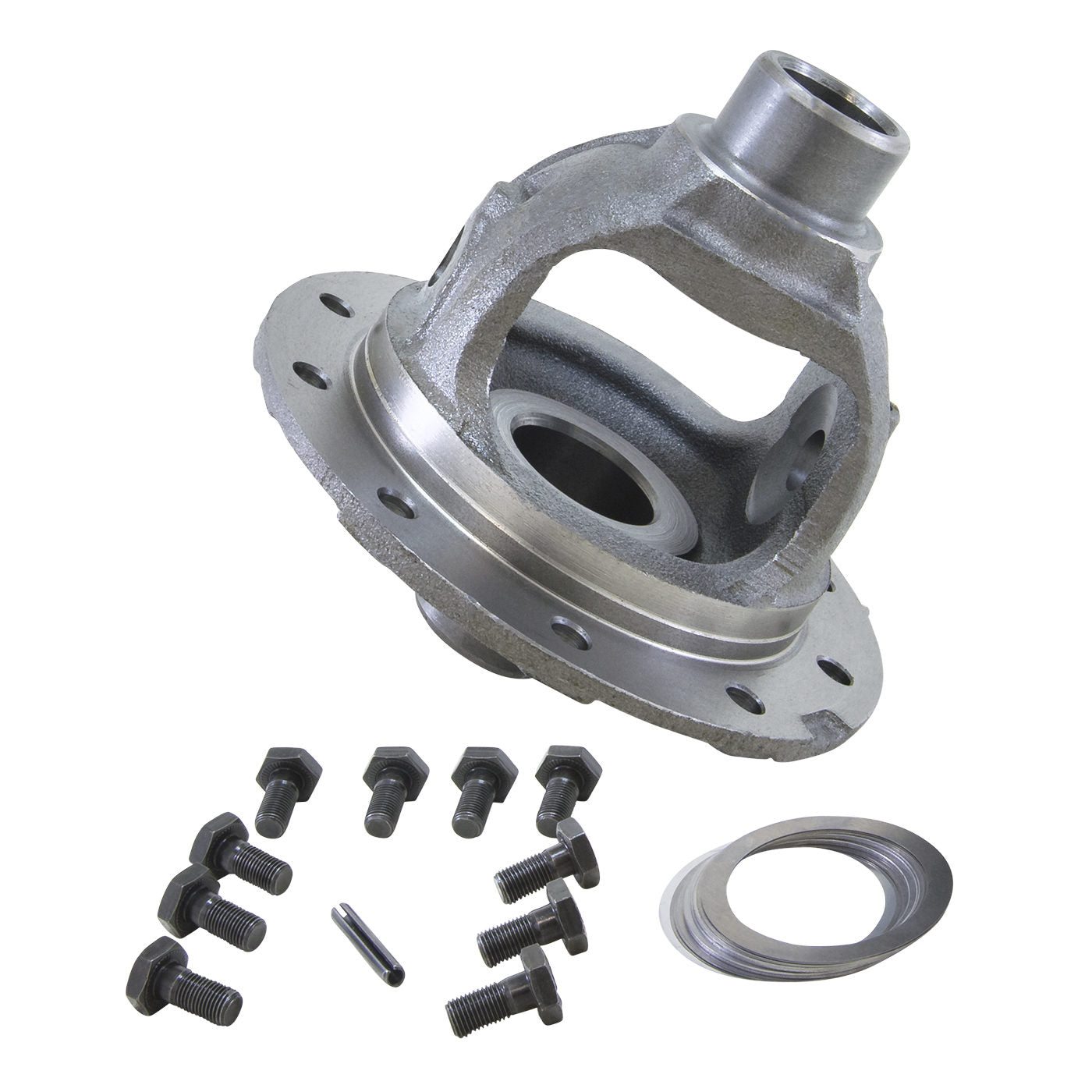

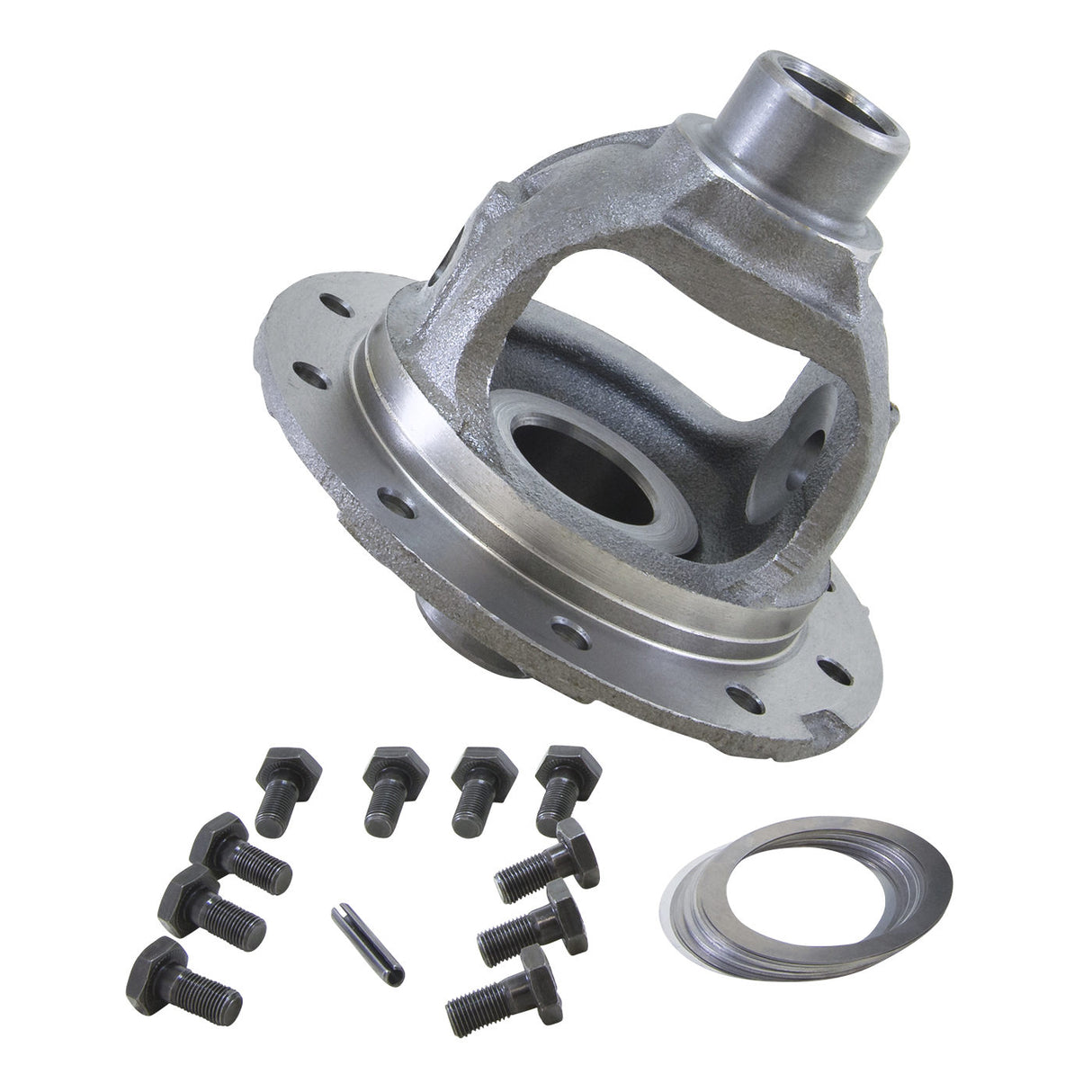

Yukon replacement standard open carrier case for Dana 30, 3.73 & up, bare. Includes carrier shims, roll pin, ring gear bolts and a cover gasket.

If buying this case for a D30 JK front, you will need to also buy spider gear set Ypkd30-S-27. Yukon Gear & Axle manufactures a full line of standard open and positraction limited slip carrier cases for a variety of applications. Each unit is cast and machined to exacting specifications to produce a carrier that provides both high strength and tight tolerances for a long and reliable service life.

Features:

Standard open carrier case Fits Dana Spicer 30 3.73 and up ratio only Does not include spider gears Includes ring gear bolts, carrier shim kit, roll pin, and cover gasket

Details:

• AAP Selling Package Quantity UOM: EA
• Aap uda 12: EA
• Aap uda 22: 1
• Axle Shaft Spline Quantity: 27
• Cover Bolt Quantity: 0
• Material: Steel
• Type: Non Locking

2007-2017 Jeep JK Wrangler spider gears do not fit this carrier. Reqires early Dana 30 spider gear set ( Ypkd30-S-27 ).

Fitment Notes:

• Dana 30
• Bare Standard Open Carrier Case
• 3.73 And Up
• Incl. Carrier Shims
• Roll Pinion
• Ring Gear Bolts
• Cover Gasket
