Yukon Gear YA WAK-003 - Chromoly Rear Axle Kit Dana 35 Jeep JL Non-Rubicon 29 Spline 2 Sides D35 JL Non-Rubicon (Drz) Small Bearing 4340 Rear Axle Kit 32.3 Inch Right Hand & Left Hand W/ Bearings
Yukon performance axles are built with high-tensile strength 4340 chromoly, use superior production methods that include cold roll formed splines, and feature advanced heat treating to create an axle of unmatched quality and durability. Yukon high-performance axles are built with high-tensile strength 4340 chromoly, use superior production methods that include cold roll formed splines, and feature advanced induction coil heat treating to create an axle of unmatched quality and durability.
Features:

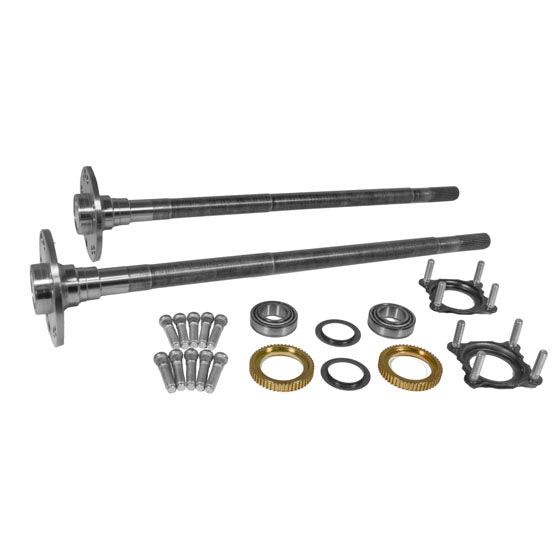

Fits Dana 35 differential 29 spline LH and RH axle shafts measure 32.3 long For both sides Heavy duty 4340 chromoly construction Includes two axle shafts, axle bearings, seals, bearing retainers, wheel studs, ABS ring, and dust shield
Details:
- AAP Selling Package Quantity UOM: EA
- ABS Tone Ring Included: Yes
- Aap uda 12: EA
- Aap uda 22: 1
- Axle Shaft Seal Included: Yes
- Inboard Spline Quantity: 29
- Shaft Length: 32.3 Inch
- Shaft Material: 4340 Nickel Chromoly Steel
Fits with Axle Code DRZ = D35/ M200 Rear.
- Both Left & Right Axles = 32.3 inch Long
- Small Bearing (Set10) Axle = 1.562 inch ID / 2.875 inch OD Bearing
- Double Drilled Flange 5 x 5 inch & 5 x 5.5 inch Bolt Pattern
Fitment Notes:
- Dana 35 (200mm DRZ) JL Rear
- 4340 Chromoly Axle Kit (Both Sides)
- 29 Spline
- 32.3 inch. Long
- Includes 2.875 inch. OD Axle Bearings, Seals, Retainers, Studs, and ABS Rings
