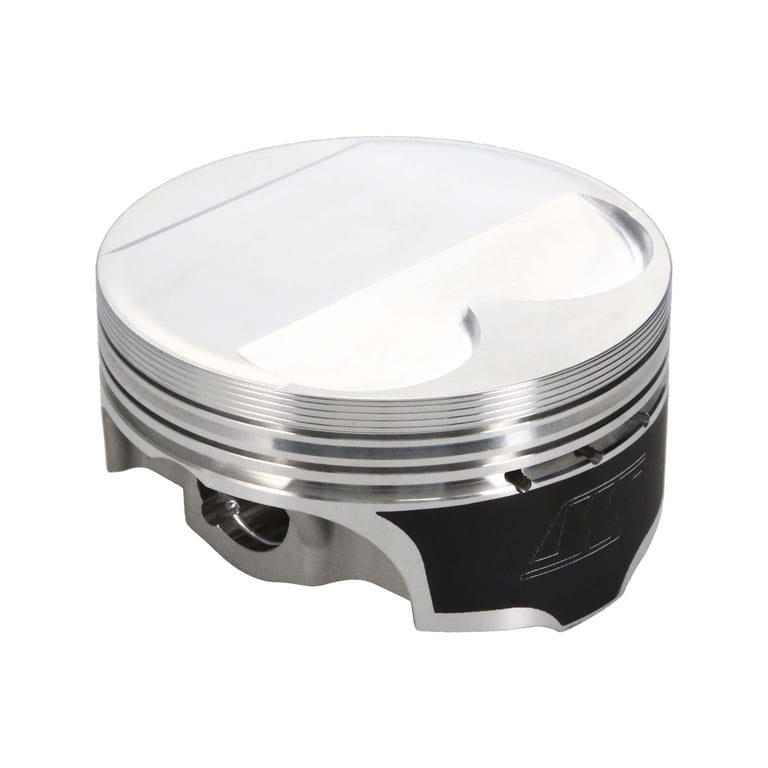

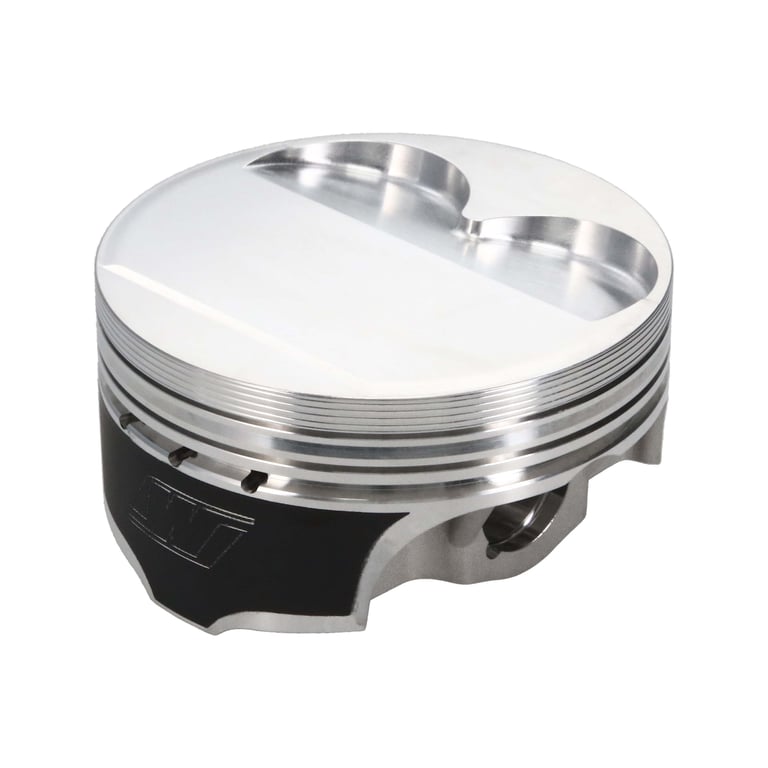

Wiseco K695M955AP-3D - Nissan VR38DETT +3.5cc 1.210in x 3.760in HD - 3D Dome 10.5:1 Piston Kit

Wiseco  |  SKU: BJKF-K695M955AP-3D
$1,49999 $1,64999

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Wiseco K695M955AP-3D - Nissan VR38DETT +3.5cc 1.210in x 3.760in HD - 3D Dome 10.5:1 Piston Kit

Wiseco Nissan VR38DETT Piston Set, 95.50 mm Bore, 34.30 mm Compression Height, 0.9055 in. Pin Diameter, Sport Compact, Set of 6.

Professional Series forged racing pistons from Wiseco are no-expense-spared pistons designed for the serious racers and builders. Packed full of custom-level performance and durability features and provided with premium rings, Professional Series pistons are designed and built for use in heavy to severe duty race builds. Remove your limits with Wiseco?s Professional Series.

  • Engineered, forged, and machined in the USA from 2618 aluminum for improved tensile strength
  • ArmorGlide Skirt Coating: seizure resistant, friction reduction, and quieter operation
  • Fully machined crown features
  • Precision ring grooves, anti-detonation groove, and additional ring seal improving features
  • Forced pin oiling
  • Designed and built to withstand heavy to severe duty performance applications
Category Hierarchy: Auto>Pistons>Piston Kits>Sport Compact
Out of Stock Message: Estimated Shipped Date 3-4 Weeks
Title - Web: Professional Nissan VR38DETT Piston Set of 6 - 95.50 mm Bore - 34.30 mm CH, 3.50 CC
Engine Type: ICE
EBAY Category ID: 33623
Assembly Lubricant Included: No
Bore Diameter: 95.5
Bore Diameter: 3.760
Compression Height: 34.3
Compression Height: 1.210
Compression Ratio: 10.5:1
Grade Type: Premium
Oil Ring Thickness: 2.8
Oil Ring Thickness: 0.1102
Oversized: Yes
Oil Spacer Ring Thickness: 0.1
Piston Head Type: Dome
Piston Material: 2618 Aluminum
Piston Pin Incorporated Bearings: Yes
Piston Pin Inside Diameter: 0.6805
Piston Pin Inside Diameter: 17.285
Piston Pin Material: 52100 Steel
Piston Pin Outside Diameter: 0.9055
Piston Pin Outside Diameter: 23
Piston Pin Length: 2.250
Piston Pin Length: 57.15
Ring Material: Gas Nitrided Top, Napier Scraper 2nd, Flex-Vent Style Oil
Second Compression Ring Thickness: 1.2
Second Compression Ring Thickness: 0.0472
Top Compression Ring Thickness: 1
Top Compression Ring Thickness: 0.0394
Product Series: Professional
Bore Diameter: 95.50
Compression Height: 34.30
Piston Volume: 3.50
Piston Material: 2618
Skirt Coating: Yes
Forging Type: Domed
Piston Quantity: 6
Ring Set Included: Yes
Top Compression Ring Thickness: 1
Second Compression Ring Thickness: 1.2
Oil Ring Thickness: 3
Wrist Pin Included: Yes
Wrist Pin Material: 52100
Wrist Pin Style: Floating
Wrist Pin Outer Diameter: 0.9055
Engine Detail: Nissan VR38DETT
Product Type: Engine Piston Set
Engine: VR38DETT
Engine - Web: VR
Make: Nissan
Make - Web: Nissan
Industry: Automotive
Product Market: Sport Compact
