Wiseco K398X1 - Chevy LS Series -3.2cc FT 4.010inch Bore Piston Set

Wiseco  |  SKU: BJKF-K398X1
Sale price $98299 Regular price $1,08129

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

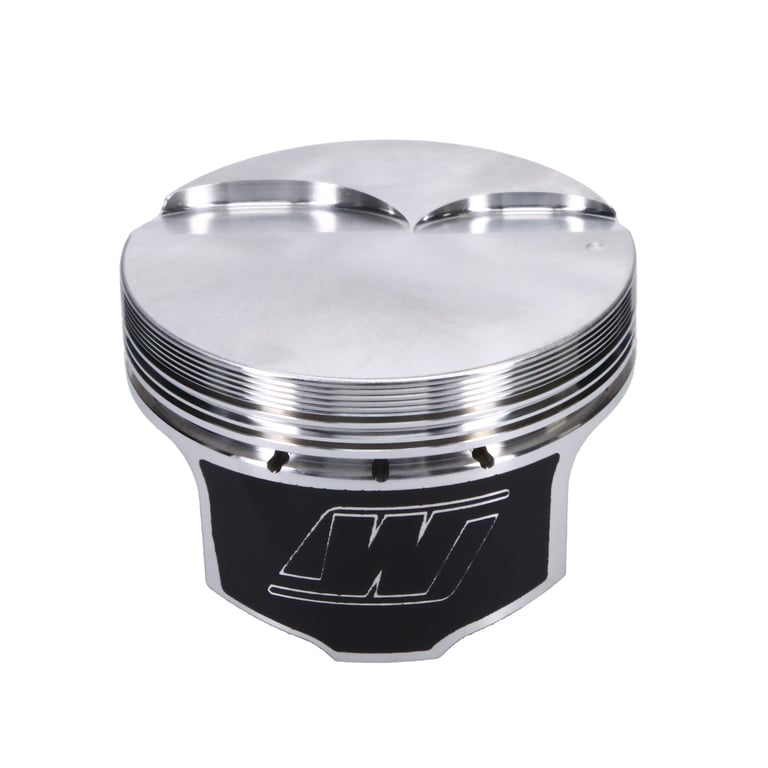

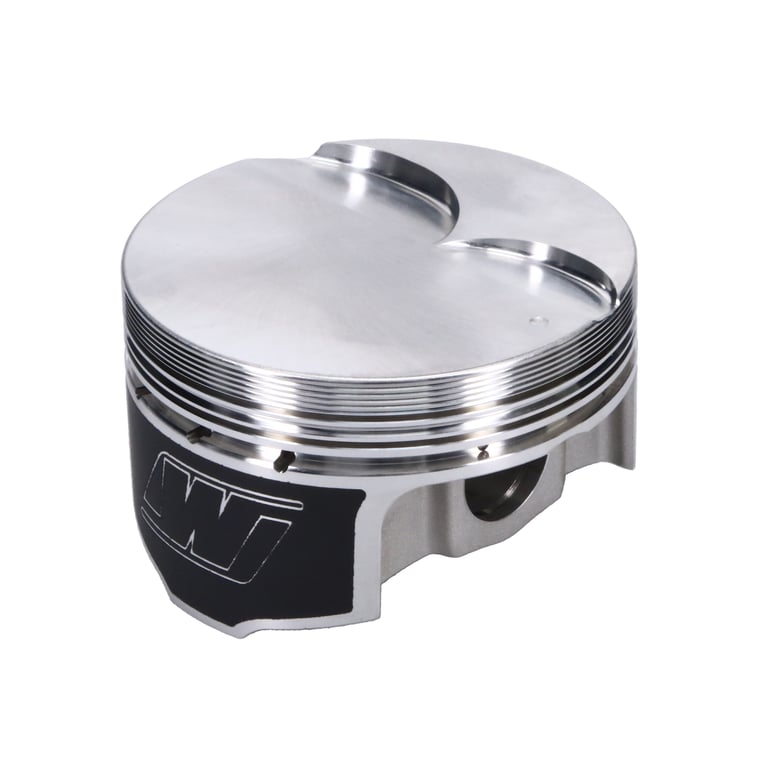

Wiseco K398X1 - Chevy LS Series -3.2cc FT 4.010inch Bore Piston Set

Piston and Ring - Professional Series - Forged - Flat Top - 4.010 in Bore - 1.304 in Compression Height - 1.2 x 1.2 x 3.0 mm Ring Grooves - Minus 3.20 cc - GM LS-Series - Kit

Wiseco Chevrolet LS Piston Set, 4.010 in. Bore, 1.304 in. Compression Height, 0.927 in. Pin Diameter, Professional, Set of 8.

Professional Series forged racing pistons from Wiseco are no-expense-spared pistons designed for the serious racers and builders. Packed full of custom-level performance and durability features and provided with premium rings, Professional Series pistons are designed and built for use in heavy to severe duty race builds. Remove your limits with Wiseco?s Professional Series.

  • Engineered, forged, and machined in the USA from 2618 aluminum for improved tensile strength
  • ArmorGlide Skirt Coating: seizure resistant, friction reduction, and quieter operation
  • Fully machined crown features
  • Precision ring grooves, anti-detonation groove, and additional ring seal improving features
  • Forced pin oiling
  • Designed and built to withstand heavy to severe duty performance applications
Ring Set Included: Yes
Top Compression Ring Thickness: 0.047
Second Compression Ring Thickness: 0.047
Oil Ring Thickness: 3.0
Wrist Pin Included: Yes
Wrist Pin Material: 5115
Wrist Pin Style: Floating
Wrist Pin Outer Diameter: 0.927
Product Type: Engine Piston Set
Engine: LS
Engine - Web: LS
Make: Chevrolet
Make - Web: Chevrolet
Industry: Automotive
Product Market: Domestic
Category Hierarchy: Auto>Pistons>Piston Kits>Domestic>Professional
Out of Stock Message: Estimated Shipped Date 3-4 Weeks
Title - Web: Professional Chevy LS Piston Set of 8 - 4.010 in. Bore - 1.304 .in CH, -3.20 CC
Engine Type: ICE
EBAY Category ID: 33623
Product Series: Professional
Bore Diameter: 4.010
Piston Volume: -3.20
Piston Material: 2618
Skirt Coating: Yes
Forging Type: Strutted
Compression Height: 1.304
Rod Length: 6.125
Stroke: 3.622
Piston Quantity: 8
