Wiseco K0165X6 - Ford Small Block 302 4.060in Bore 1.165in CH -7.50 CC Piston Set

Wiseco  |  SKU: BJKF-K0165X6
$97899 $1,07689

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

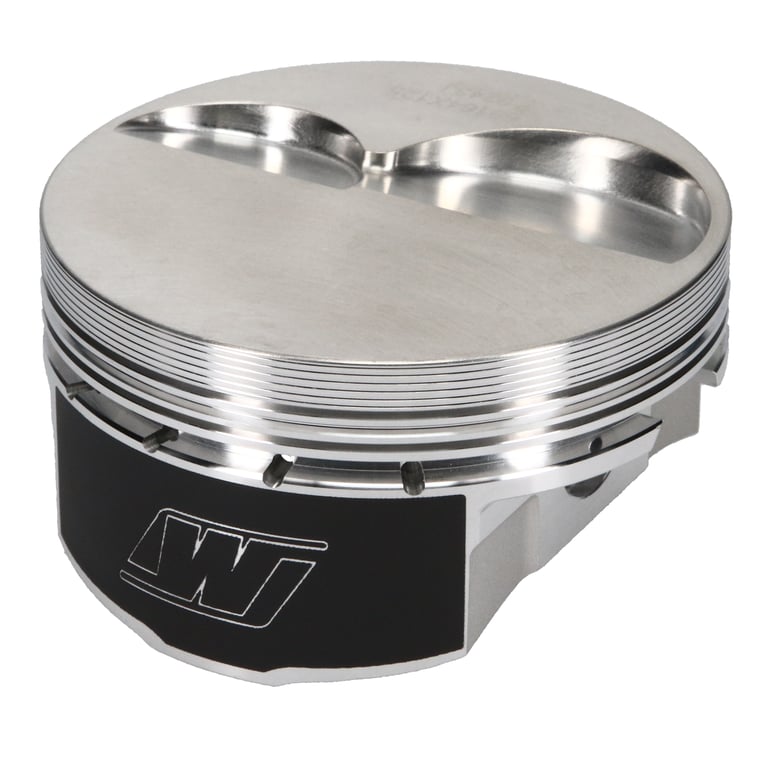

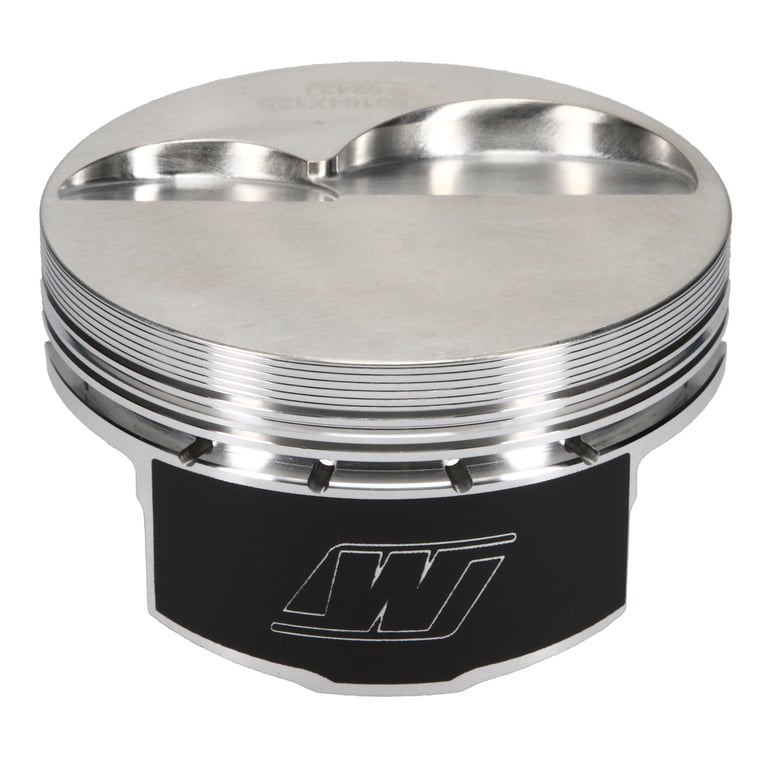

Wiseco K0165X6 - Ford Small Block 302 4.060in Bore 1.165in CH -7.50 CC Piston Set

Wiseco Ford Small Block 302 Piston Set, 4.060 in. Bore, 1.165 in. Compression Height, 0.927 in. Pin Diameter, Professional, Set of 8.

Professional Series forged racing pistons from Wiseco are no-expense-spared pistons designed for the serious racers and builders. Packed full of custom-level performance and durability features and provided with premium rings, Professional Series pistons are designed and built for use in heavy to severe duty race builds. Remove your limits with Wiseco?s Professional Series.

  • Engineered, forged, and machined in the USA from 2618 aluminum for improved tensile strength
  • ArmorGlide Skirt Coating: seizure resistant, friction reduction, and quieter operation
  • Fully machined crown features
  • Precision ring grooves, anti-detonation groove, and additional ring seal improving features
  • Forced pin oiling
  • Designed and built to withstand heavy to severe duty performance applications
Product Series: Professional
Bore Diameter: 4.060
Stroke: 3.250
Rod Length: 5.400
Compression Height: 1.165
Piston Volume: -7.50
Piston Material: 2618
Skirt Coating: Yes
Forging Type: Slab Side
Piston Quantity: 8
Ring Set Included: Yes
Top Compression Ring Thickness: 0.047
Second Compression Ring Thickness: 0.047
Oil Ring Thickness: 3.0
Wrist Pin Included: Yes
Wrist Pin Material: 5115
Wrist Pin Style: Floating
Wrist Pin Outer Diameter: 0.927
Product Type: Engine Piston Set
Engine: Small Block 351
Engine - Web: Small Block
Make: Ford
Make - Web: Ford
Industry: Automotive
Title - Web: Professional Ford Small Block 302 Piston Set of 8 - 4.060 in. Bore - 1.165 .in CH, -7.50 CC
Out of Stock Message: Estimated Shipped Date 3-4 Weeks
Category Hierarchy: Auto>Pistons>Piston Kits>Domestic>Professional
Product Market: Domestic
Engine Type: ICE
EBAY Category ID: 33623
