Wiseco 70017X2 - RED Series - Chevrolet, Small Block, 4.020 in. Bore, Single Piston
Wiseco | SKU:
BJKF-70017X2
Regular price
$000
Unit price
/
Unavailable
AVAILABILITY: This Item Is No Longer Orderable. Contact Us For More Details.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

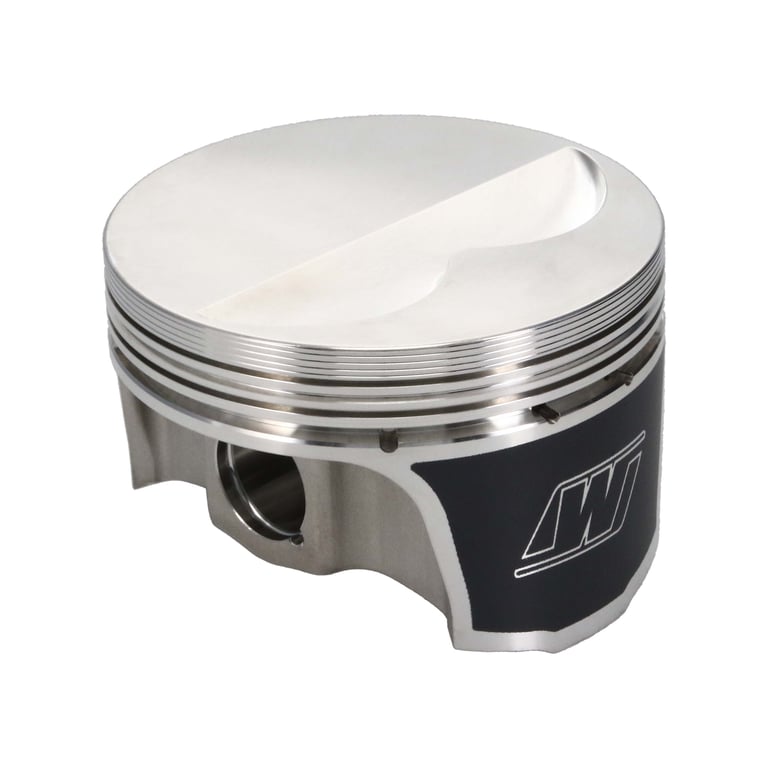

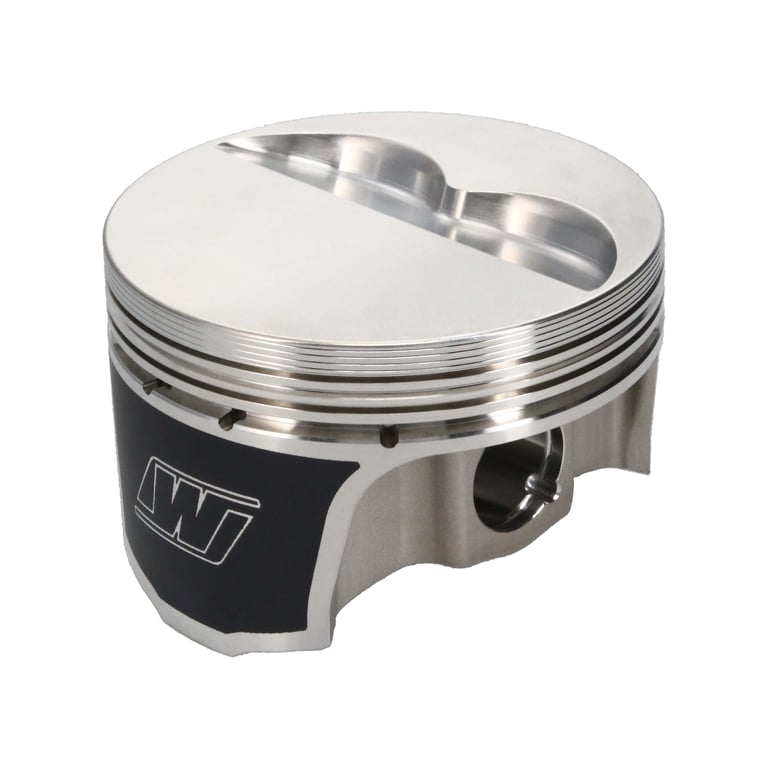

Wiseco 70017X2 - RED Series - Chevrolet, Small Block, 4.020 in. Bore, Single Piston
Wiseco Chevrolet Small Block Piston, 4.020 in. Bore, 1.250 in. Compression Height, 0.927 in. Pin Diameter, RED Series
Appropriately dubbed the RED? series, these forged pistons utilize Race Engineered Design? to offer the strength and durability performance engines need with precision-machined features to provide a competitive edge. RED? series piston kits are available for range of popular, domestic V8 platforms, the cornerstone of racing and performance from drag racing to circle track.
- Engineered, forged, and machined in the USA from 2618 aluminum for tensile strength needed in performance racing and power adder applications
- Dedicated forgings allow for optimized, engine-specific strutted design to maximize strength-to-weight characteristics
- ArmorGlide skirt coating reduces operating friction and noise while also reducing skirt and cylinder wear
- Horizontal slot oiling in pin bores maintain optimal wrist pin and small-end lubrication, critical for long service life
- Accumulator groove helps maintain consistent ring seal and power
- Each part number includes premium rings no need for additional sourcing
Piston Material: 2618
Skirt Coating: Yes
Forging Type: Strutted
Piston Quantity: 1
Ring Set Included: Yes
Top Compression Ring Thickness: 1.00
Second Compression Ring Thickness: 1.20
Oil Ring Thickness: 2.80
Wrist Pin Included: Yes
Wrist Pin Material: 5115
Wrist Pin Style: Floating
Wrist Pin Outer Diameter: 0.927
Product Type: Engine Piston
Engine: Small Block
Engine - Web: Small Block Gen I
Make: Chevrolet
Make - Web: Chevrolet
Industry: Automotive
Product Market: Domestic
Category Hierarchy: Auto>Pistons>Individual Pistons>Domestic>RED Series
Out of Stock Message: Estimated Shipped Date 3-4 Weeks
Title - Web: RED Series Chevy Small Block Piston - 4.020 in. Bore - 1.250 .in CH, -5.70 CC
Engine Type: ICE
EBAY Category ID: 33623
Product Series: RED Series
Bore Diameter: 4.020
Stroke: 3.480
Rod Length: 6.000
Compression Height: 1.250
Piston Volume: -5.70
