Wiseco 6656M85 - Mitsu 4G64 w/4G63 Heads 10.5:1 E85 Piston Shelf Stock

Wiseco  |  SKU: BJKF-6656M85
$24699 $27443

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

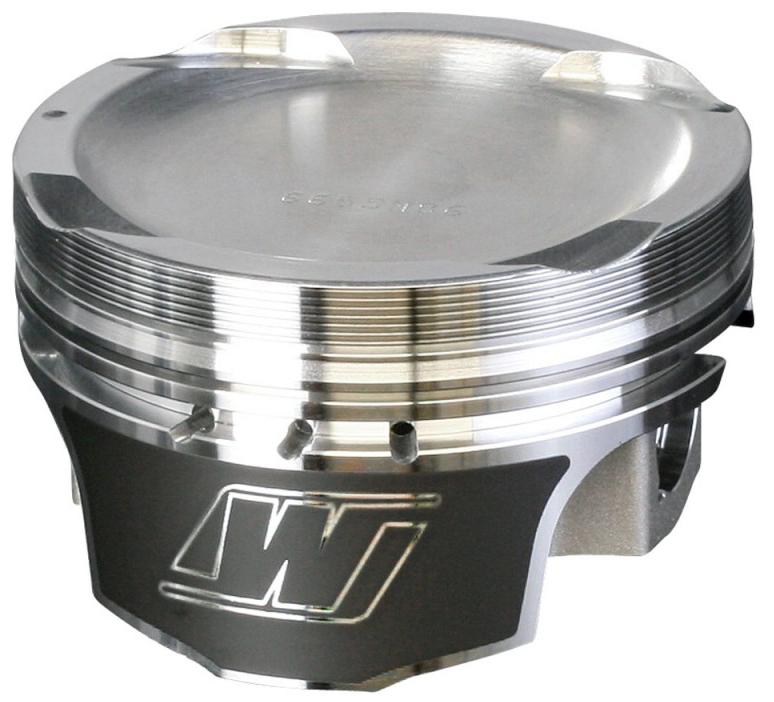

Wiseco 6656M85 - Mitsu 4G64 w/4G63 Heads 10.5:1 E85 Piston Shelf Stock

Wiseco Mitsubishi 4G63 Piston, 3.346 in. Bore, 1.378 in. Compression Height, 0.866 in. Pin Diameter, Professional, Set of 1.

Professional Series forged racing pistons from Wiseco are no-expense-spared pistons designed for the serious racers and builders. Packed full of custom-level performance and durability features and provided with premium rings, Professional Series pistons are designed and built for use in heavy to severe duty race builds. Remove your limits with Wiseco?s Professional Series.

    • Engineered, forged, and machined in the USA from 2618 aluminum for improved tensile strength
    • ArmorGlide? Skirt Coating: seizure resistant, friction reduction, and quieter operation
    • Fully machined crown features
    • Precision ring grooves, anti-detonation groove, and additional ring seal improving features
    • Forced pin oiling
    • Designed and built to withstand heavy to severe duty performance applications
Bore Diameter: 3.346
Category Hierarchy: Auto>Pistons>Individual Pistons>Sport Compact
Compression Height: 1.378
Cylinder Head: 4G63
EBAY Category ID: 33623
Engine - Web: 4G63
Engine Type: ICE
Engine: 4G63
Forging Type: Strutted
Industry: Automotive
Make - Web: Mitsubishi
Make: Mitsubishi
Oil Ring Tension: Standard
Oil Ring Thickness: 2.80
Out of Stock Message: Estimated Shipped Date 3-4 Weeks
Piston Material: 2618
Piston Quantity: 1
Piston Volume: -4.50
Product Market: Sport Compact
Product Series: Professional
Product Type: Engine Piston
Ring Quantity: 1
Ring Set Included: Yes
Ring Set Part Number: 8500XX
Rod Length: 5.906
Second Compression Ring Thickness: 1.20
Second Ring Material: Ductile Iron
Skirt Coating: Yes
Stroke: 3.465
Third Ring Material: Stainless Steel
Title - Web: Professional Piston Mitsubishi 4G63 - 3.346 in. Bore - 1.378 in. CH, -4.50 CC
Top Compression Ring Thickness: 1.00
Top Ring Material: Stainless Steel
Wrist Pin Included: Yes
Wrist Pin Material: 9310
Wrist Pin Outer Diameter: 0.866
Wrist Pin Part Number: S722
Wrist Pin Quantity: 1
Wrist Pin Retainer Included: Yes
Wrist Pin Retainer Material: Chrome Silicon
Wrist Pin Retainer Part Number: W5590
Wrist Pin Retainer Quantity: 2
Wrist Pin Retainer Style: Wire Lock
Wrist Pin Retainer Thickness: 0.063
Wrist Pin Style: Floating
