Wiseco 6586M895 - Nissan KA24 Dished -22cc 9:1 89.5inchBore Piston Shelf Stock

Wiseco  |  SKU: BJKF-6586M895
$14499 $15949

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

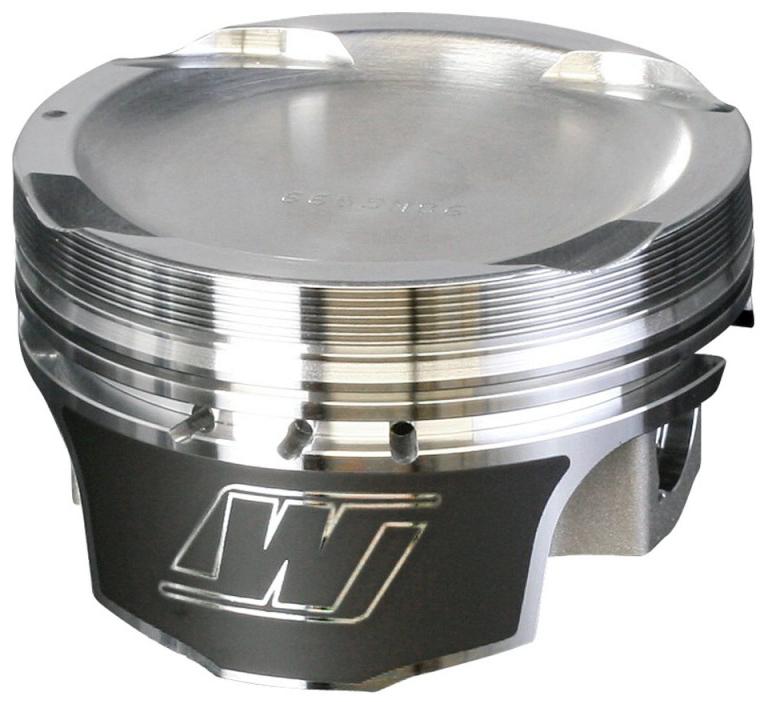

Wiseco 6586M895 - Nissan KA24 Dished -22cc 9:1 89.5inchBore Piston Shelf Stock

Wiseco Nissan KA24DE Piston, 3.524 in. Bore, 1.337 in. Compression Height, 0.827 in. Pin Diameter, Professional, Set of 1.

Professional Series forged racing pistons from Wiseco are no-expense-spared pistons designed for the serious racers and builders. Packed full of custom-level performance and durability features and provided with premium rings, Professional Series pistons are designed and built for use in heavy to severe duty race builds. Remove your limits with Wiseco?s Professional Series.

  • Engineered, forged, and machined in the USA from 2618 aluminum for improved tensile strength
  • ArmorGlide Skirt Coating: seizure resistant, friction reduction, and quieter operation
  • Fully machined crown features
  • Precision ring grooves, anti-detonation groove, and additional ring seal improving features
  • Forced pin oiling
  • Designed and built to withstand heavy to severe duty performance applications
Second Ring Material: Ductile Iron
Oil Ring Thickness: 2.80
Oil Ring Tension: Standard
Third Ring Material: Stainless Steel
Wrist Pin Included: Yes
Wrist Pin Part Number: S624
Wrist Pin Material: 5115
Wrist Pin Style: Floating
Wrist Pin Outer Diameter: 0.827
Wrist Pin Retainer Included: Yes
Wrist Pin Retainer Part Number: CW21
Wrist Pin Retainer Quantity: 2
Wrist Pin Retainer Style: Wire Lock
Wrist Pin Retainer Material: Chrome Silicon
Wrist Pin Retainer Thickness: 0.049
Product Type: Engine Piston
Engine: KA24DE
Engine - Web: KA24DE
Make: Nissan
Make - Web: Nissan
Industry: Automotive
Product Market: Sport Compact
Category Hierarchy: Auto>Pistons>Individual Pistons>Sport Compact
Out of Stock Message: Estimated Shipped Date 3-4 Weeks
Title - Web: Professional Piston Nissan KA24DE - 3.524 in. Bore - 1.337 in. CH, -22.00 CC
Engine Type: ICE
EBAY Category ID: 33623
Product Series: Professional
Bore Diameter: 3.524
Stroke: 6.496
Rod Length: 3.779
Compression Height: 1.337
Cylinder Head: KA24DE
Piston Volume: -22.00
Piston Material: 2618
Skirt Coating: Yes
Forging Type: Full Round
Piston Quantity: 1
Wrist Pin Quantity: 1
Ring Set Included: Yes
Ring Set Part Number: 8950XX
Ring Quantity: 1
Top Compression Ring Thickness: 1.00
Top Ring Material: Stainless Steel
Second Compression Ring Thickness: 1.20
