Wiseco 6566M82 - Acura 4v DOME +5cc STRUTTED 82.0MM Piston Shelf Stock

Wiseco  |  SKU: BJKF-6566M82
$20199 $22443

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

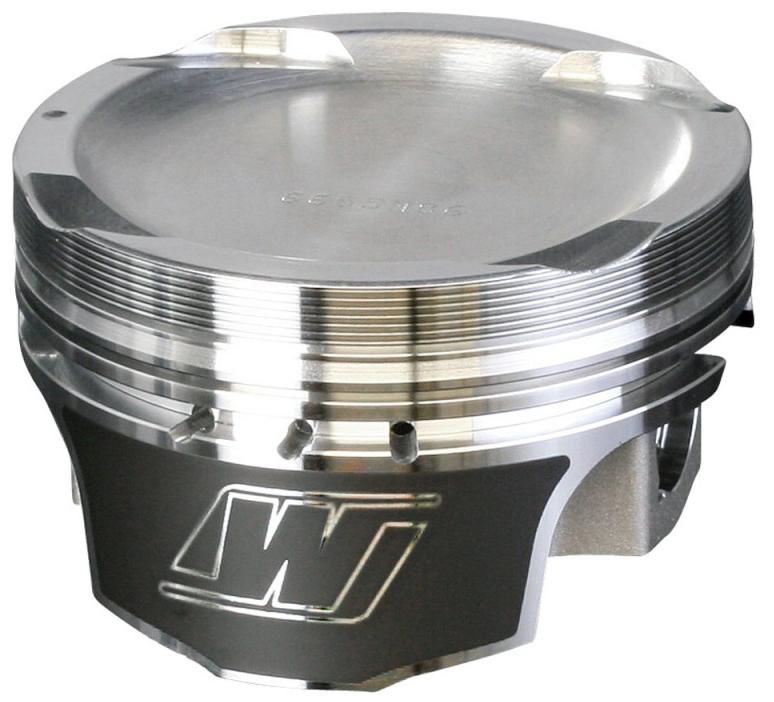

Wiseco 6566M82 - Acura 4v DOME +5cc STRUTTED 82.0MM Piston Shelf Stock

Wiseco Honda B18 Piston, 3.228 in. Bore, 1.185 in. Compression Height, 0.827 in. Pin Diameter, Professional, Set of 1.

Professional Series forged racing pistons from Wiseco are no-expense-spared pistons designed for the serious racers and builders. Packed full of custom-level performance and durability features and provided with premium rings, Professional Series pistons are designed and built for use in heavy to severe duty race builds. Remove your limits with Wiseco?s Professional Series.

    • Engineered, forged, and machined in the USA from 2618 aluminum for improved tensile strength
    • ArmorGlide? Skirt Coating: seizure resistant, friction reduction, and quieter operation
    • Fully machined crown features
    • Precision ring grooves, anti-detonation groove, and additional ring seal improving features
    • Forced pin oiling
    • Designed and built to withstand heavy to severe duty performance applications
Bore Diameter: 3.228
Category Hierarchy: Auto>Pistons>Individual Pistons>Sport Compact
Compression Height: 1.185
Cylinder Head: B18
EBAY Category ID: 33623
Engine - Web: B18
Engine Type: ICE
Engine: B18
Forging Type: Strutted
Industry: Automotive
Make - Web: Honda
Make: Honda
Oil Ring Tension: Standard
Oil Ring Thickness: 2.80
Out of Stock Message: Estimated Shipped Date 3-4 Weeks
Piston Material: 2618
Piston Quantity: 1
Piston Volume: 5.00
Product Market: Sport Compact
Product Series: Professional
Product Type: Engine Piston
Ring Quantity: 1
Ring Set Included: Yes
Ring Set Part Number: 8200XX
Rod Length: 3.047
Second Compression Ring Thickness: 1.20
Second Ring Material: Ductile Iron
Skirt Coating: Yes
Stroke: 5.287
Third Ring Material: Stainless Steel
Title - Web: Professional Piston Honda B18 - 3.228 in. Bore - 1.185 in. CH, 5.00 CC
Top Compression Ring Thickness: 1.00
Top Ring Material: Stainless Steel
Wrist Pin Included: Yes
Wrist Pin Material: 5115
Wrist Pin Outer Diameter: 0.827
Wrist Pin Part Number: S656
Wrist Pin Quantity: 1
Wrist Pin Retainer Included: Yes
Wrist Pin Retainer Material: Chrome Silicon
Wrist Pin Retainer Part Number: CW21
Wrist Pin Retainer Quantity: 2
Wrist Pin Retainer Style: Wire Lock
Wrist Pin Retainer Thickness: 0.049
Wrist Pin Style: Floating
