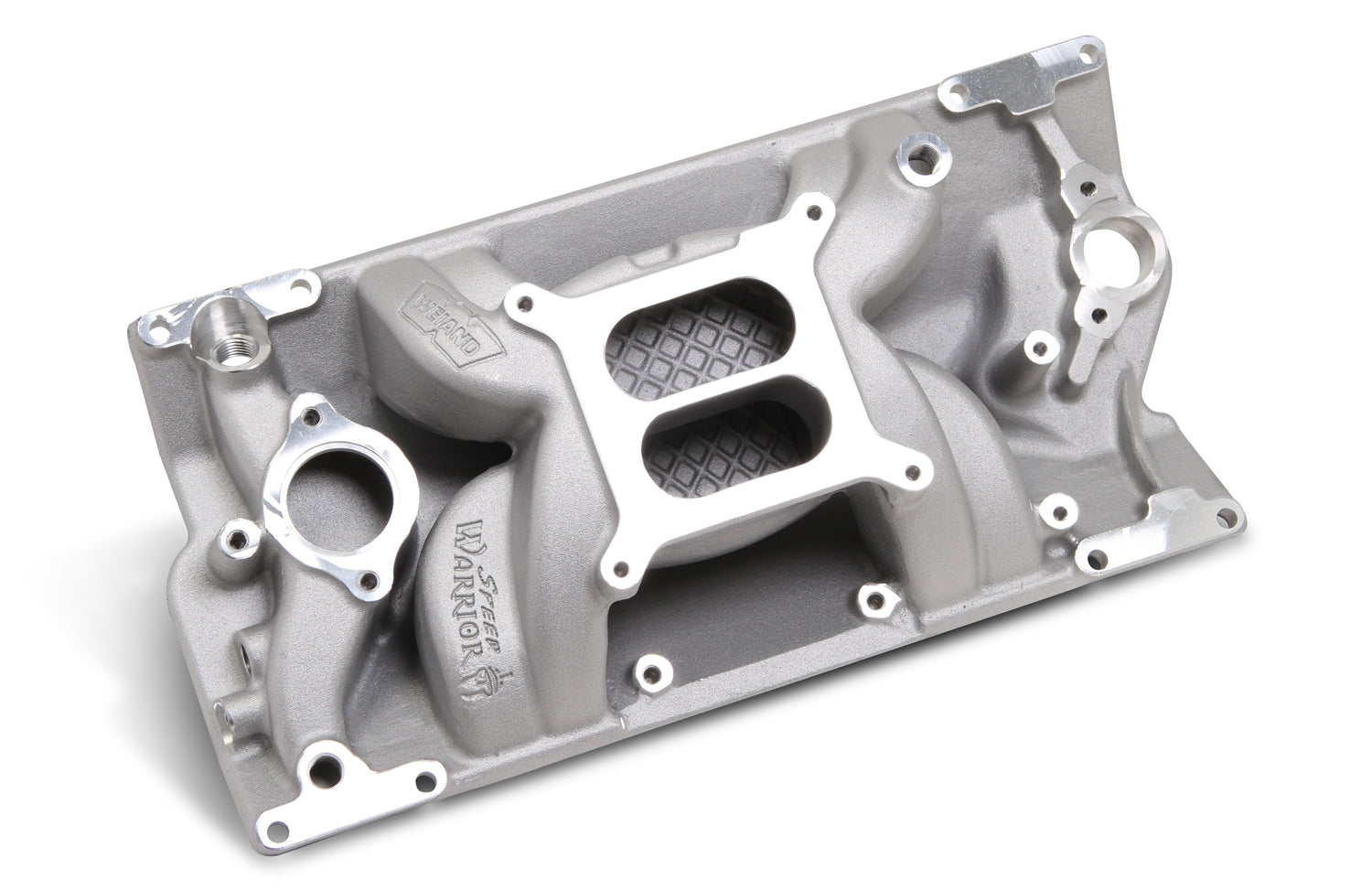

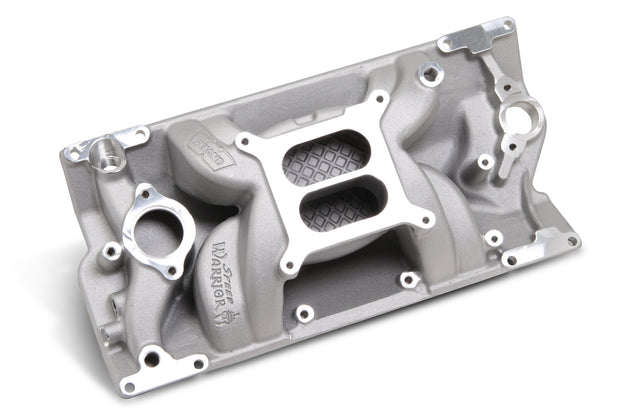

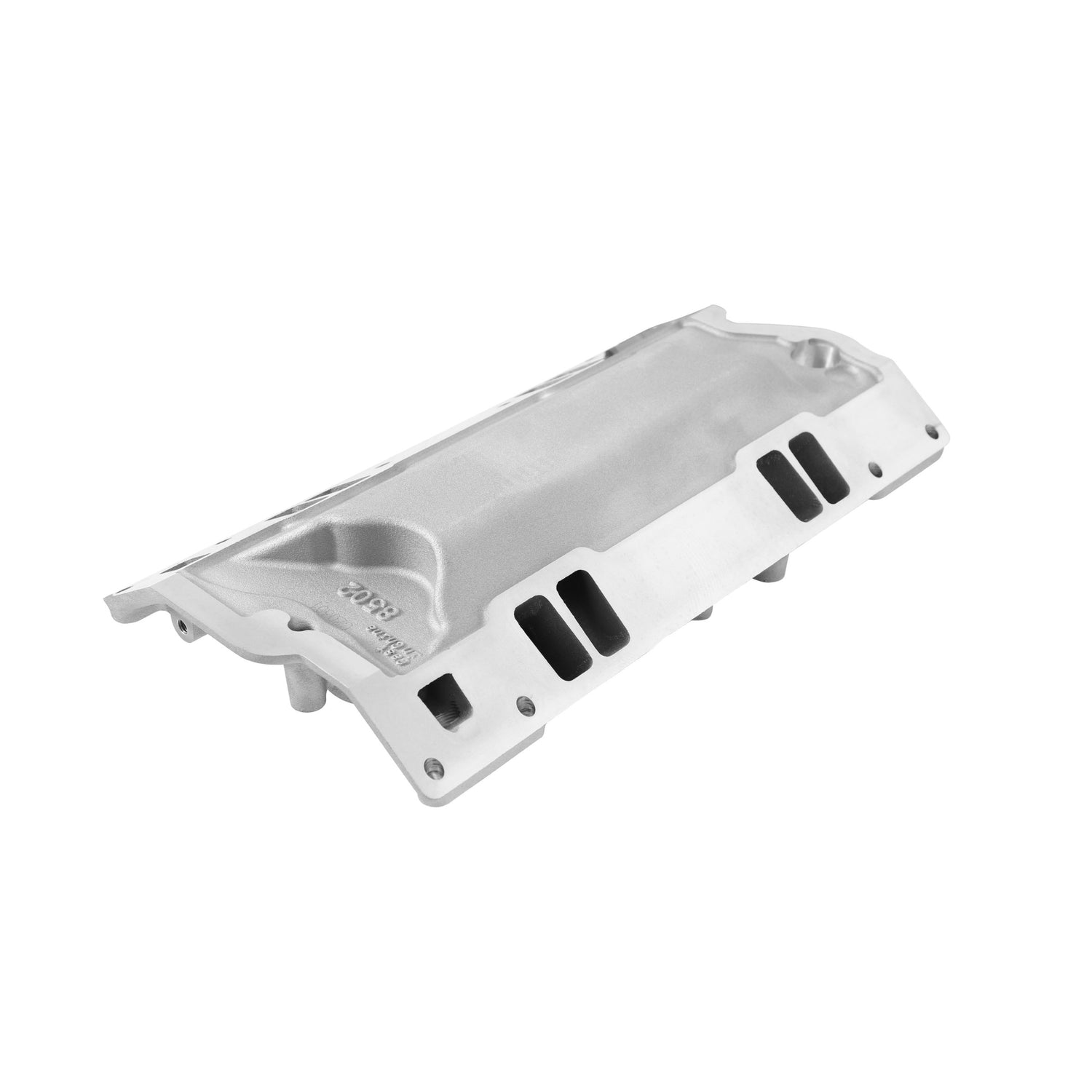

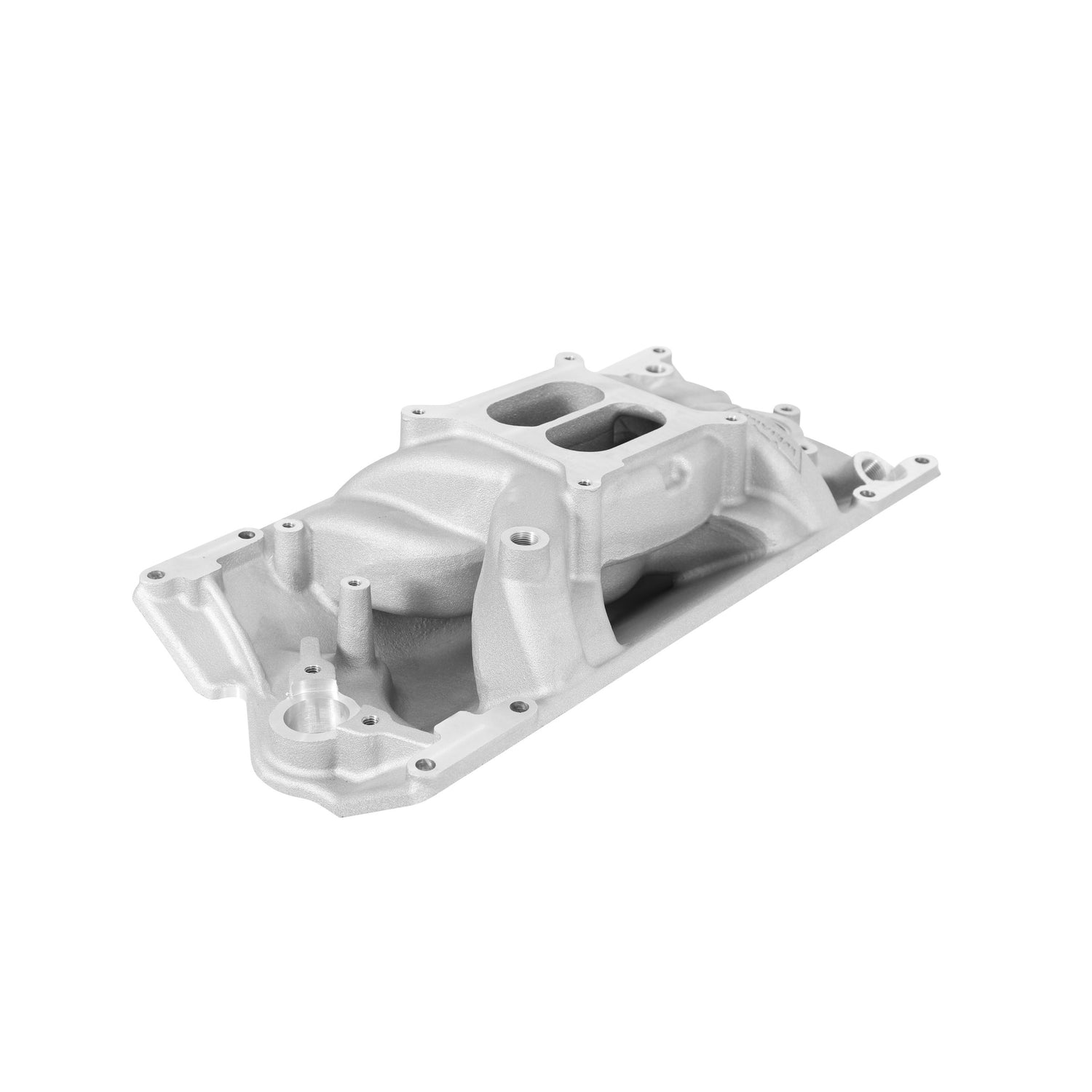

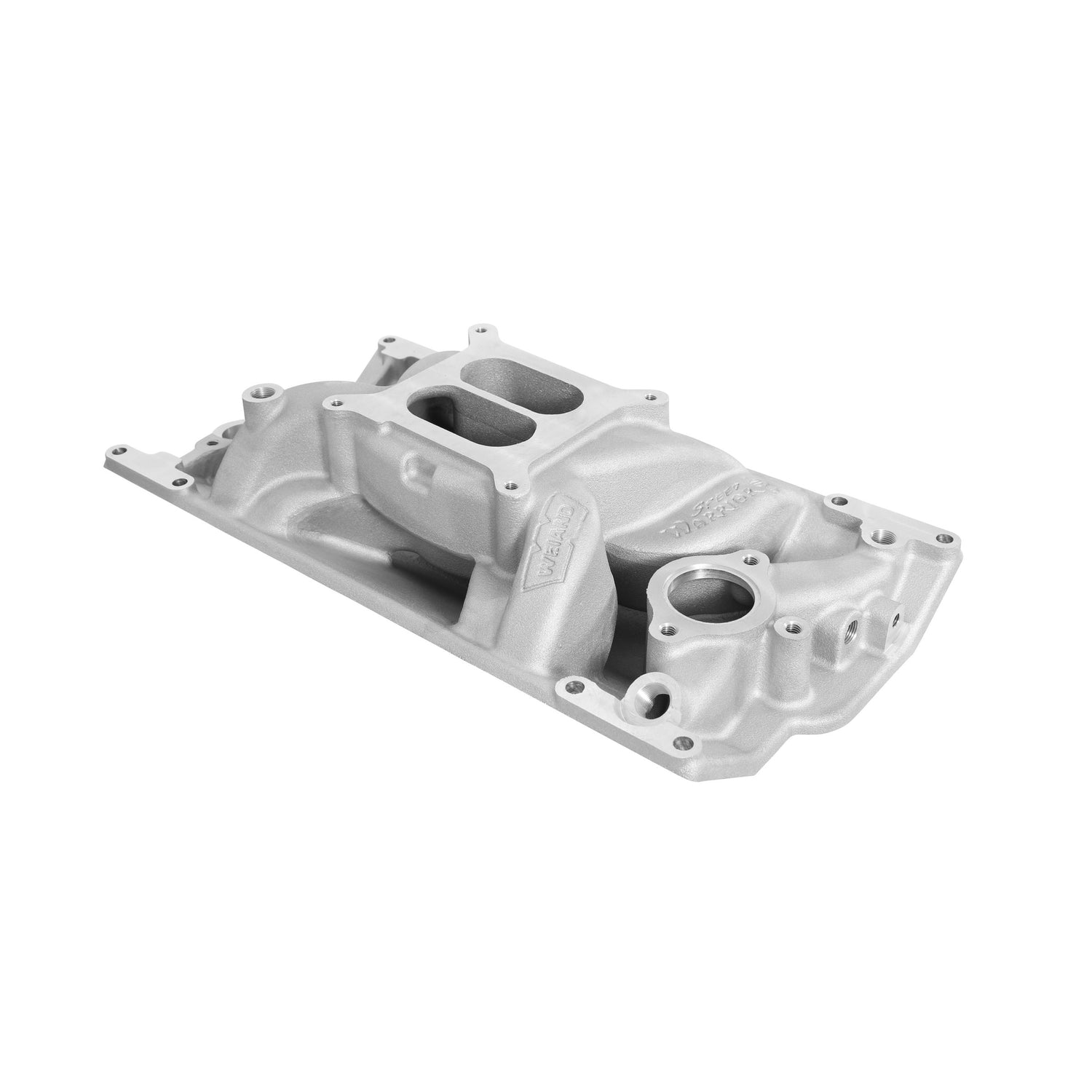

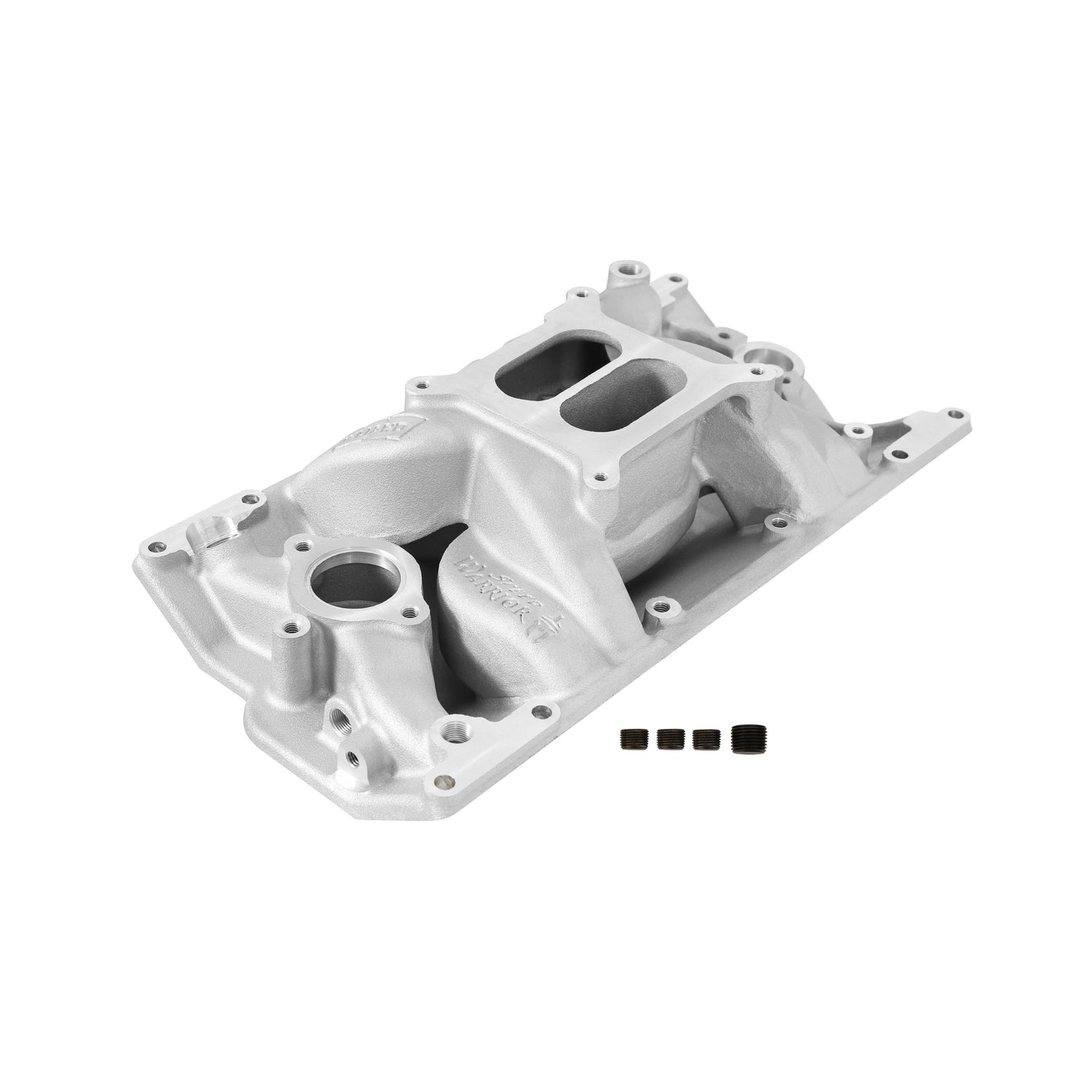

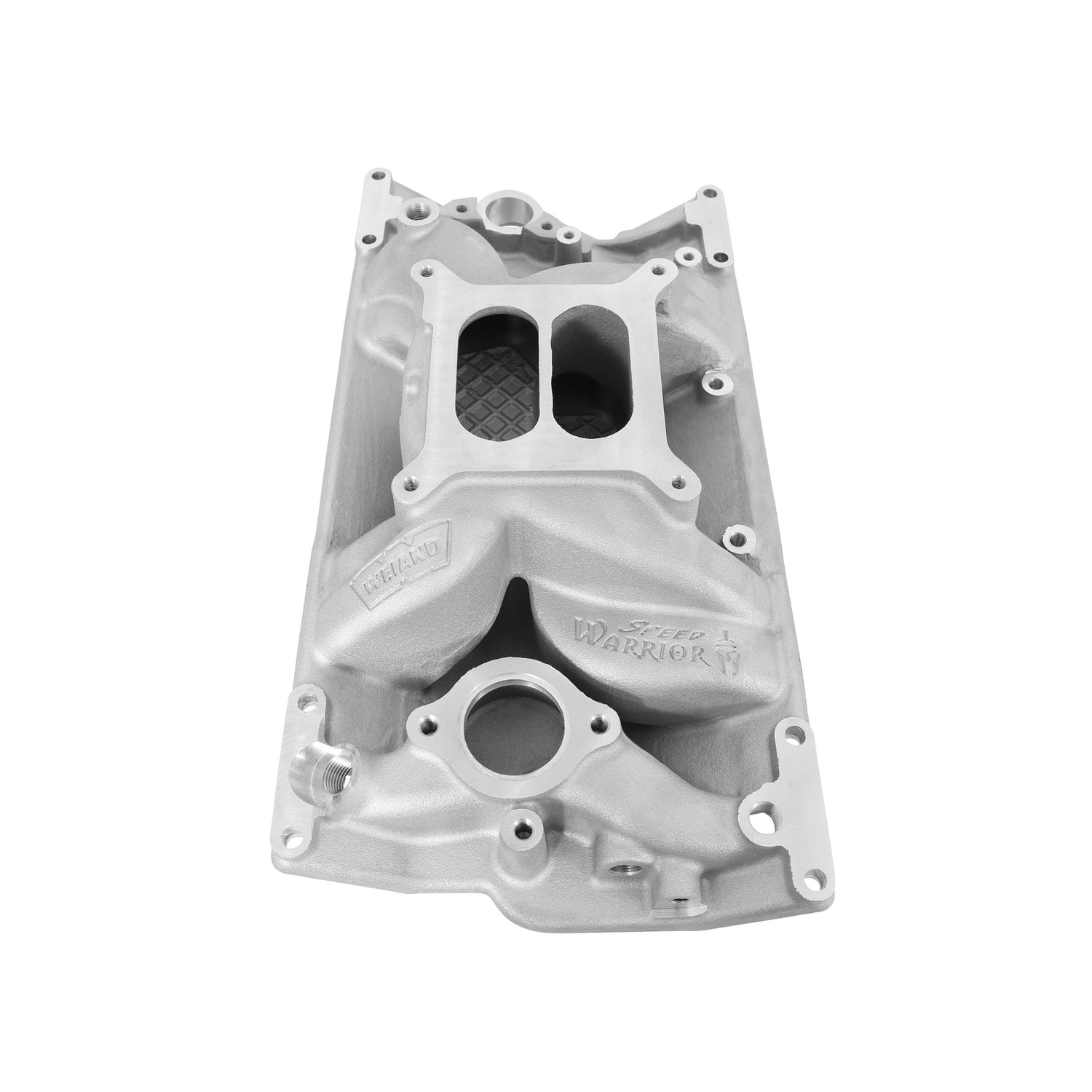

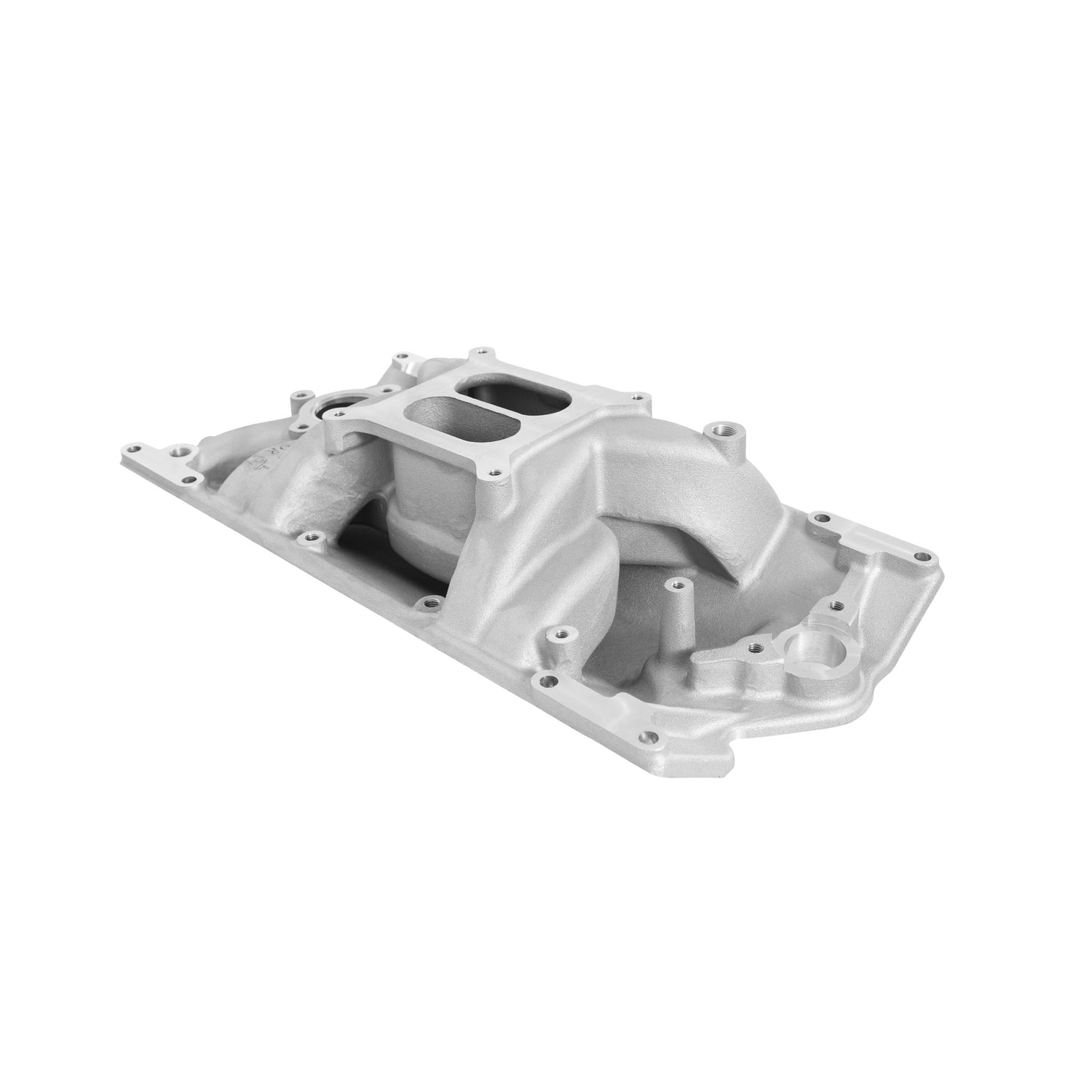

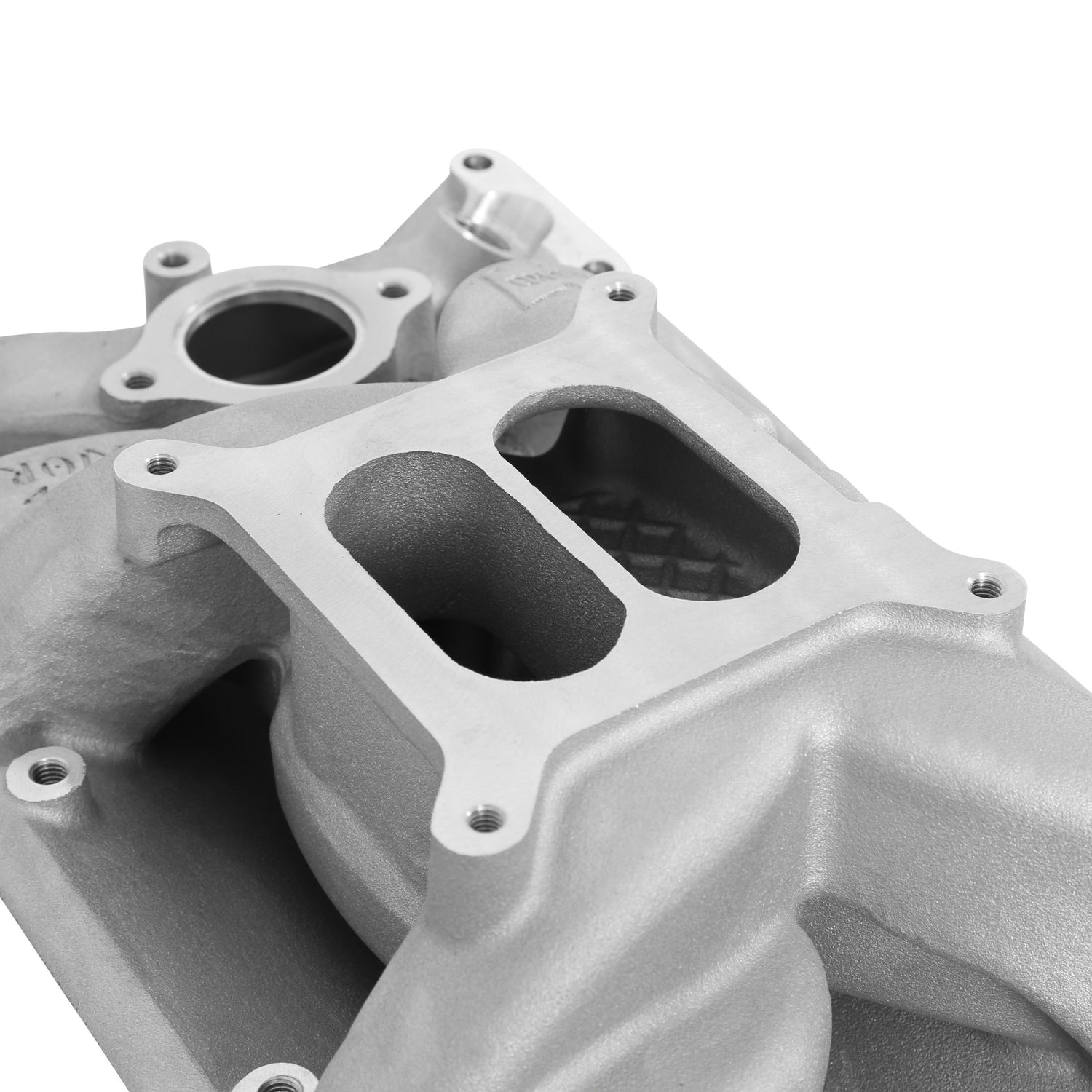

Weiand 8502 - Speed Warrior™ Intake Manifold

Weiand 8502 - Speed Warrior™ Intake Manifold

Intake Manifold - Speed Warrior - Square Bore - Dual Plane - Aluminum - Natural - Vortec - Small Block Chevy - Each

Speed Warrior™ Intake Manifold; Upper; Power Band 1500-6700 RPM; HighRise; w/Vortec Cylinder Heads; Square Bore Carb; 4.19 in. Front H/5.27 in. Rear Height; Non-EGR; Satin Finish;

The Weiand Speed Warrior features long, separated runners for bottom-end and mid-range power, plus a special runner design and larger plenum to flow the air needed for high-rpm horsepower. All of this usable power makes this intake perfect for your street and strip hot rod! * Utilizes late model alternator an A/C bracket mounting provisions. Has additional vacuum tap off of runner. Recommended intake manifold gasket - Mr Gasket #'s 5821 or 101G

• Precision CNC Machining
• High Rise/Dual Plane Design
• Isolated Runners To Reduce Intake Charge Heating
• Promotes Airflow Between Hot Engine and Intake Plenum
• Square Bore Carburetor Flange
• 1500-6700 RPM Power Band
• Height Front 4.19 in.; Rear 5.27 in.
• Port Size 2.05 in. Height x 1.02 in. Width
• Permanent Mold Casting
