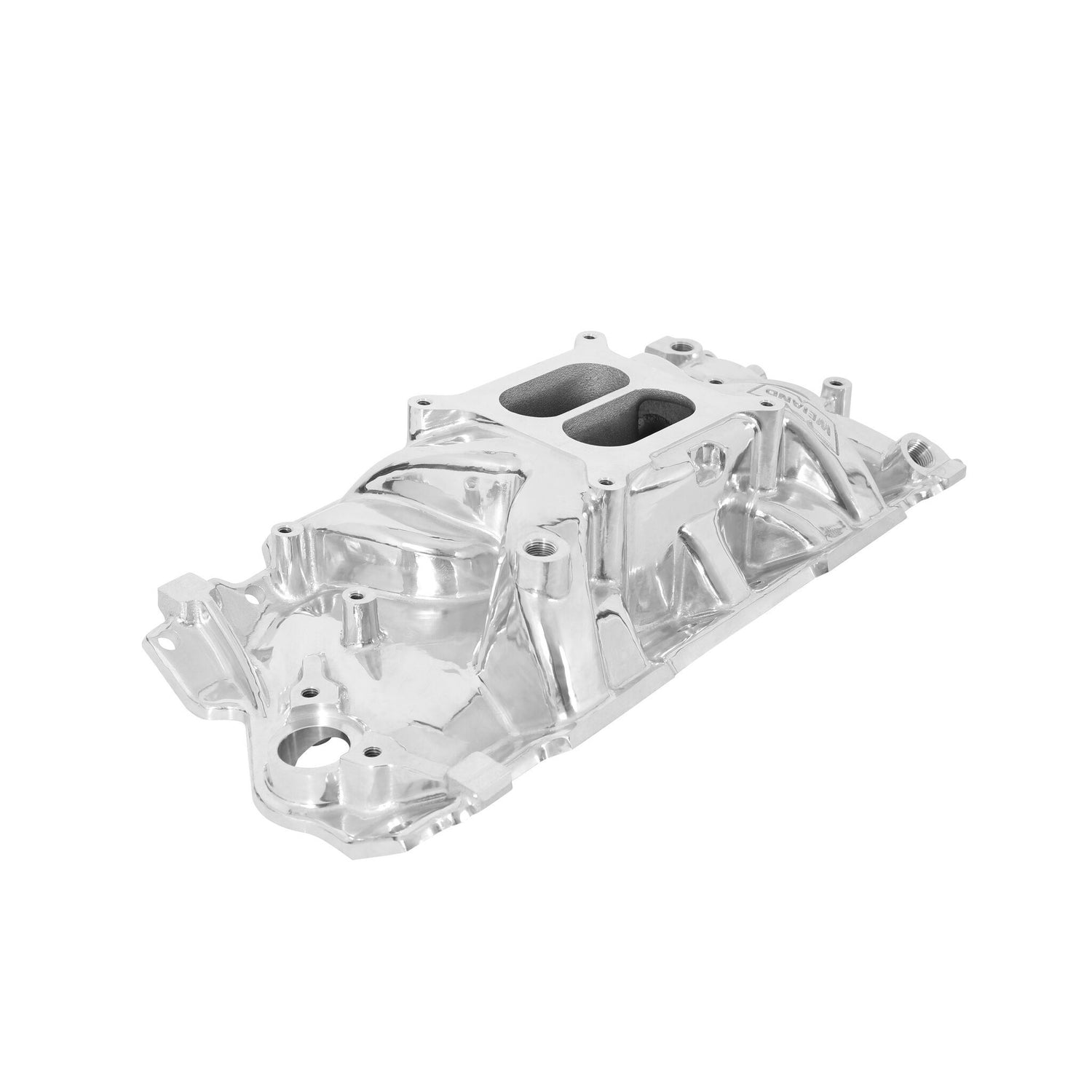

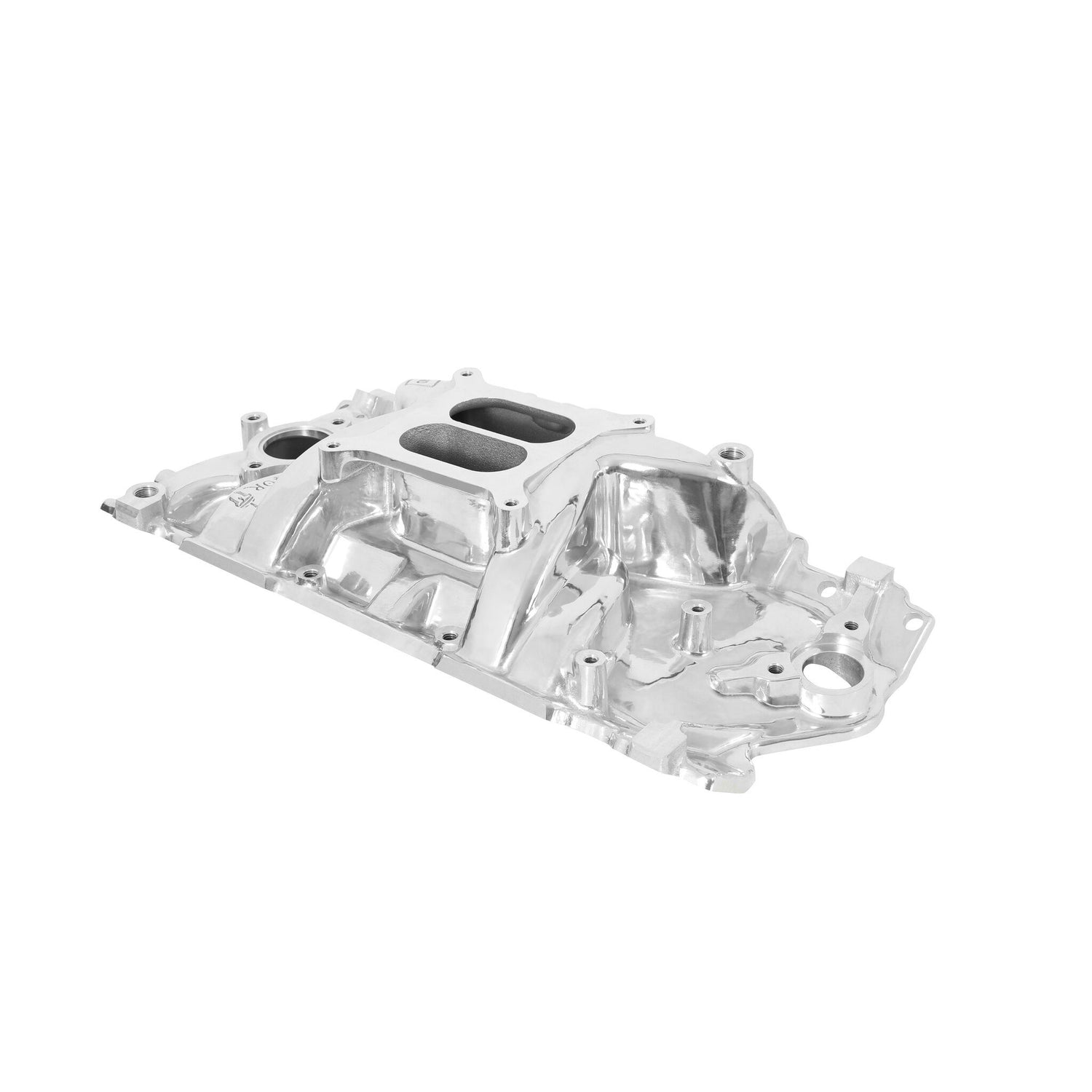

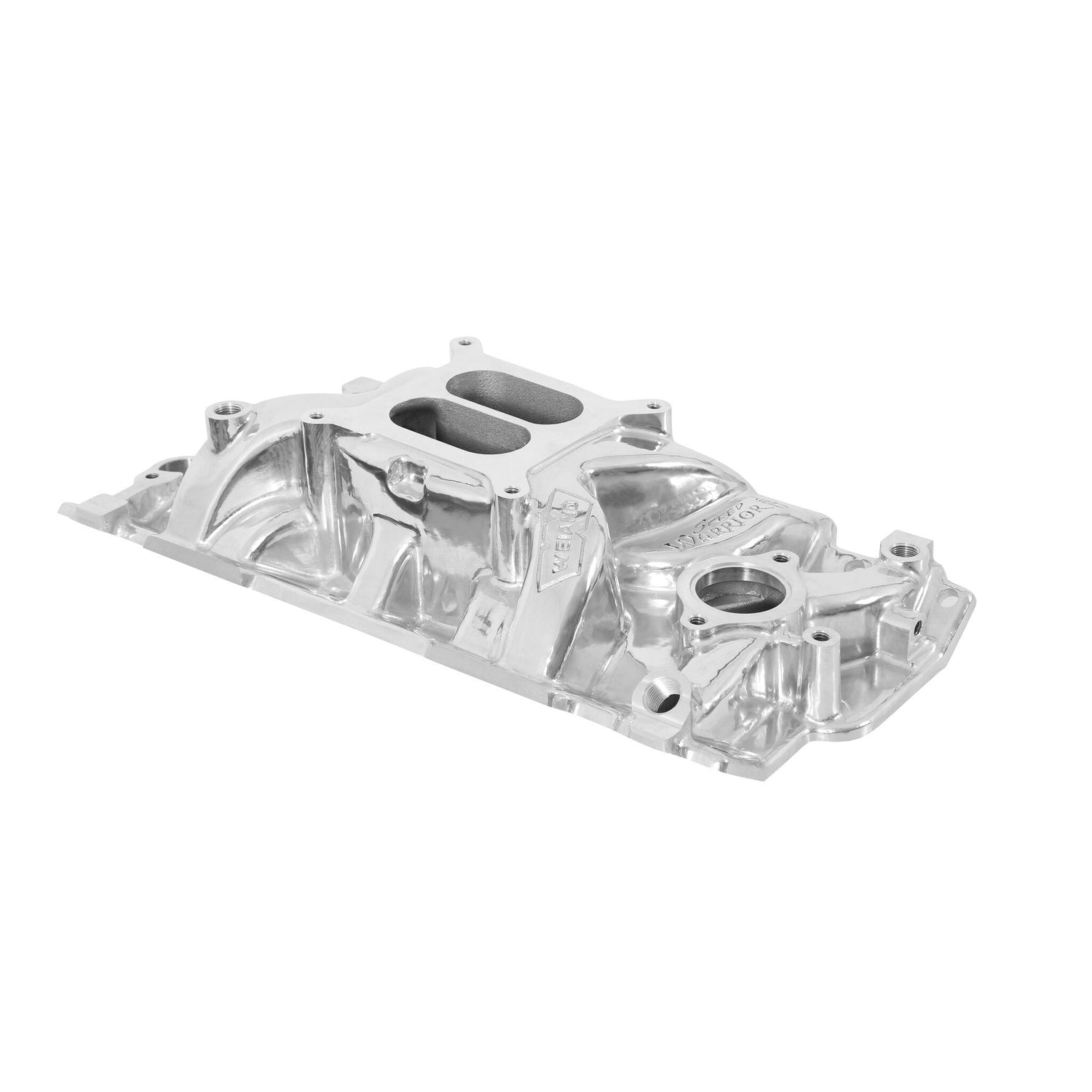

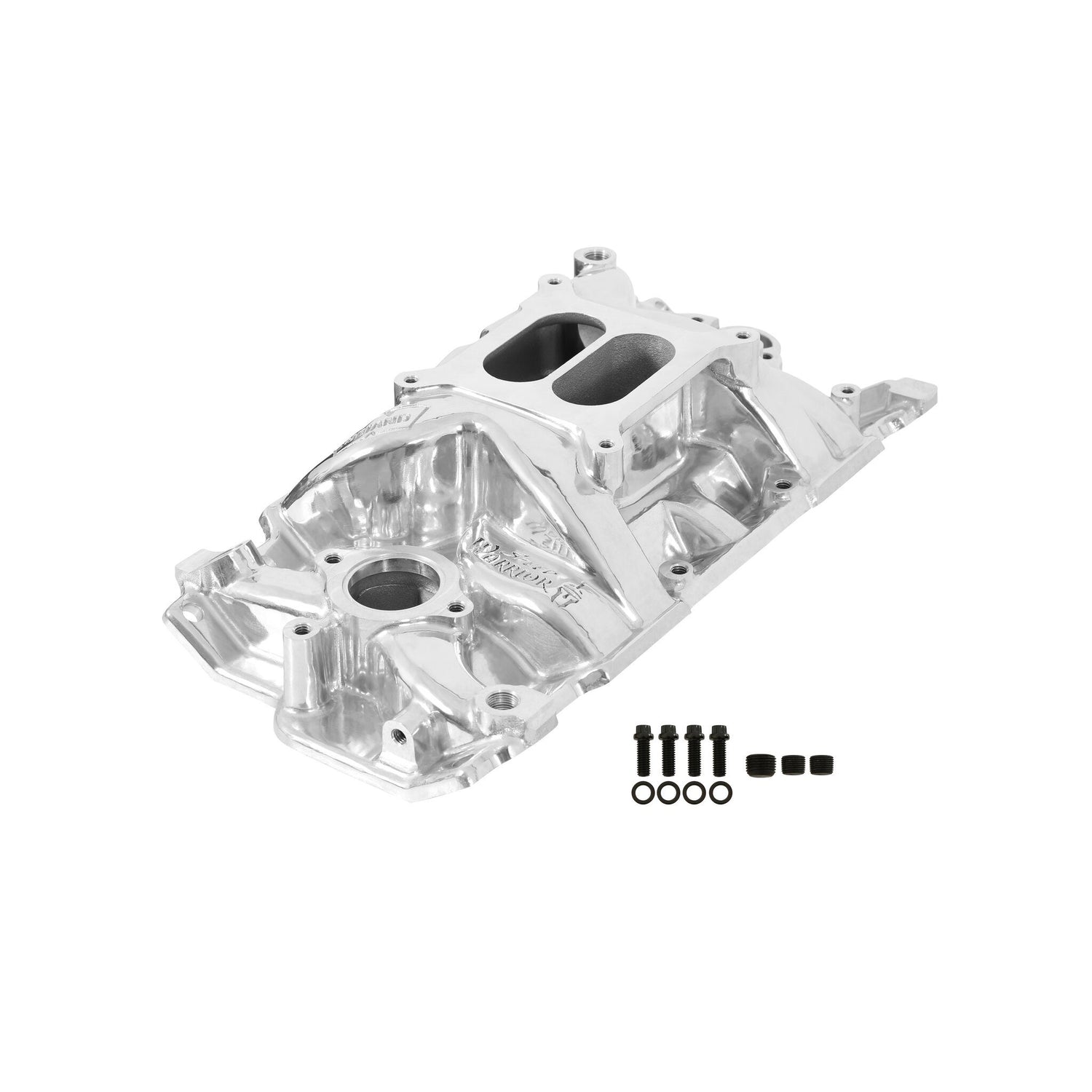

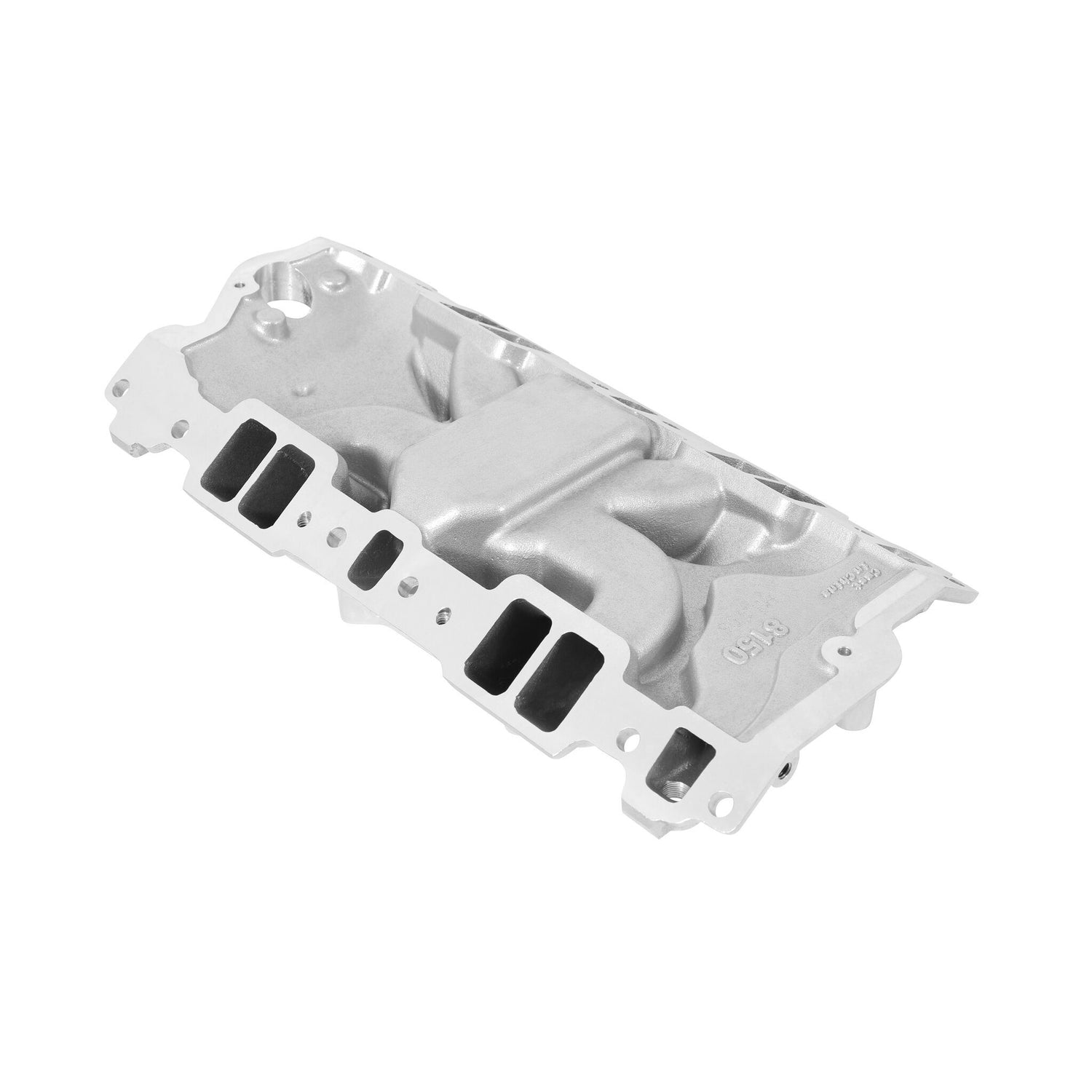

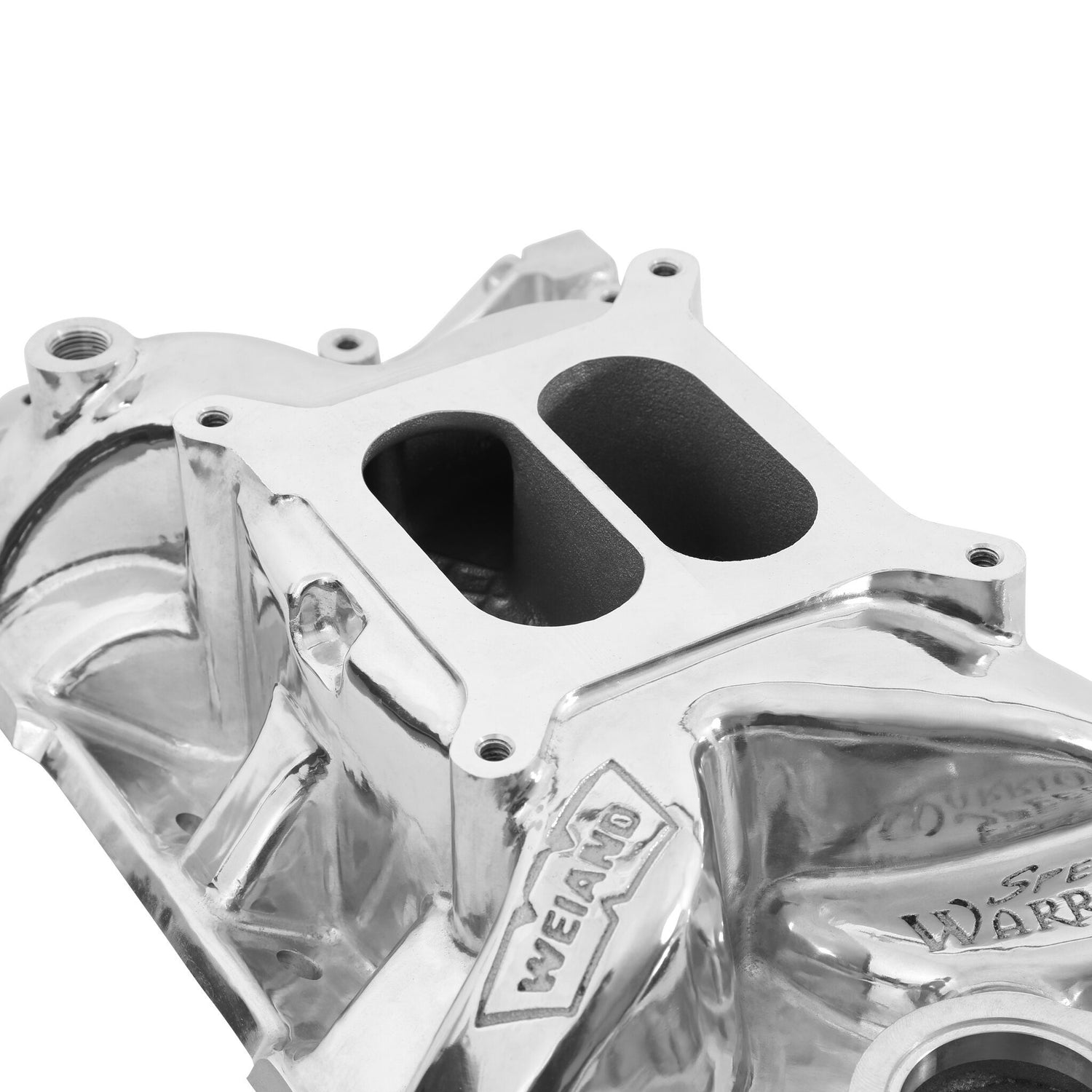

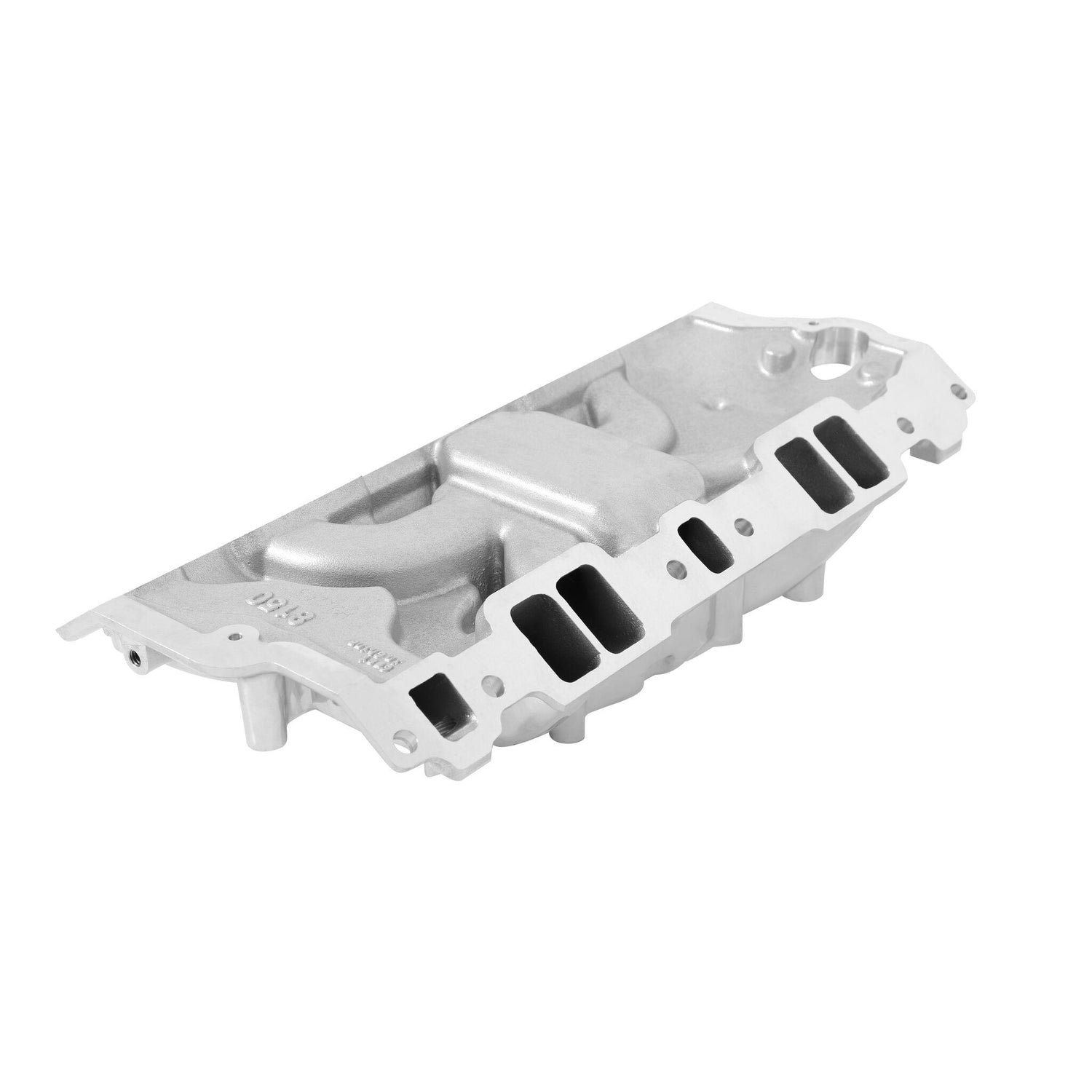

Weiand 8150P - Speed Warrior™ Intake Manifold

Weiand 8150P - Speed Warrior™ Intake Manifold

Intake Manifold - Speed Warrior - Square Bore - Dual Plane - Aluminum - Polished - Small Block Chevy - Each

Speed Warrior™ Intake Manifold; Lower; PowerBand 1500-6700 RPM; High Rise; SquareBore CarbFlange; 4.19in. Front/5.27in. Rear Height; NonEGR; Polished [AvailableWhileSuppliesLast];

Weiand is no stranger to the performance aftermarket. Since the 1930s, Weiand has been delivering serious performance parts to street /strip enthusiasts, marine customers and hard core racers. Times have changed as bigger motors, higher RPMs, better ignition systems and ultra efficient cylinder head designs have generated a need for better manifold technology. Weiand has delivered! *** Utilizes late model alternator an A/C bracket mounting provisions. Has additional vacuum tap off of runner. Recommended intake manifold gasket - Mr Gasket #'s 5821 or 101G. Plenum depth: From the carb flange to the bottom of the upper plenum is 2-3/16 in.. To the bottom of the lower plenum is 4-1/16 in..

• Hand polished finish
• Precision CNC machining
• High Rise/Dual Plane Design
• Square Bore Carburetor Flange
• Exhaust Crossover for Improved Street Drivability (Standard Small Block Chevy Heads)
• Power band: 1500-6700 RPM
• Height: Front 4.19", Rear 5.27"
• Port Size: 1.92” height, 1.16" width
