Weiand 8012 - Stealth™ Intake Manifold

Weiand  |  SKU: WEI-8012
$41599 $44995

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

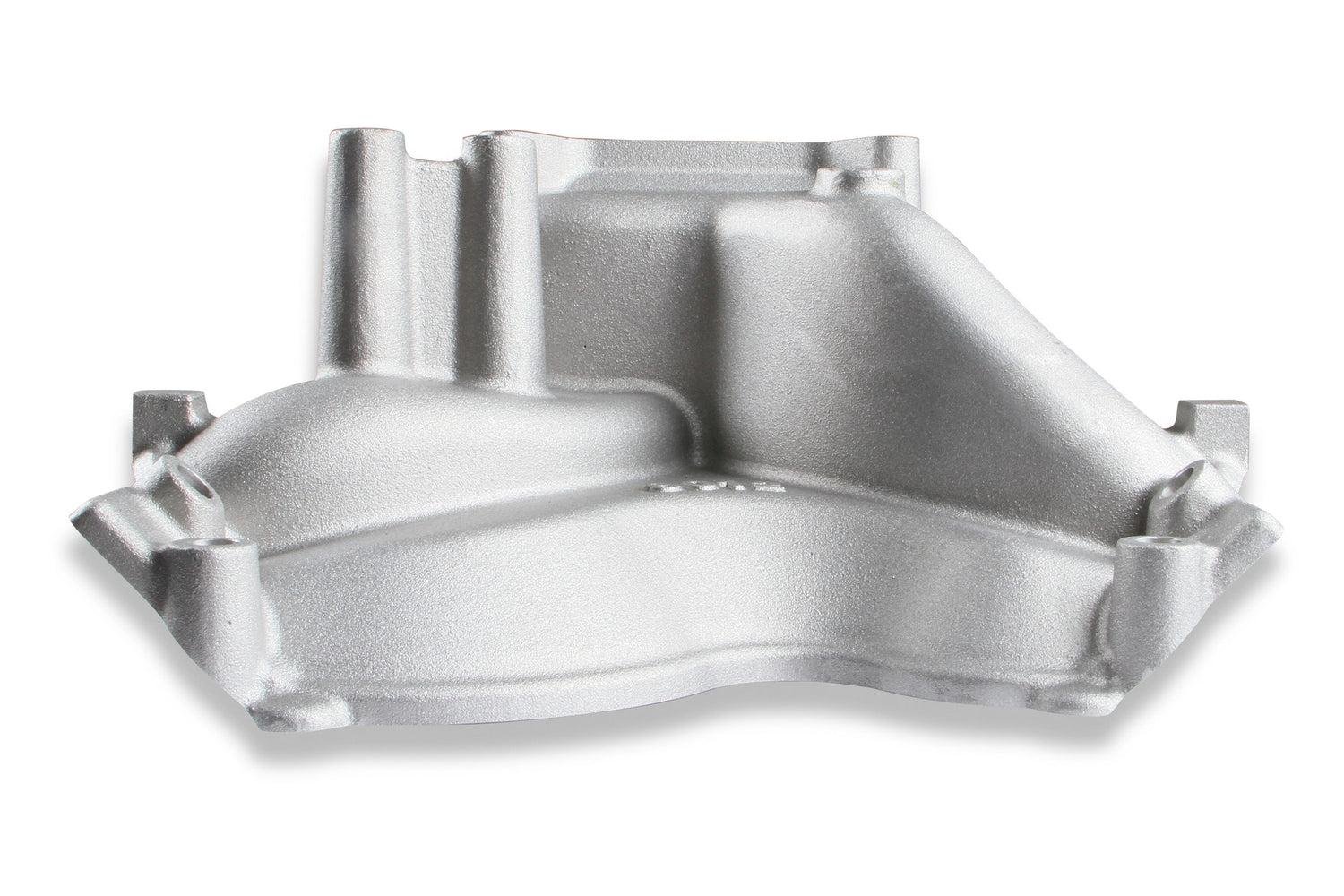

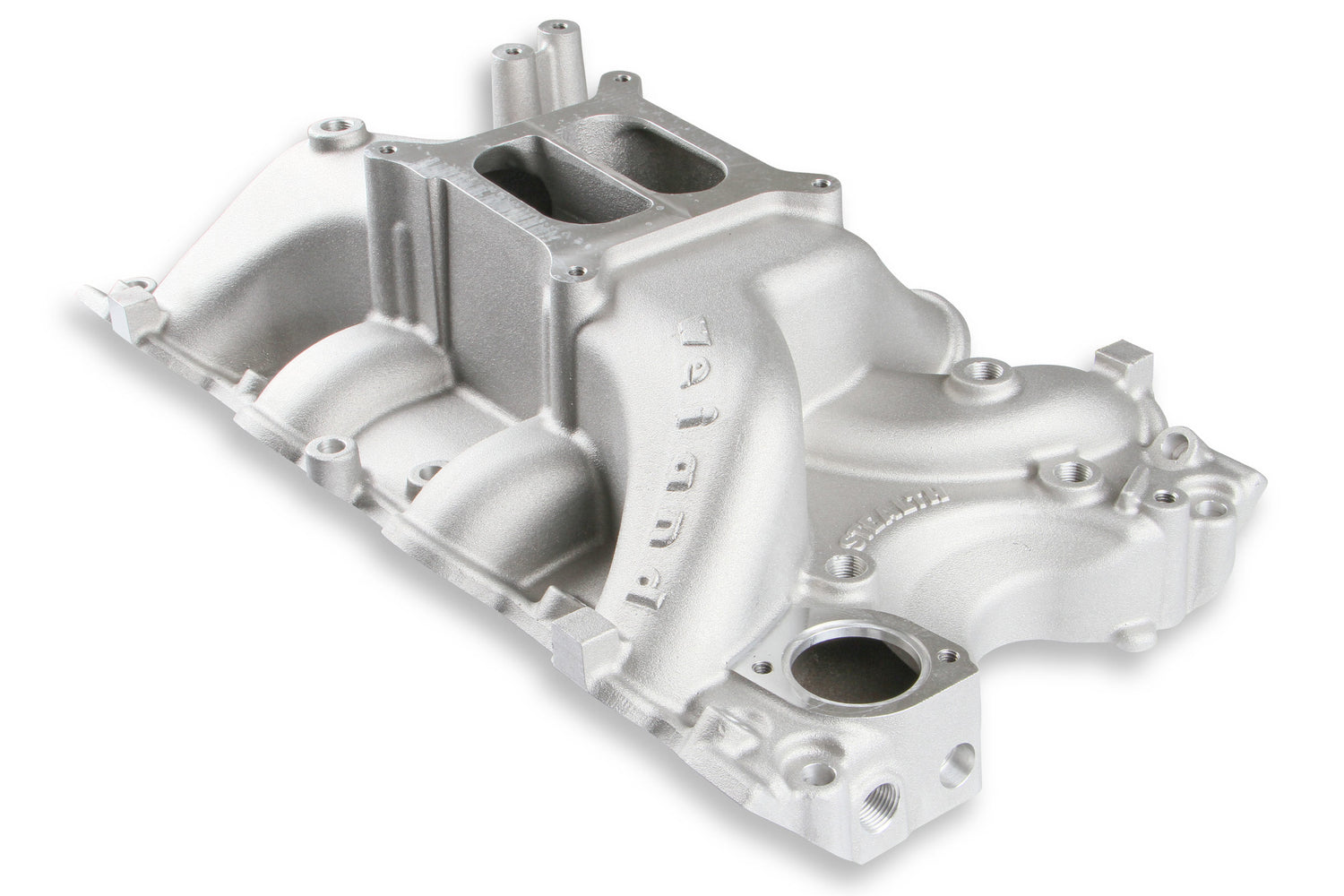

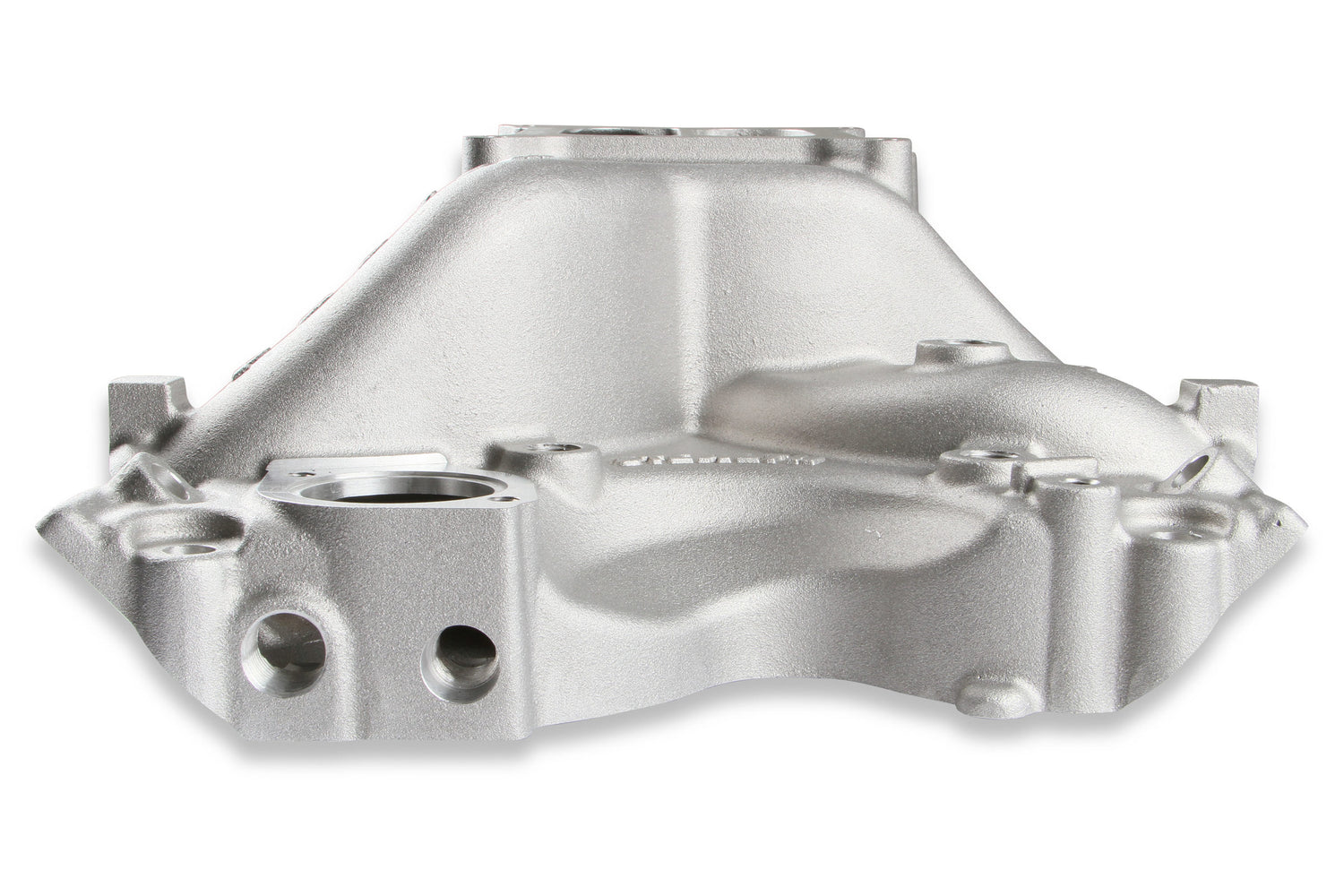

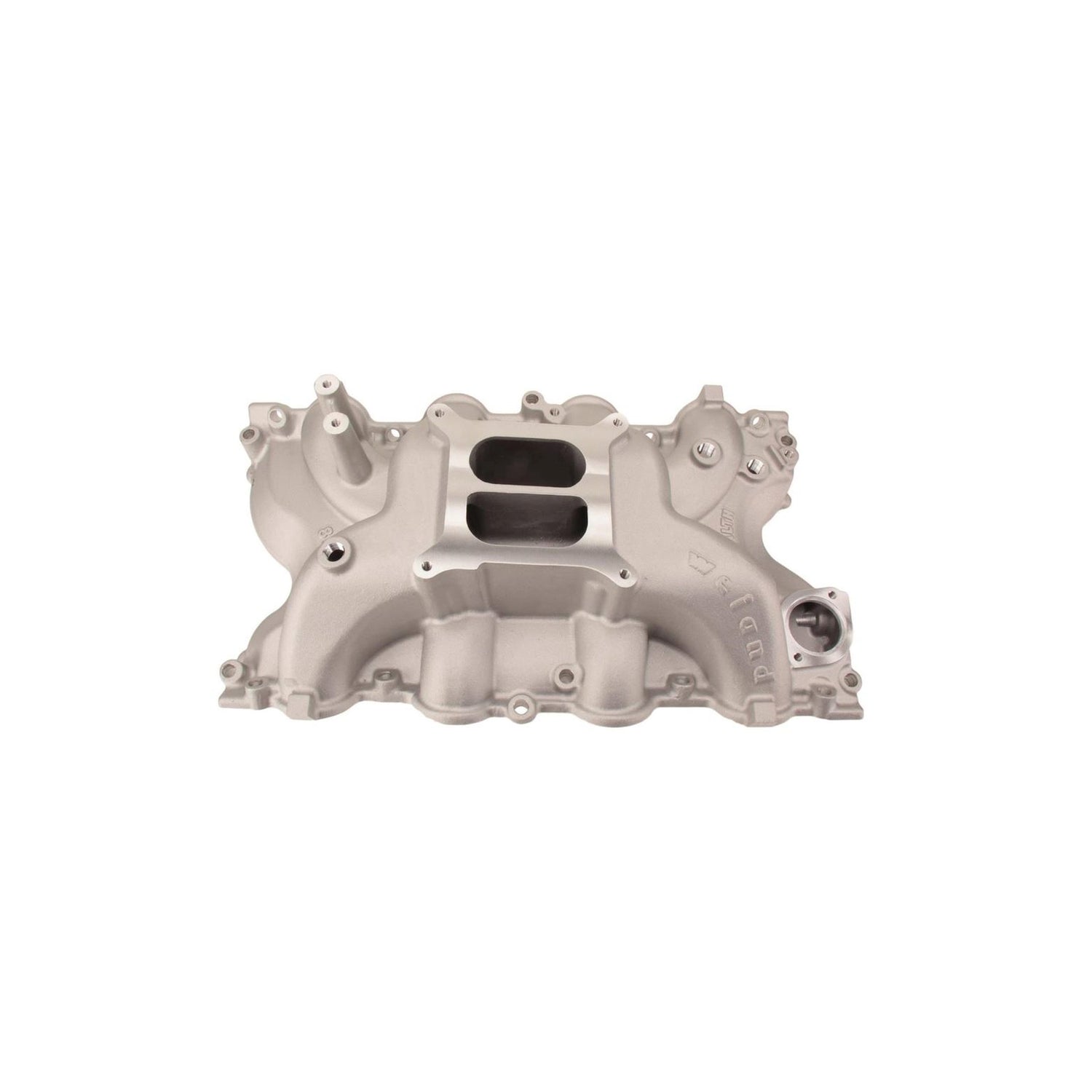

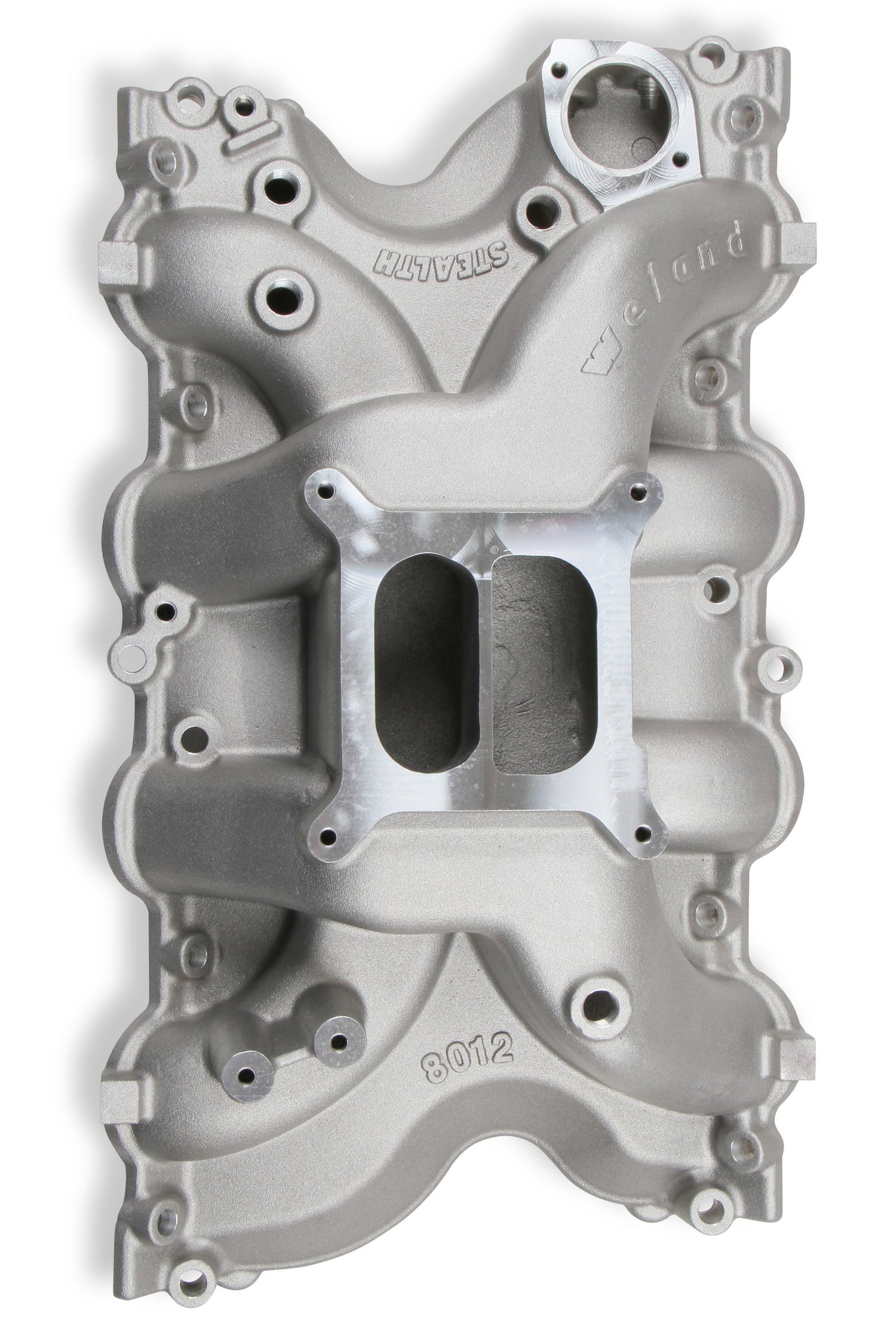

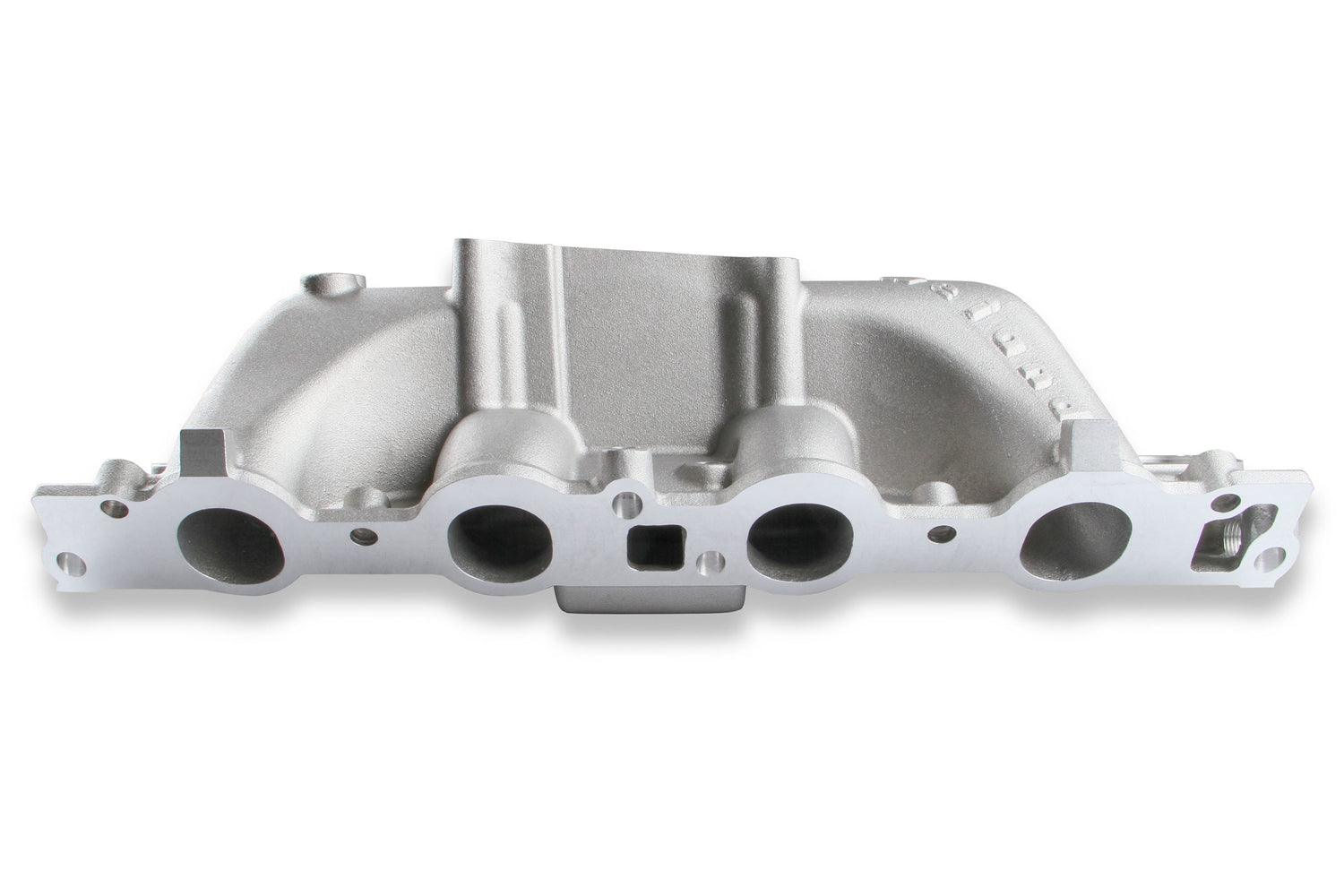

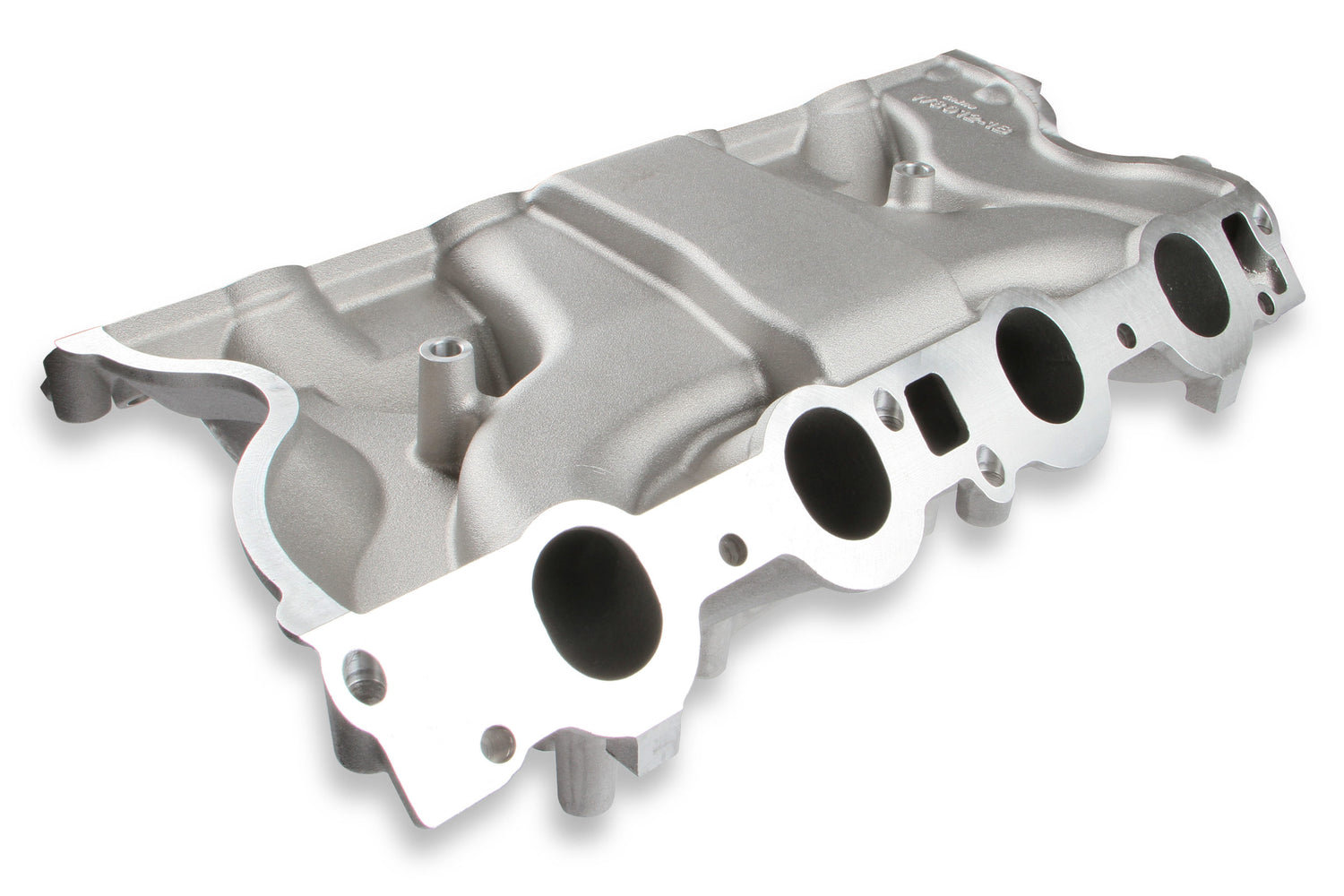

Weiand 8012 - Stealth™ Intake Manifold

Intake Manifold - Stealth - Square Bore - Dual Plane - Aluminum - Natural - Big Block Ford - Each

Stealth™ Intake Manifold; Lower; Power Band Idle-6800 RPM; Low Rise; w/460 V8 Std. Heads; Square Carb Mounting Flange; 5.25in. Frt/6.75in. Rear Height; No EGR; Satin Finish;

Weiand is no stranger to the performance aftermarket. Since the 1930s, Weiand has been delivering serious performance parts to street /strip enthusiasts, marine customers and hard core racers. Times have changed as bigger motors, higher RPMs, better ignition systems and ultra efficient cylinder head designs have generated a need for better manifold technology. Weiand has delivered!

  • Port Size 2.15 in. Height x 1.89 in. Width
  • High Rise/Dual Plane Design
  • Height Front 5.25 in.; Rear 6.75 in.
  • Idle-6800 RPM Power Band
  • No EGR Provisions
  • Square Carburetor Mounting Flange
Barrels: 4
Basic Operating RPM Range: Idle - 6800
Brand: Weiand
Carburetor Flange: 4150 Square Bore
Carburetor Quantity: 1
Carburetor Studs Included: No
Category: Engine
CNC Ported: No
Color: Natural
Construction: Cast
Cylinder Head Port Shape: Oval
Deck Height: 10.31
EGR Port: No
Emission Code: 3
Engine: Ford Big Block
Flange Style: 4150 Square Bore
Front Maximum Height: 5.25
Fuel Injectors Included: No
Fuel Rail(s) Included: No
Fuel System Type: Carb
Gasket Or Seal Included: No
Grade Type: Performance
Intake Port Gasket(s) Included: No
Manifold Type: Low Rise
Material: Aluminum
Nitrous Bung(s) Included: No
part type: Engine Intake Manifold
Plenum Finish: Cast
Product Type: Intake Manifold
Rear Maximum Height: 6.75
Removable Runners: No
Removable Top/Lid: No
Single Or Dual Plane Type: Single
Sub Category: Cylinder Block Components
Throttle Body Bore Diameter: 3.6
Throttle Body Gasket Included: No
Throttle Body Included: No
Vacuum Ports: No
Warning: California Proposition 65
Warranty: Manufacturer's Limited 90 Day Warranty
