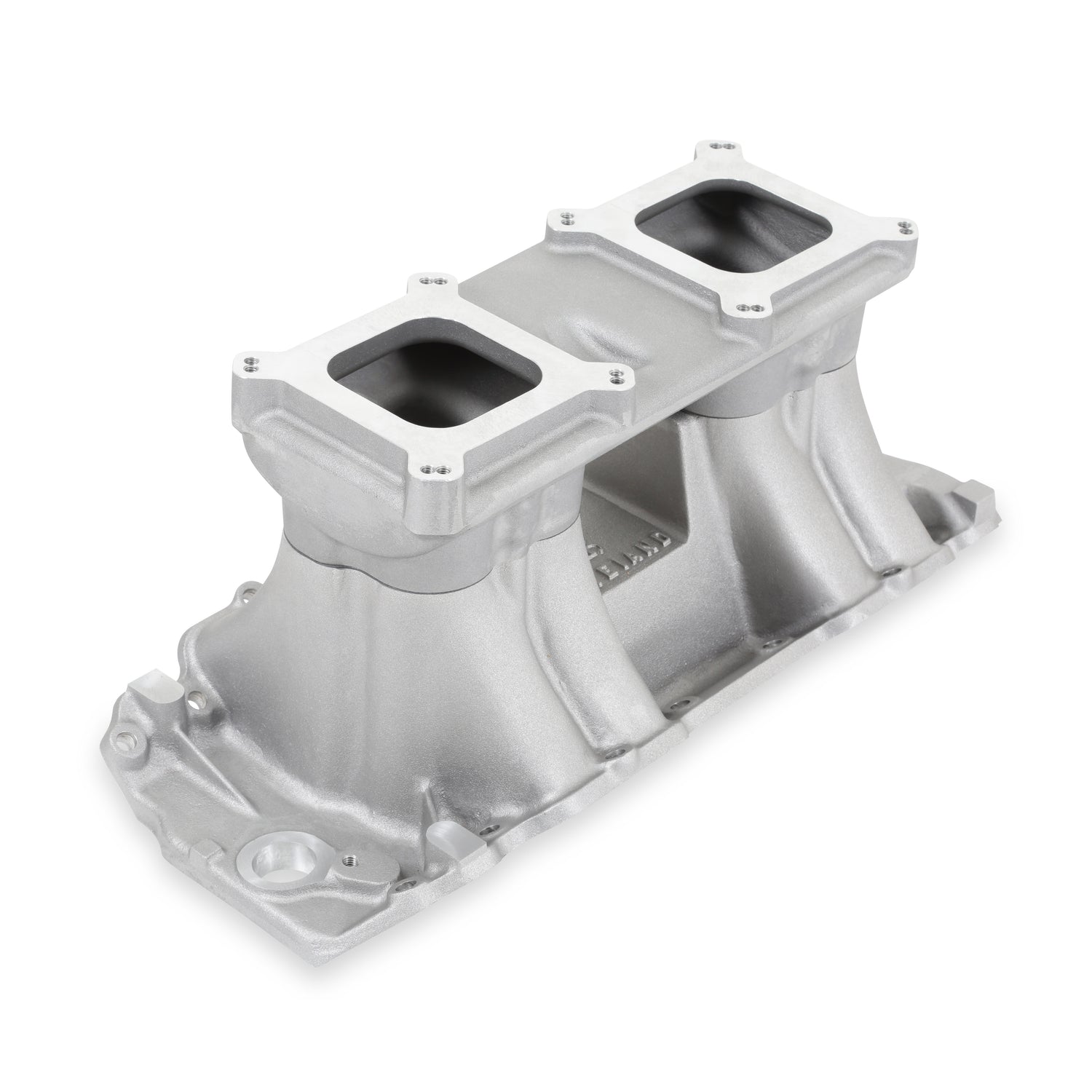

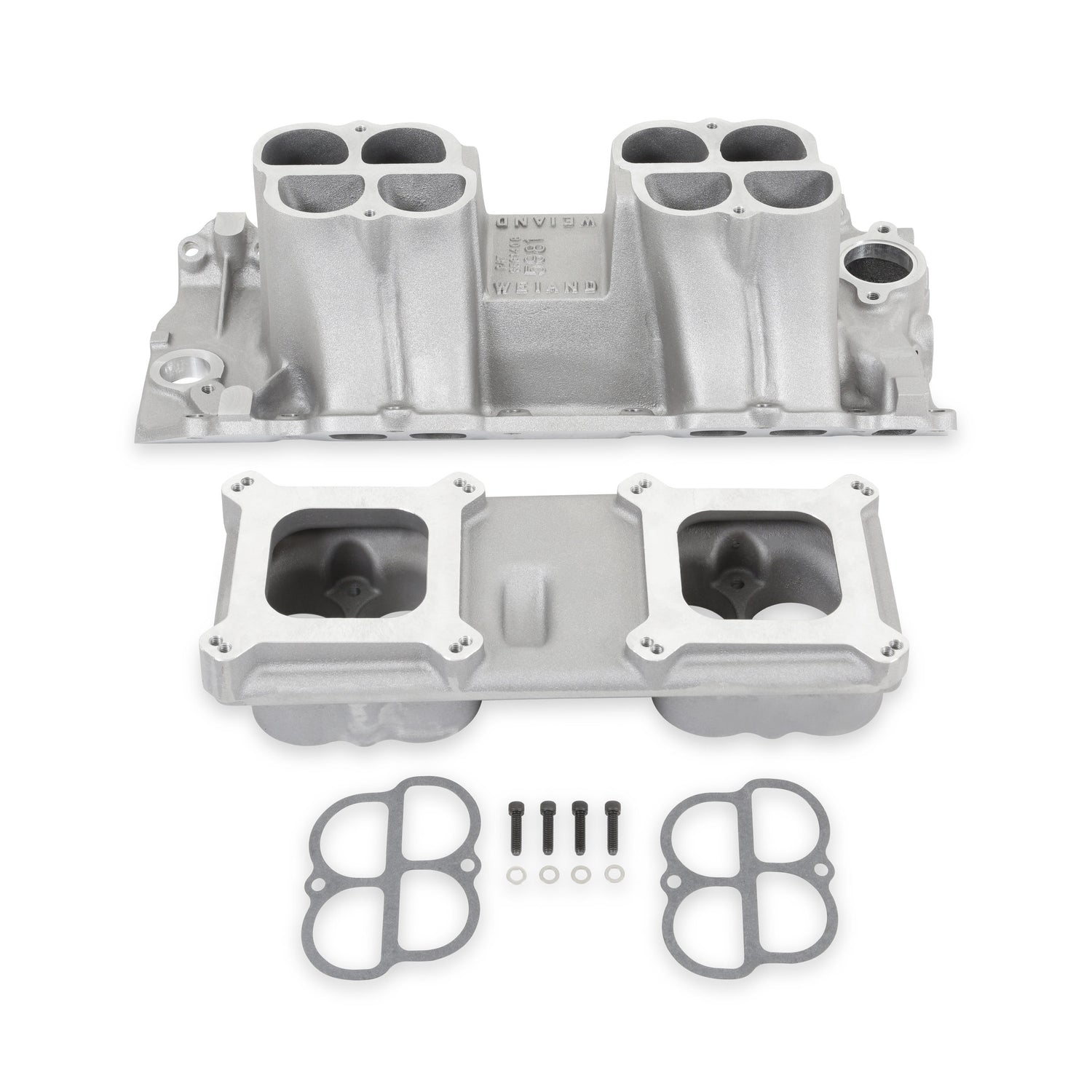

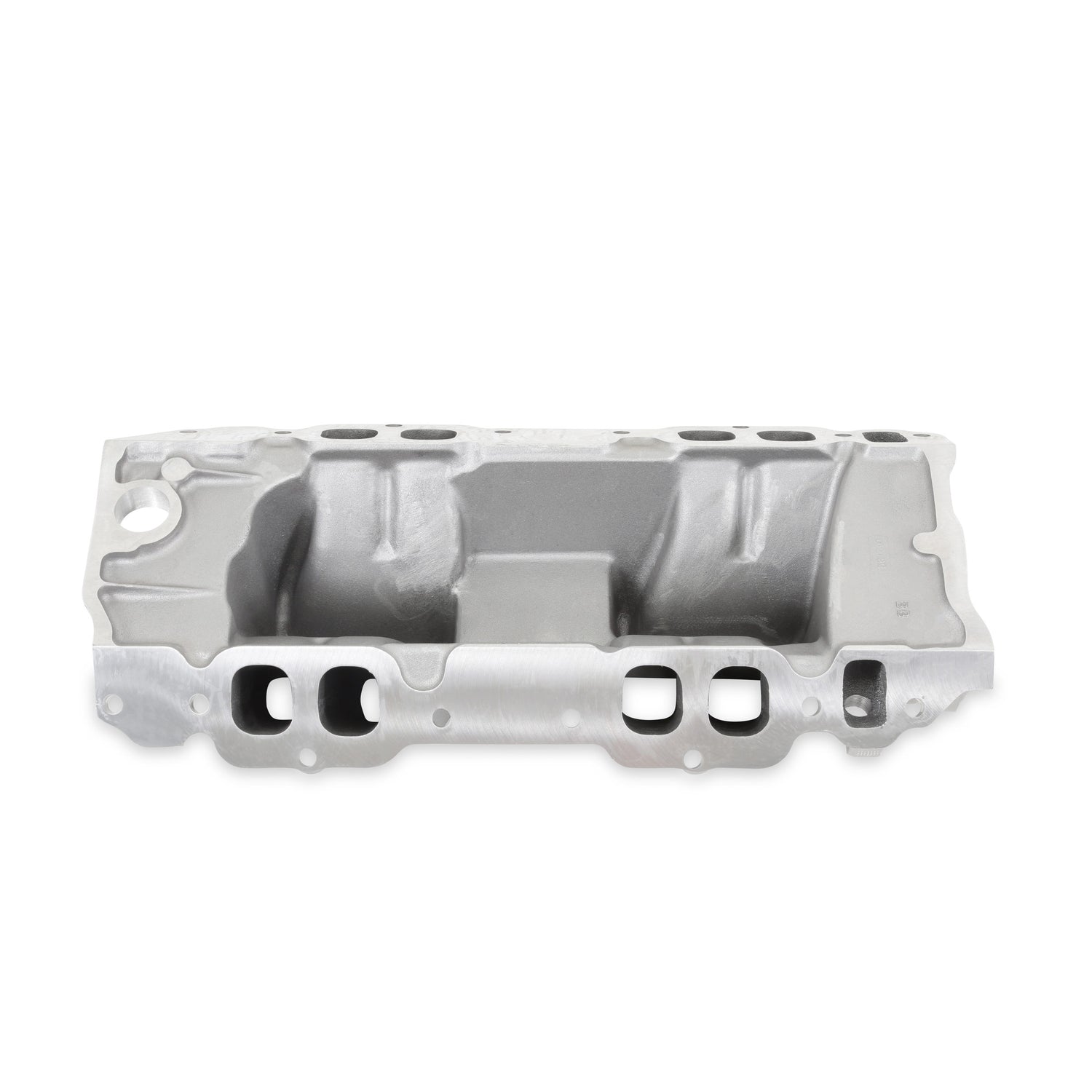

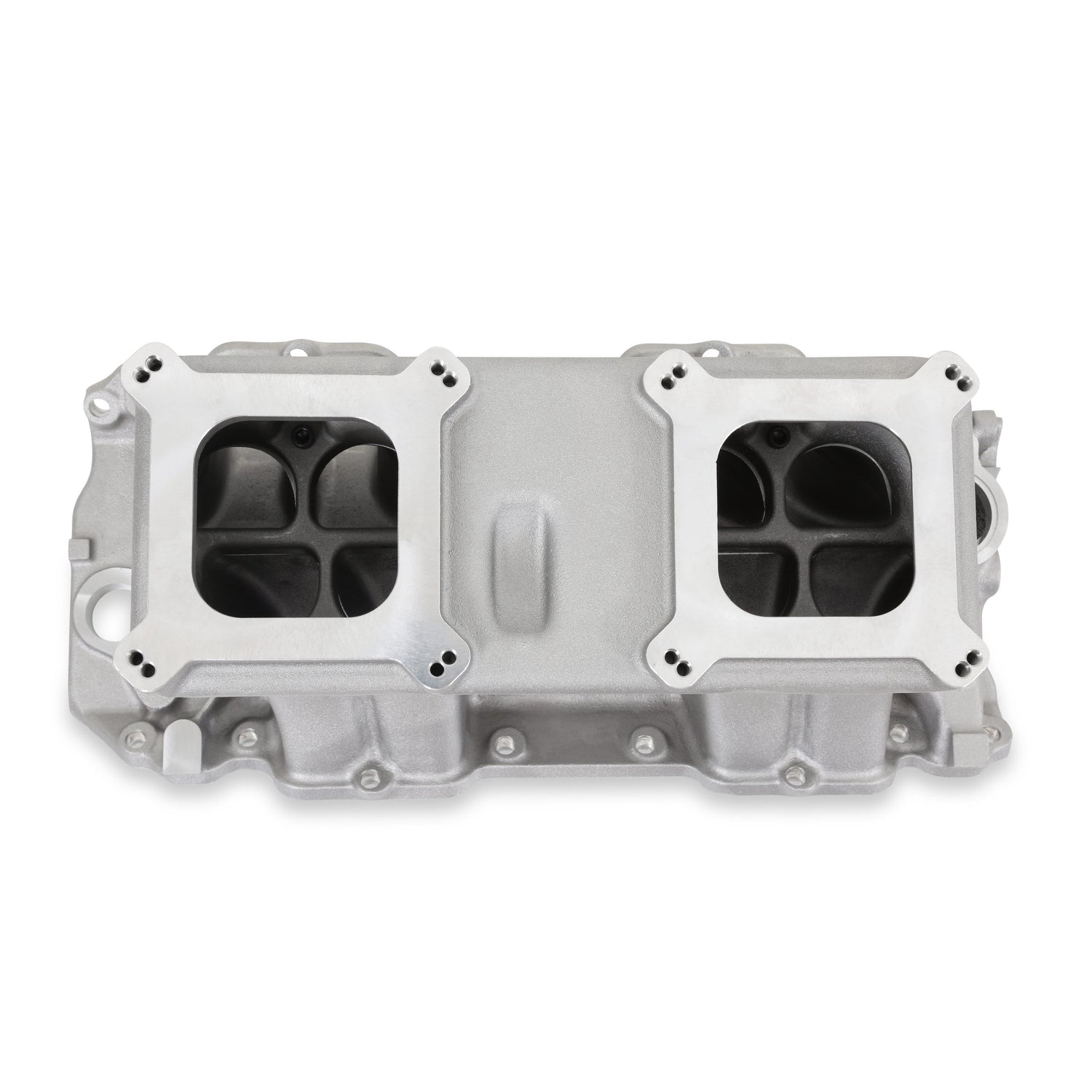

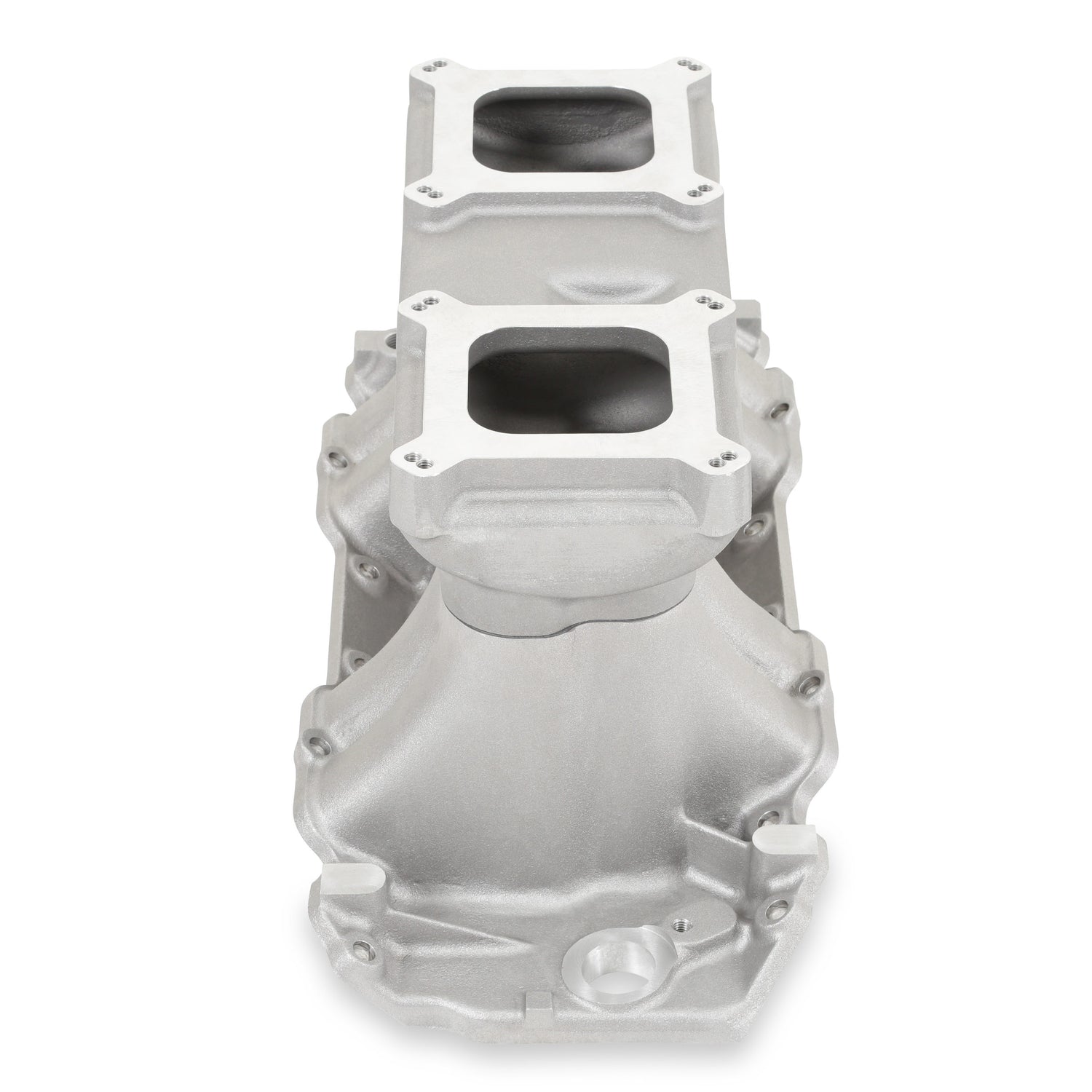

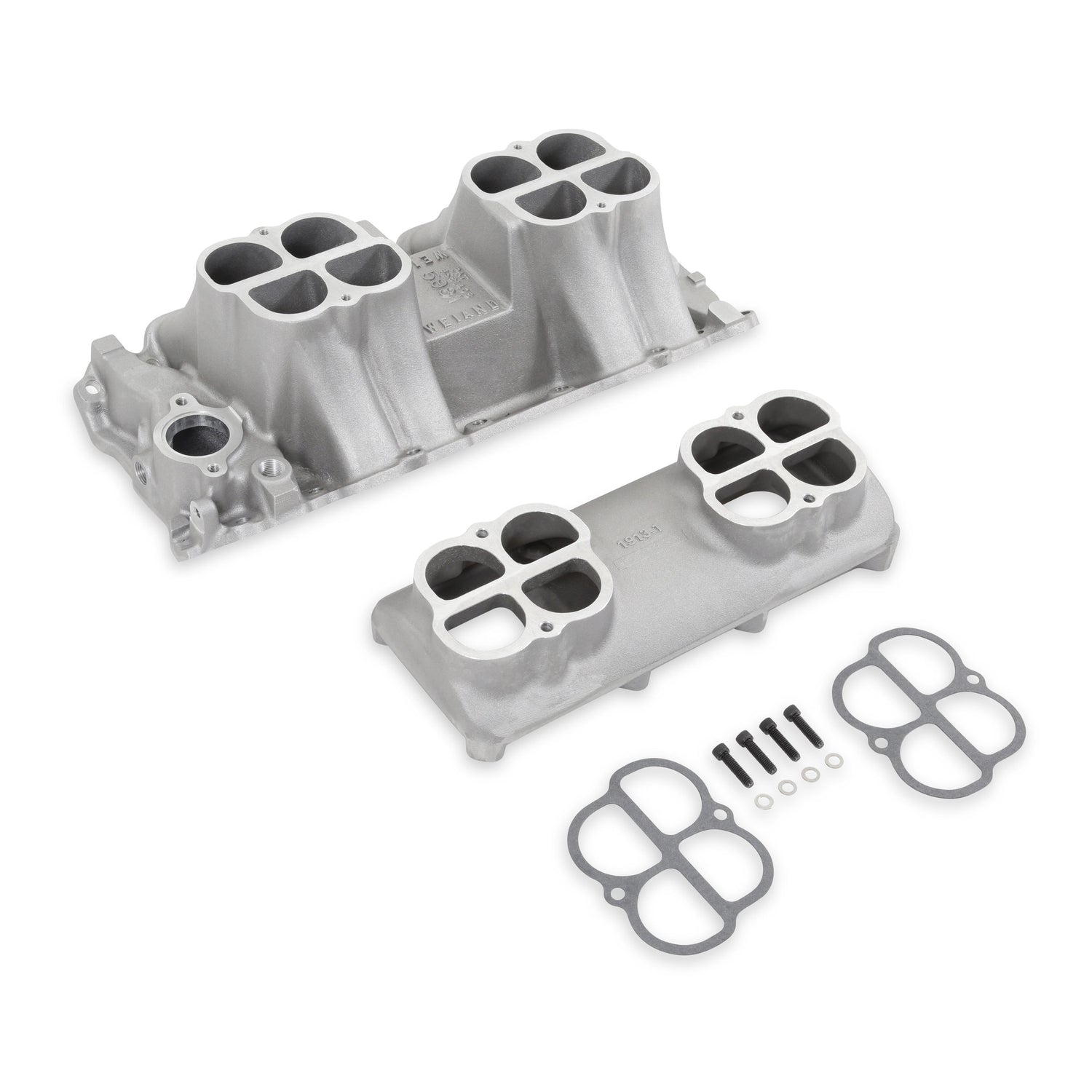

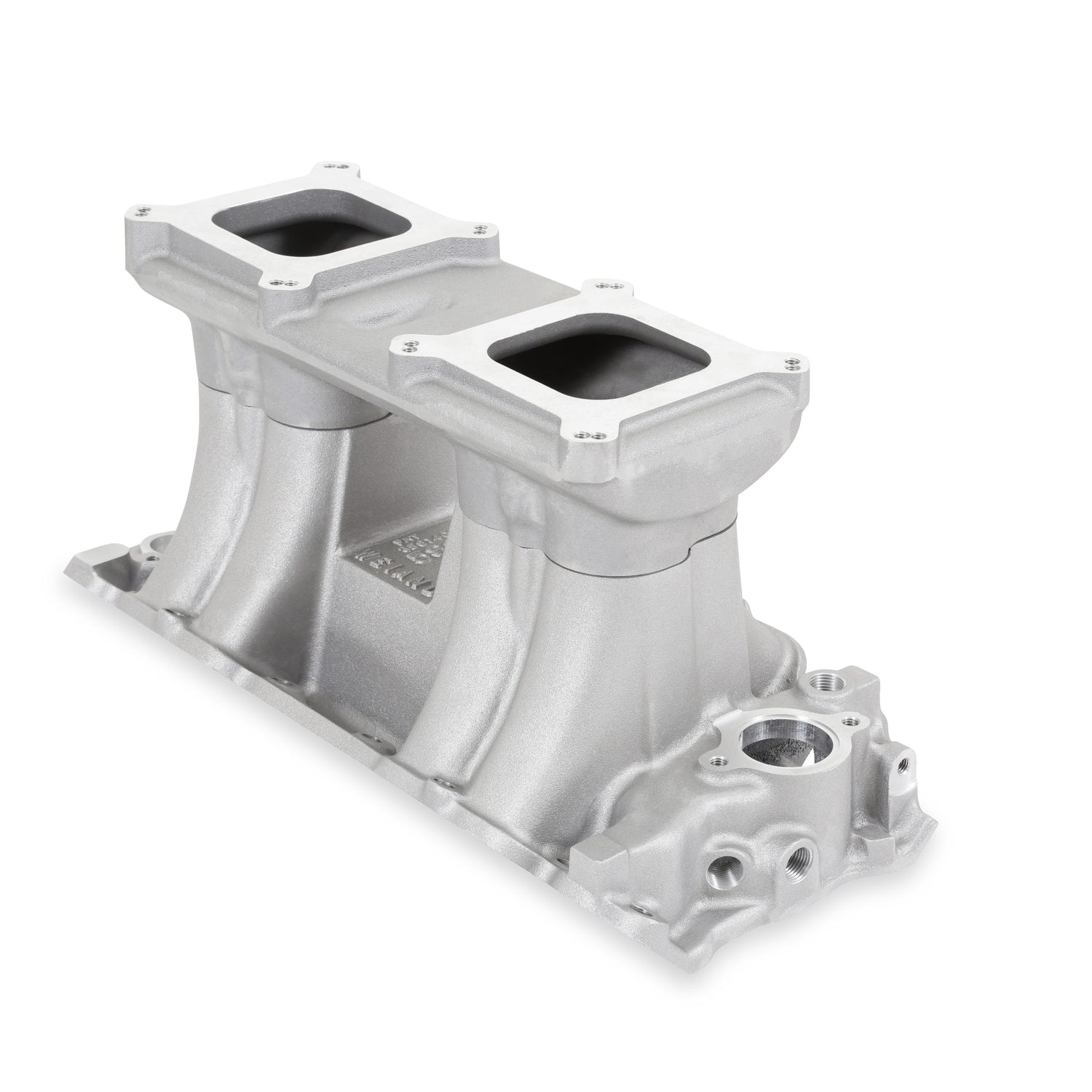

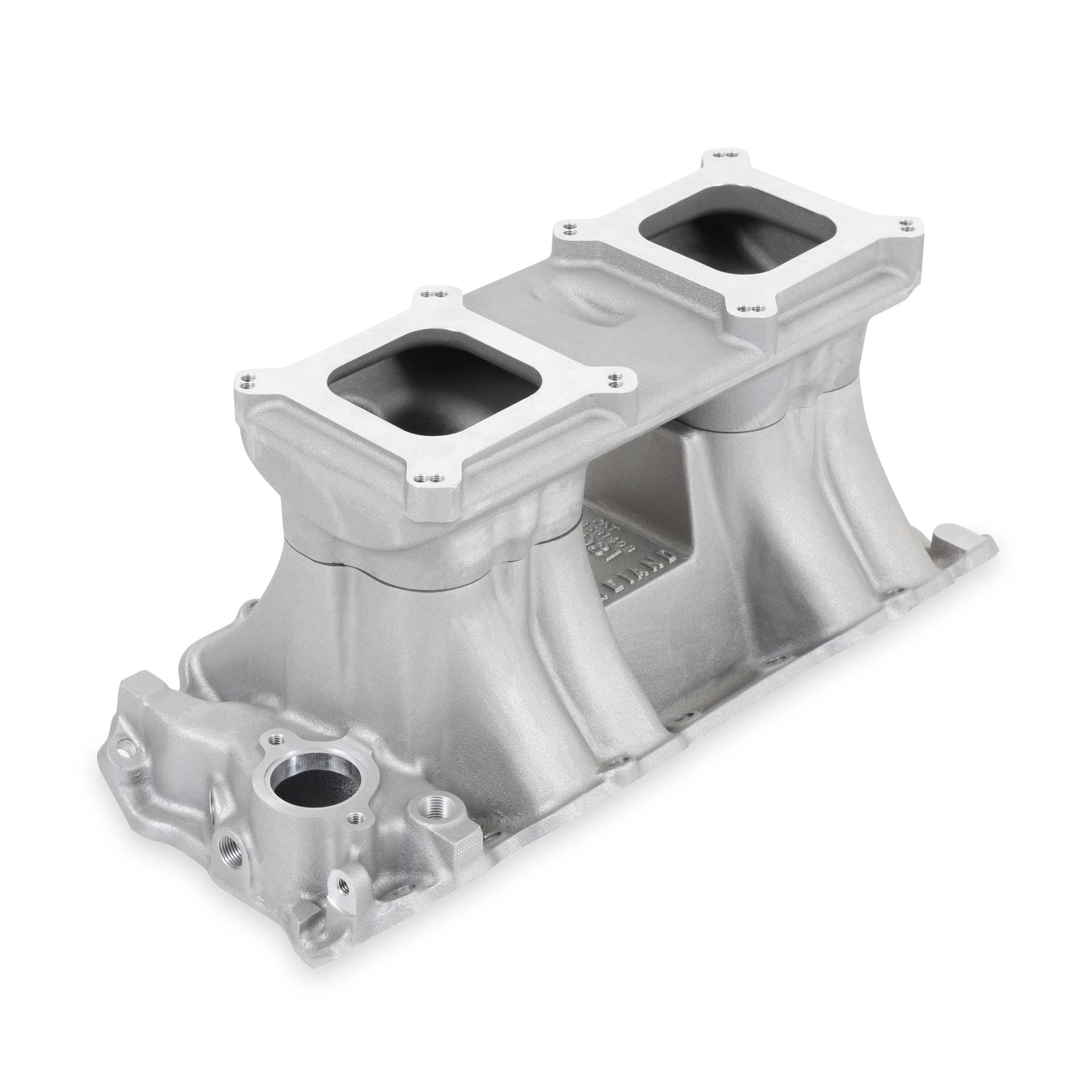

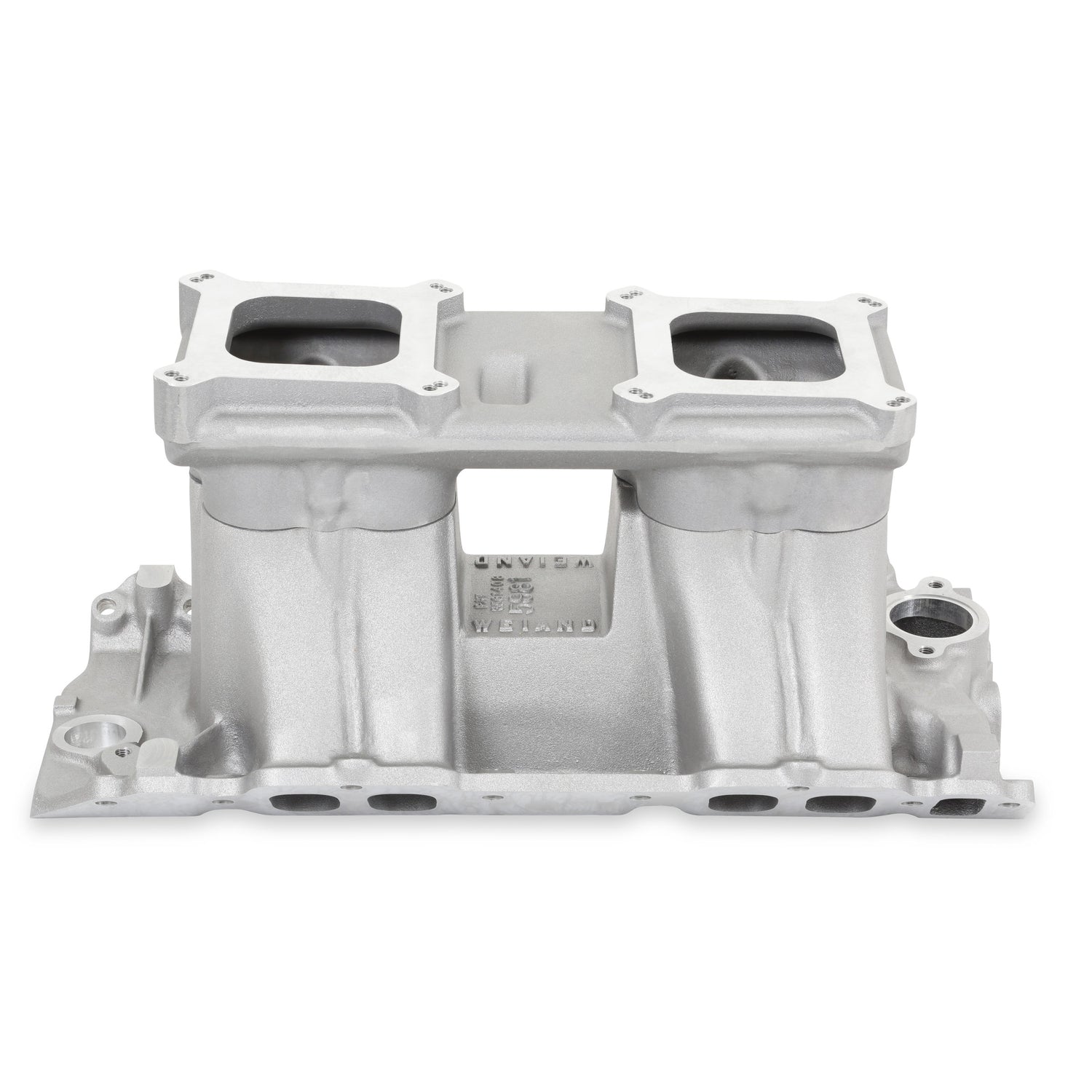

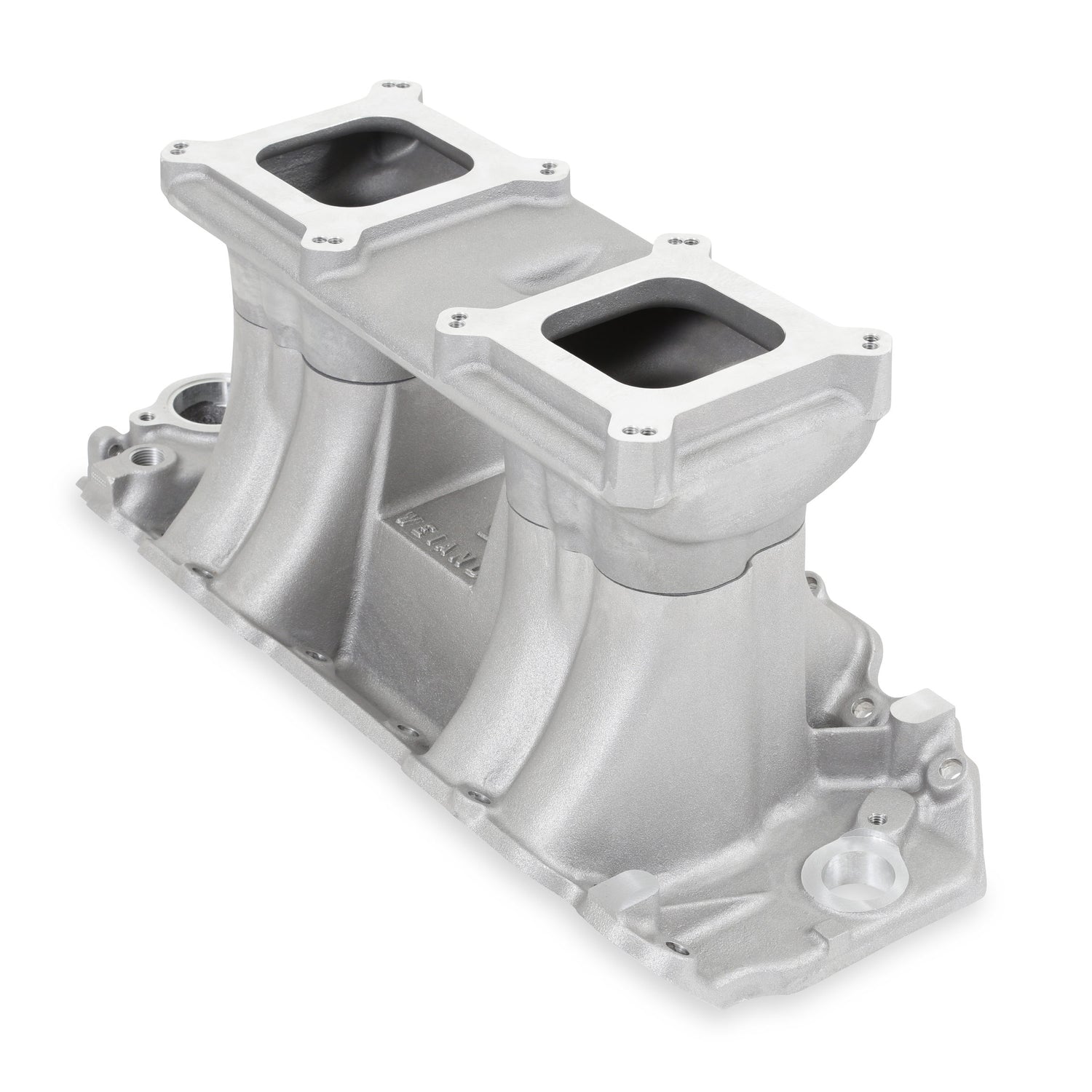

Weiand 1981 - Nostalgic Series Hi-Ram Intake Manifold
Intake Manifold - Hi-Ram - Dual Square Bore - Tunnel Ram - Oval Port - Aluminum - Natural - Big Block Chevy - Each
Nostalgic Series Hi-Ram Intake Manifold; Upper; Power Band 2800-8000 RPM; w/Perf. Oval Port Heads; Square Flange Carb Mount; 10.12 in. Front/10.93 in. Rear Height; Satin Finish;
HI-RAM SERIES: These tunnel ram manifolds are used primarily in drag racing, tractor/truck pulls and performance marine applications where high RPM performance is required. The effective RPM range is between 2,800 to 8,000 RPM. The WEIAND Hi-Ram, with it's patented D-shaped port runners and large plenum chamber, provides optimum velocity of the air/fuel mixture to the cylinder head intake ports. For maximum performance in a naturally aspirated competition application, the WEIAND Hi-Ram is the manifold of choice! This manifold is designed to be used with performance oval port heads. This manifold is part of the Weiand Nostalgia Series of intake manifolds. Weiand Nostalgia Series intake manifolds are made using the original tooling, and may have minor appearance imperfections that do not affect the functionality of the part. These minor blemishes are a natural part of the casting process when using the original sand casting tooling. Weiand Nostalgia series intakes are proudly cast and machined in the USA. We support all areas of the vintage, show, and nostalgia car hobby, and want to continue to produce these lower volume manifolds using the original tools. There is no need to search for that vintage intake at swap meets or on the internet when you can buy the real deal new from Weiand! *** GM HEI will not clear, Use Side-by-Side 2 x 4 Tunnel Ram Carburetor Linkage Kit # 4022. When using carburetors with vacuum operated secondary's, use Diaphragm Housing Covers # 20-28, for more even and balanced secondary operation. Will fit tall blocks with use of Weiand P/N 8204 manifold spacer plate kit.
- 2500-7800 RPM power band
- Height: Front 10.12", Rear 10.93"
- Weiand Nostalgia Series Intake Manifold
- Power band: 2800-8000 RPM
- Large volume plenum
- Special D-shaped port runner design
- Carb Flange Center-To Center 9-11/16"
- Port Size: 1.82” height 1.60" width
- 2 x 4 carburetor top
- Square flange carburetor mounting
