Warn 112356 - ZEON XC 12-S FOR HIDDEN KITS WITH 70' OF 3/8" SPYDURA PRO SYNTHETIC ROPE

Warn  |  SKU: WARN-112356
Sale price $1,74999 Regular price $1,92499

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

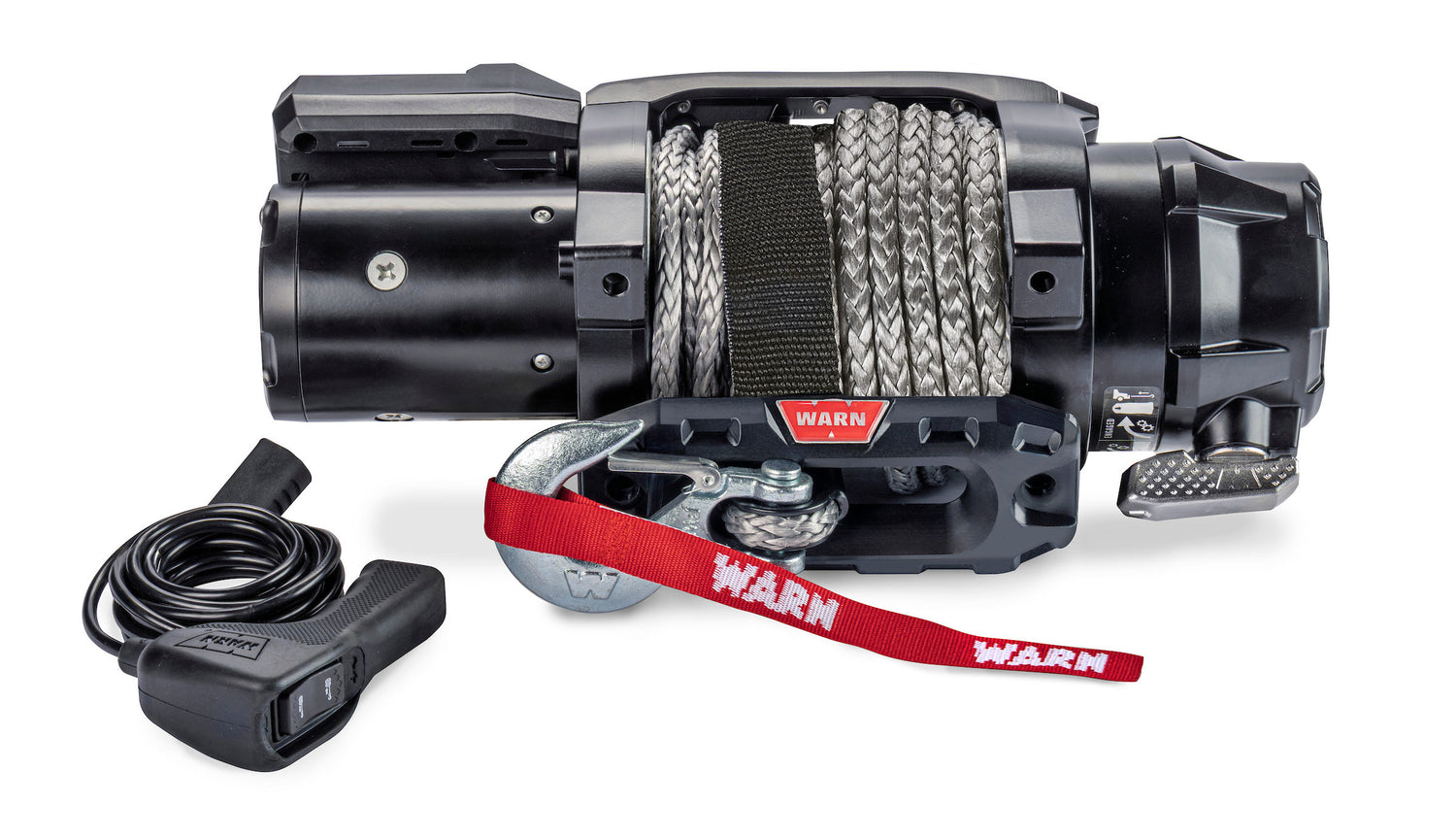

Warn 112356 - ZEON XC 12-S FOR HIDDEN KITS WITH 70' OF 3/8" SPYDURA PRO SYNTHETIC ROPE

ZEON XC 12-S FOR HIDDEN KITS WITH 70' OF 3/8" SPYDURA PRO SYNTHETIC ROPE

ZEON XC 12-S for Hidden Winch Mounts delivers all the performance of ZEON XC in a more compact package, making it the perfect winch for WARN's line of Fully Hidden Winch Mounts.

Based on the proven foundation of ZEON XD, the ZEON XC delivers ultimate performance in a low-profile, compact package, giving users greater flexibility for mounting applications. The ZEON XC offers the unmatched capability with best-in-class line speed and capacity, superior durability, and the industry’s leading warranty. Every ZEON XC is meticulously engineered, rigorously tested, and expertly assembled in Clackamas, Oregon, USA.

  • Short drum version of ZEON XC 12-S with the transmission rotated forward 144 degrees

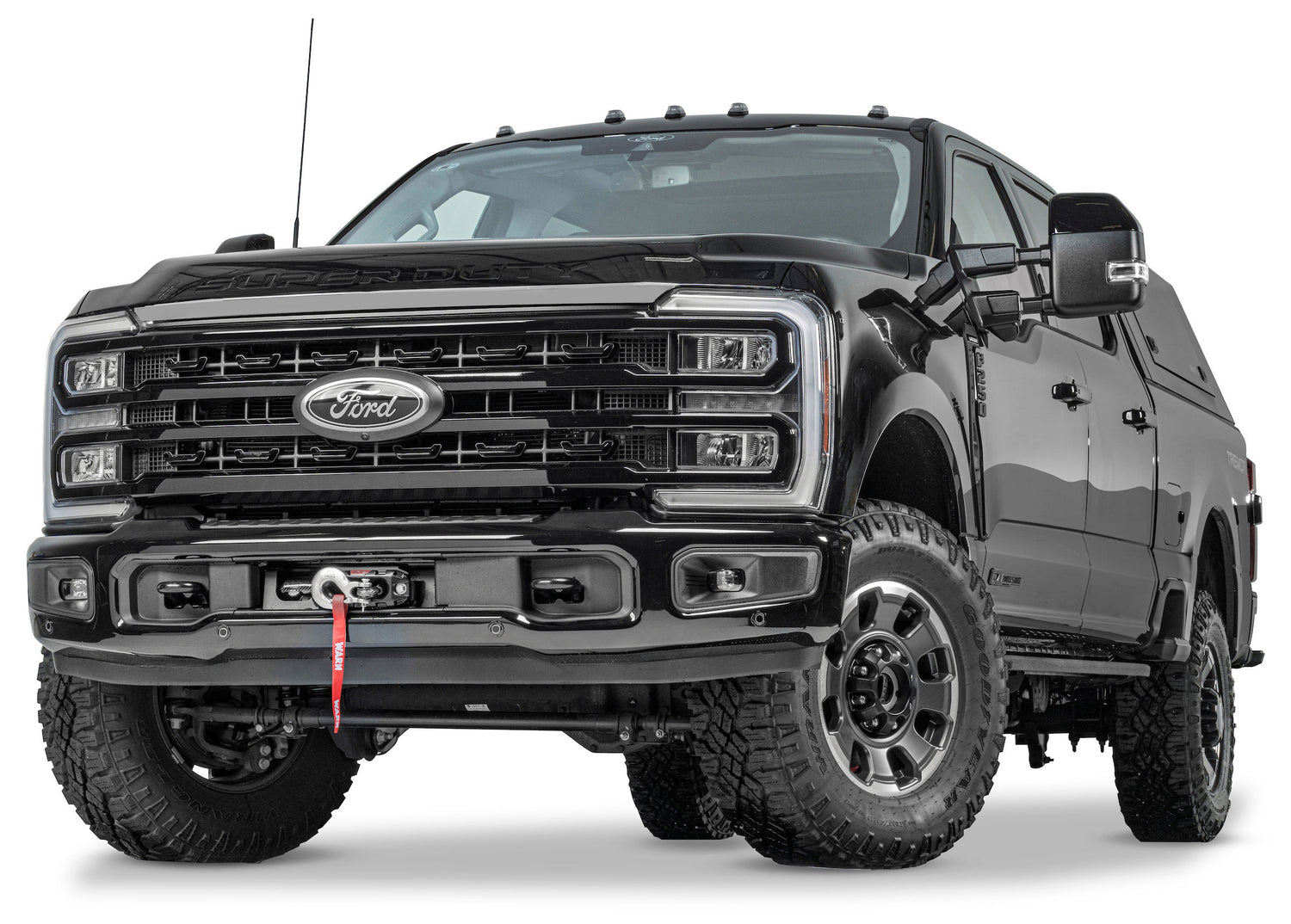

  • Small size makes it the perfect winch for WARN's fully hidden winch mounting kits
  • Comes with 6' remote socket relocation harness, allowing the remote socket to stay accessable even when the winch is hidden behind the bumper
  • Compact, low profile design: the entire control pack sits below the top of the tie plate, making it possible to mount this winch in the tightest applications.
  • Ultimate performance and durability: best-in-class line speed, superior durability, and pulling capacity
  • Fully waterproof: IP68 submersion and IP69K spray rated achieved through the use of automotive-grade O-ring seals
  • OEM grade corrosion resistance: OE-grade paint and fasteners increase resistance to fading and corrosion, ensuring ZEON XP stays pristine for years to come
  • 70' of 3/8" Spydura Pro
  • Black short drum aluminum fairlead
  • Industry-leading warranty: Limited lifetime mechanical, seven year electrical—all backed by a global service network.
  • Designed, engineered, and assembled in the USA
Brake Activation: Automatic
Brake Type: Cone
Cable Diameter: 3/8
Cable Length: 70
Cable Material: Synthetic Rope
Color: Black
D Shackle Included: No
Fairlead Type: Hawse
Free Spooling: Yes
Gear Ratio: 176:1
Gearing: 3-Stage Planetary
Hand Saver: Yes
Length: 19.5
Maximum Height: 7.8
Maximum Width: 6.7
Motor Type: Series Wound
Motor Voltage: 12V
Mount Type: Fixed Mount
Mounting Bolt Pattern Length: 4.5
Mounting Bolt Pattern Width: 10
Mounting Hole Quantity: 4
Plow Mode: Yes
Power Out: Yes
Rated Line Pull: 12000
Remote Included: Yes
Remote Type: Wire
Requires Mount: Yes
Solenoid Type: Contactor
Tree Saver: No
Type: Electric
Voltage: 12V
Winch Rating: Electric
