Warn 110412 - Zeon XC 12 Winch 12000 lb. w/Wire Rope

Warn  |  SKU: WARN-110412
Sale price $1,65999 Regular price $1,82599

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

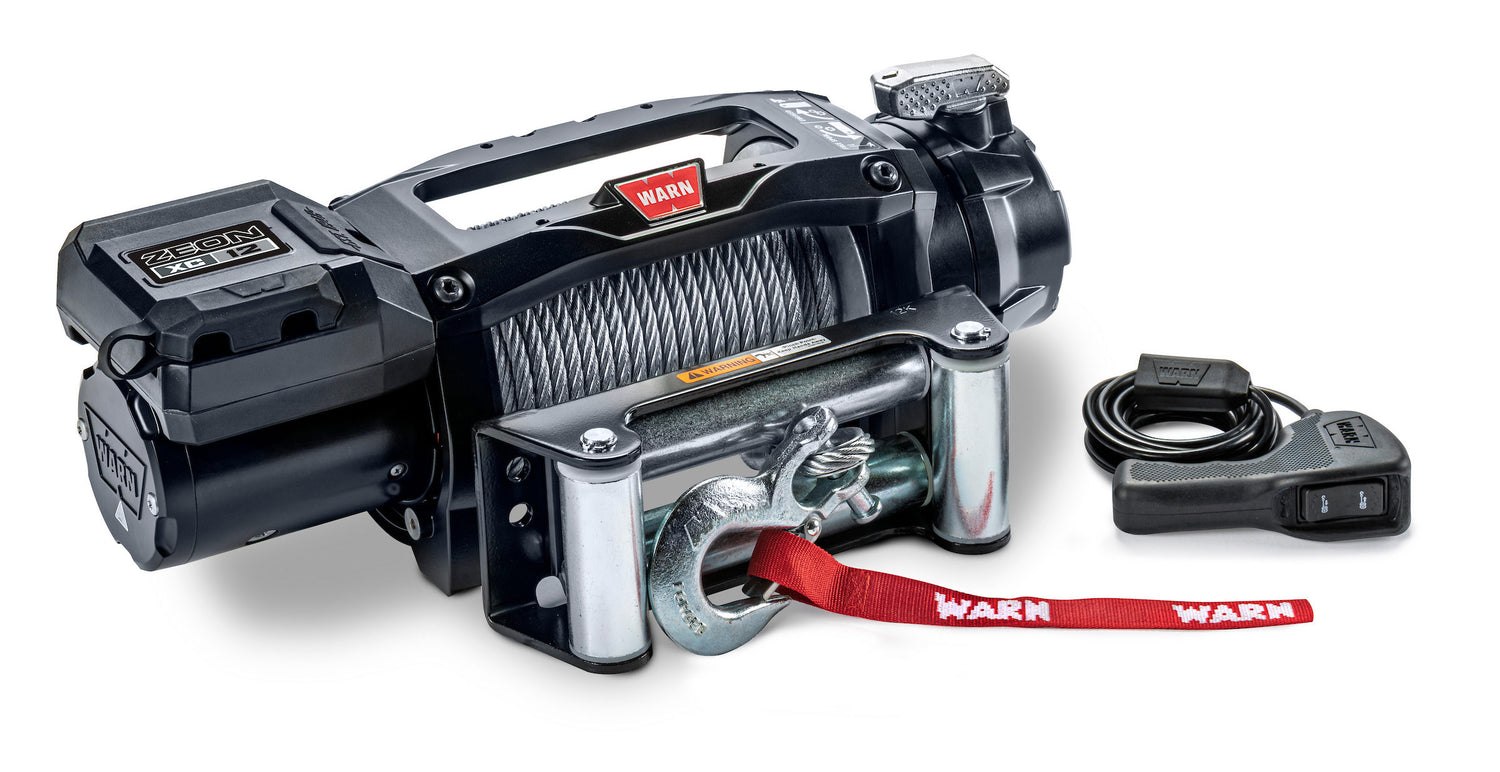

Warn 110412 - Zeon XC 12 Winch 12000 lb. w/Wire Rope

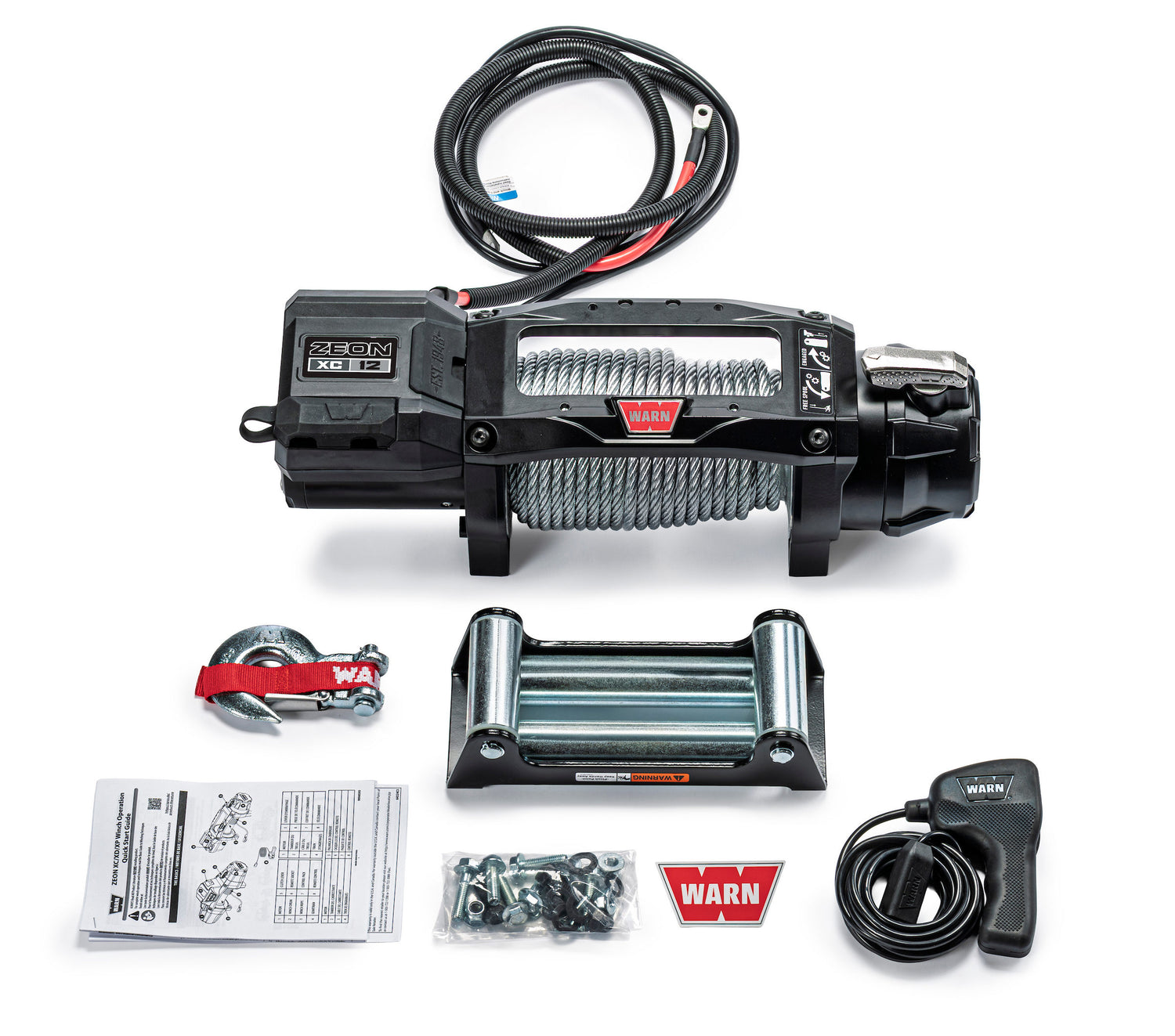

Winch - Zeon XC 12 - 12000 lb Capacity - Roller Fairlead - 12 ft Remote - 3/8 in x 80 ft Steel Rope - 12V - Kit

ZEON XC delivers ultimate performance in a low-profile, compact package. The ZEON XC offers the unmatched capability with best-in-class line speed and capacity, superior durability, the industry’s best warranty, and is assembled in the USA.

For those looking for ZEON performance in a compact shape, the ZEON XC is the one to get. The ZEON XC 12 offers 12,000 lbs. of pulling capacity making it great for full-sized pickups, big SUVs, and built Jeeps. It offers many of the features of the ZEON XD, such as IP68/IP69k waterproofing and excellent performance and efficiency, but with less size, weight, and a low-profile control box. Plus, it's designed, engineered, and assembled in the USA.

  • Compact, low profile design: the entire control pack sits below the top of the tie plate, making it possible to mount this winch in the tightest applications.
  • The remote socket can easily be relocated within 9” of the control pack for added mounting versatility.
  • Ultimate performance and durability: best-in-class line speed, and superior durability
  • Fully waterproof: IP68 submersion and IP69K spray rated achieved through the use of automotive-grade O-ring seals
  • OEM grade corrosion resistance: OE-grade paint and fasteners increase resistance to fading and corrosion, ensuring ZEON XP stays pristine for years to come
  • Includes 80' of durable 3/8" steel rope and a roller fairlead
  • Industry-leading warranty: Limited lifetime mechanical, seven year electrical—all backed by a global service network.
  • Designed, engineered, and assembled in the USA
Brake Activation: Automatic
Brake Type: Cone
Cable Diameter: 3/8
Cable Length: 80
Cable Material: Metal Rope
Color: Black
D Shackle Included: No
Fairlead Type: Hawse
Free Spooling: Yes
Gear Ratio: 176:1
Gearing: 3-Stage Planetary
Hand Saver: Yes
Length: 22
Maximum Height: 7.8
Maximum Width: 6.7
Motor Type: Series Wound
Motor Voltage: 12V
Mount Type: Fixed Mount
Mounting Bolt Pattern Length: 4.5
Mounting Bolt Pattern Width: 10
Mounting Hole Quantity: 4
Power Out: Yes
Rated Line Pull: 12000
Remote Included: Yes
Remote Type: Wire
Requires Mount: Yes
Solenoid Type: Contactor
Tree Saver: No
Type: Electric
Voltage: 12V
Winch Rating: Electric
