Warn 101135 - Industries Axon 3500 Wire Winch

Warn  |  SKU: WARN-101135
Sale price $53999 Regular price $67499

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

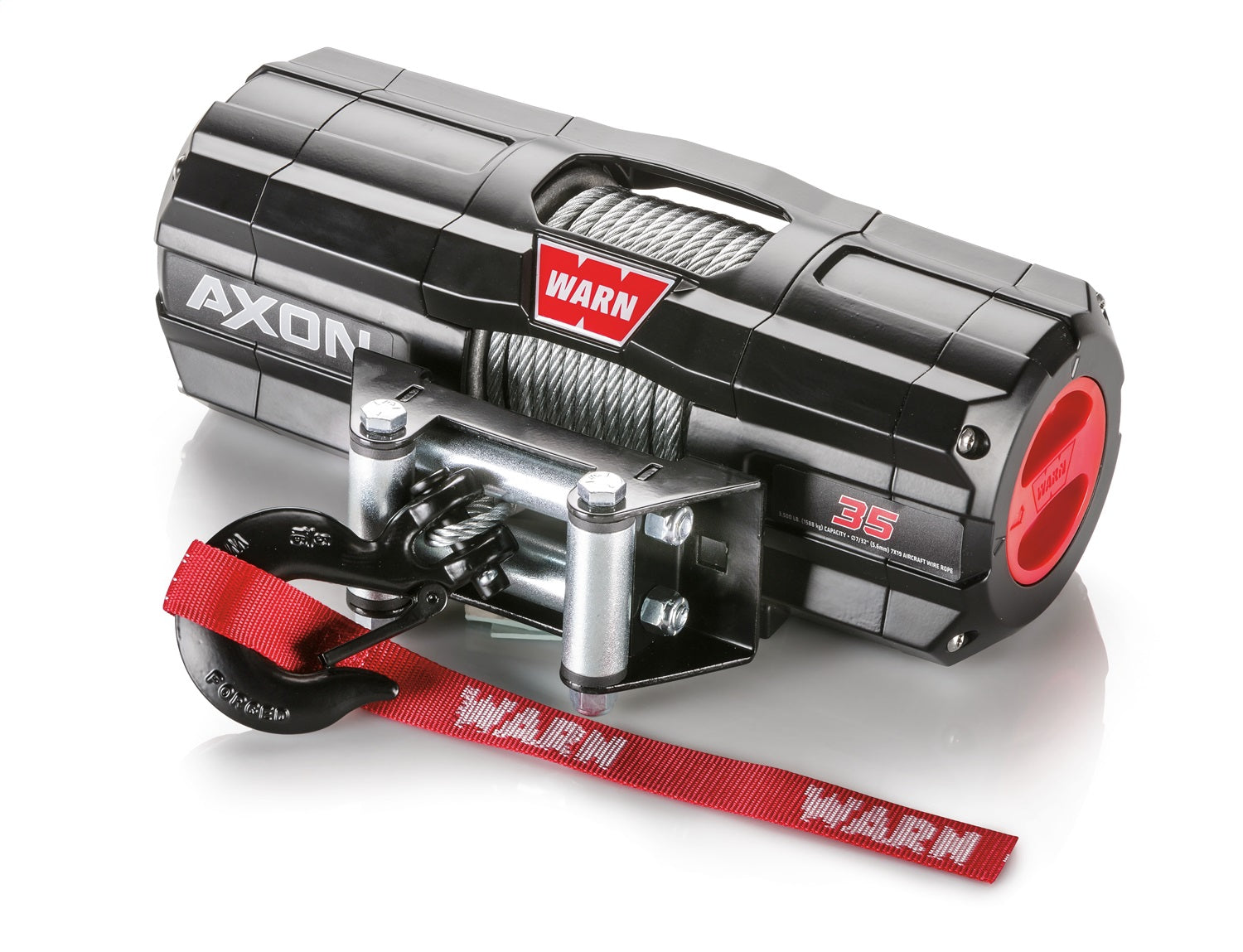

Warn 101135 - Industries Axon 3500 Wire Winch

AXON Powersport Winch; Series 35; 3500 lbs./1588 kg; Inc. EPIC Hawse Fairlead; 50 ft. Steel Rope; Rockerbar Digital Control Switch;

Rocky terrain, unpredictable conditions, and unexpected challenges can make anyone feel the heat. That's why WARN's new AXON w inches take an already legendary reputation for proven performance to a whole new level. Re-engineered from the ground up, AXON w inches completely protect critical components from water and mud with critical electronics sealed inside the metal housing.And with revolutionary new technology, AXON is the most advanced powersports Winch ever. With the all-new AXON(TM) lineup, WARN has taken Winching to the next level by combining a powerful motor and first-of-its-kind digital contactor into one unit called a Motactor(TM). The WARN Motactor(TM) increases performance, drops installation time, and provides never-before-seen levels of performance and feedback to the user. Tech is nothing without durability, so we made AXON the most durable powersports Winch ever. All-metal construction, waterproof sealing, and increased structural rigidity are made for extreme environments. It's smart, tough, and perfect for a wide range of powersports vehciles. Available in 3,500, 4,500, and 5,500 pulling capacities, with a choice of steel or Spydura(TM) synthetic rope.

  • AXON 35 includes 50’ of durable 7/32” steel rope, roller fairlead, and black hook
  • Stout 3,500 lb. capacity for riders who push the limits
  • Revolutionary Motactor™ combines motor and contactor for easy installation, best performance
  • Digital control offers never-before seen levels of reliability and user feedback, including load and temperature info
  • Durable all-metal construction and one-piece tie plate (vs. tie bars) for increased structural rigidity
  • IP68 waterproofing keeps water and the elements out

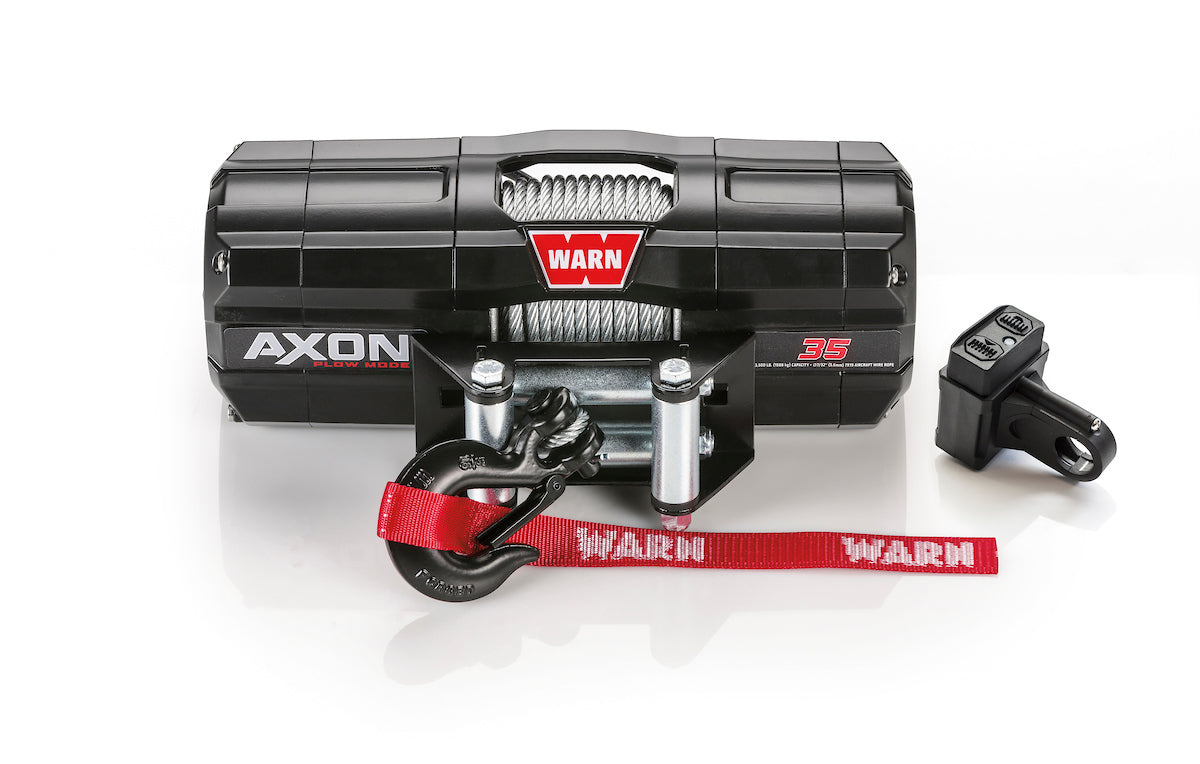

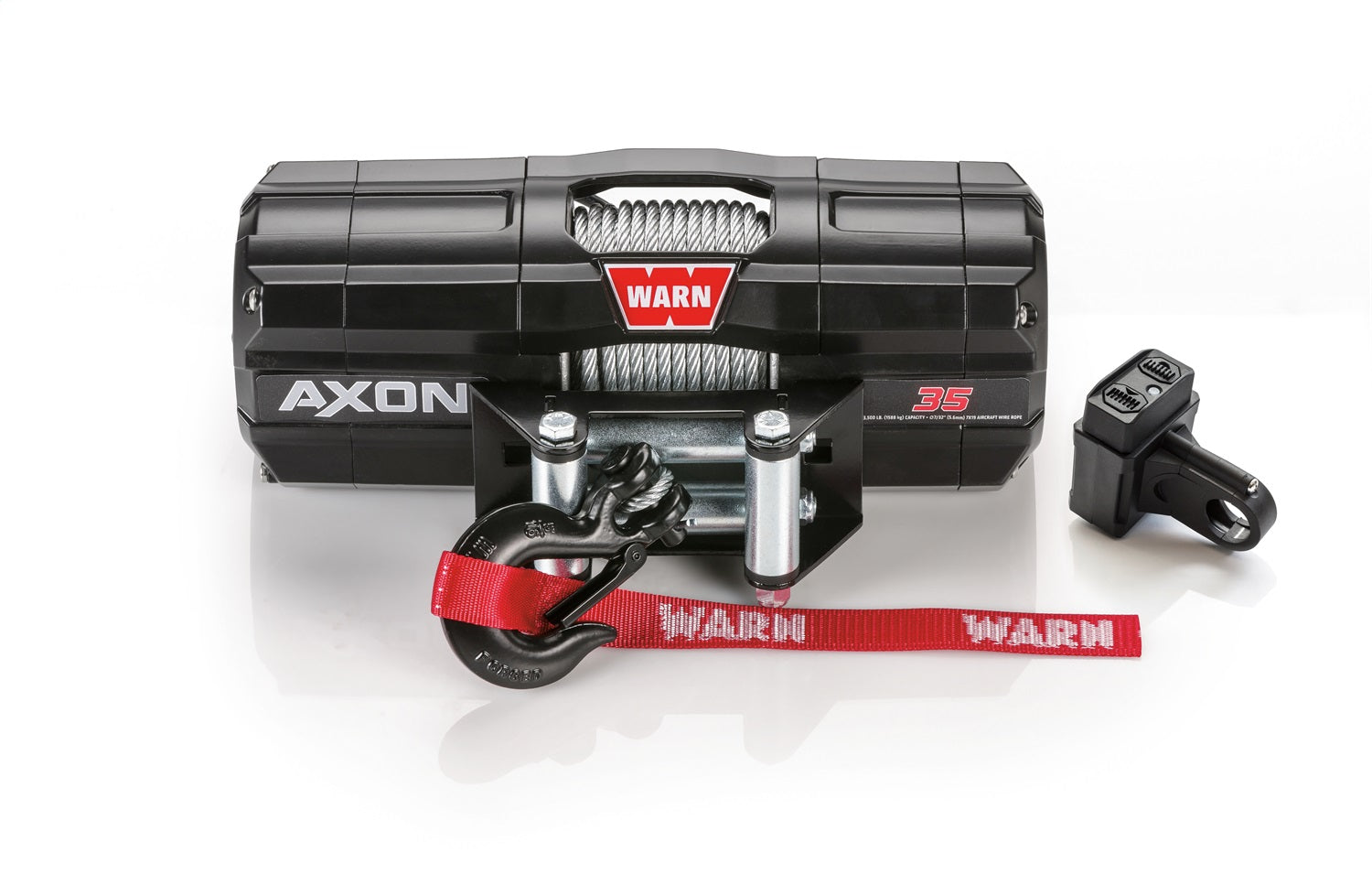

  • Rockerbar digital control switch with handlebar mount adaptor
  • Satin black powder-coated finish and stainless steel fasteners for corrosion resistance
  • New clutch design based on legendary WARN 4WD hub lock know-how
  • Load-holding brake for great control
  • Smooth and reliable all-metal three-stage planetary gear train
  • Limited lifetime warranty (mechanical), 3 year warranty (electrical)
Brake Activation: Automatic
Brake Type: Drum
Cable Diameter: 7/32
Cable Length: 50
Cable Material: Galvanized Steel
D Shackle Included: No
Fairlead Type: Roller
Free Spooling: Yes
Gear Ratio: 168:1
Gearing: 3-Stage Planetary
Length: 13.3
Maximum Height: 4.8
Maximum Width: 4.6
Motor Type: Permanent Magnet
Motor Voltage: 12V
Mounting Bolt Pattern Length: 4.87
Mounting Bolt Pattern Width: 3
Mounting Hole Quantity: 4
Power Out: Yes
Rated Line Pull: 3,500
Type: Electric
Voltage: 12V
