Warn 101130 - Industries Axon 3500 Winch w/Synthetic Rope

Warn  |  SKU: WARN-101130
Sale price $62399 Regular price $68639

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

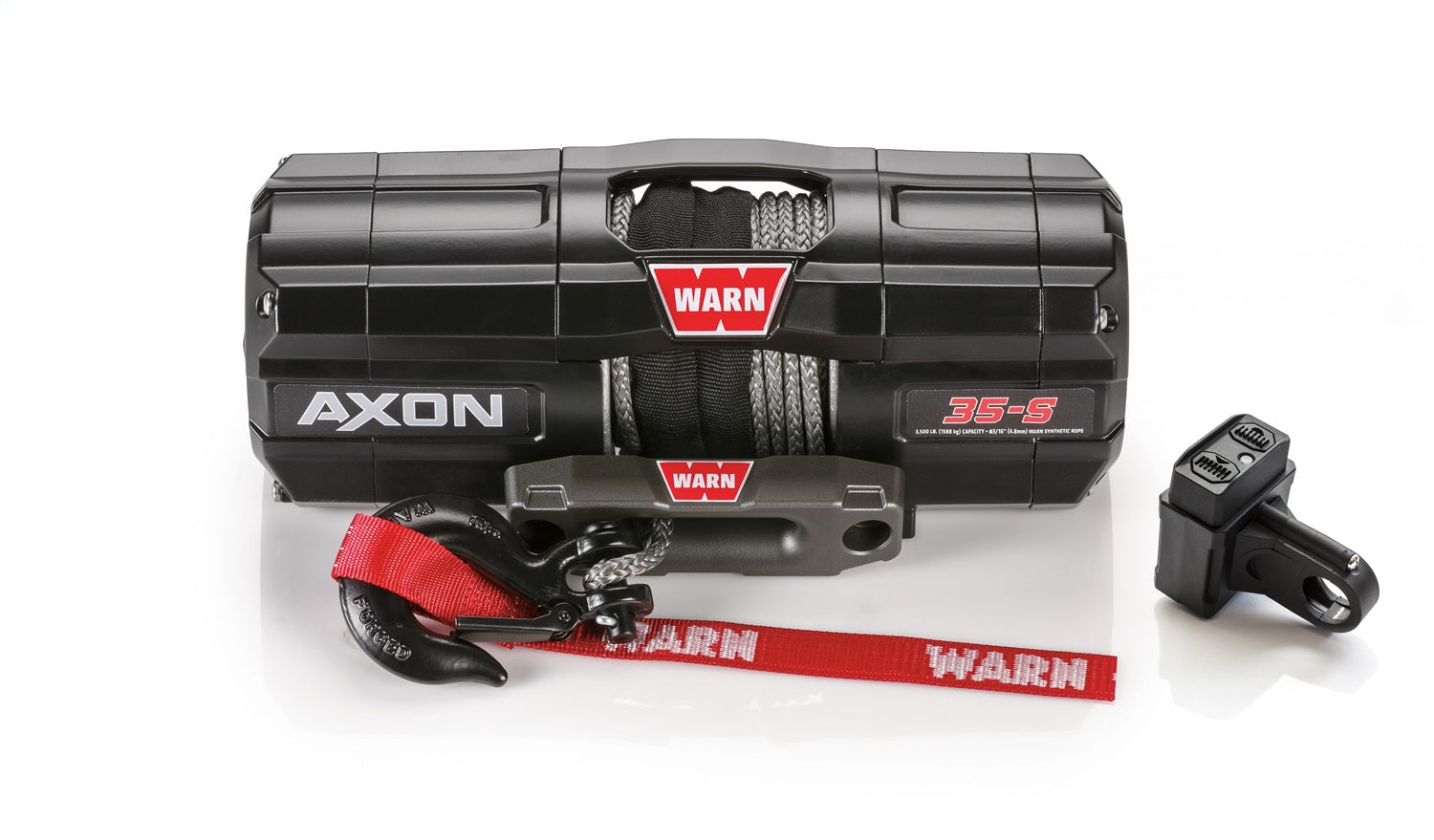

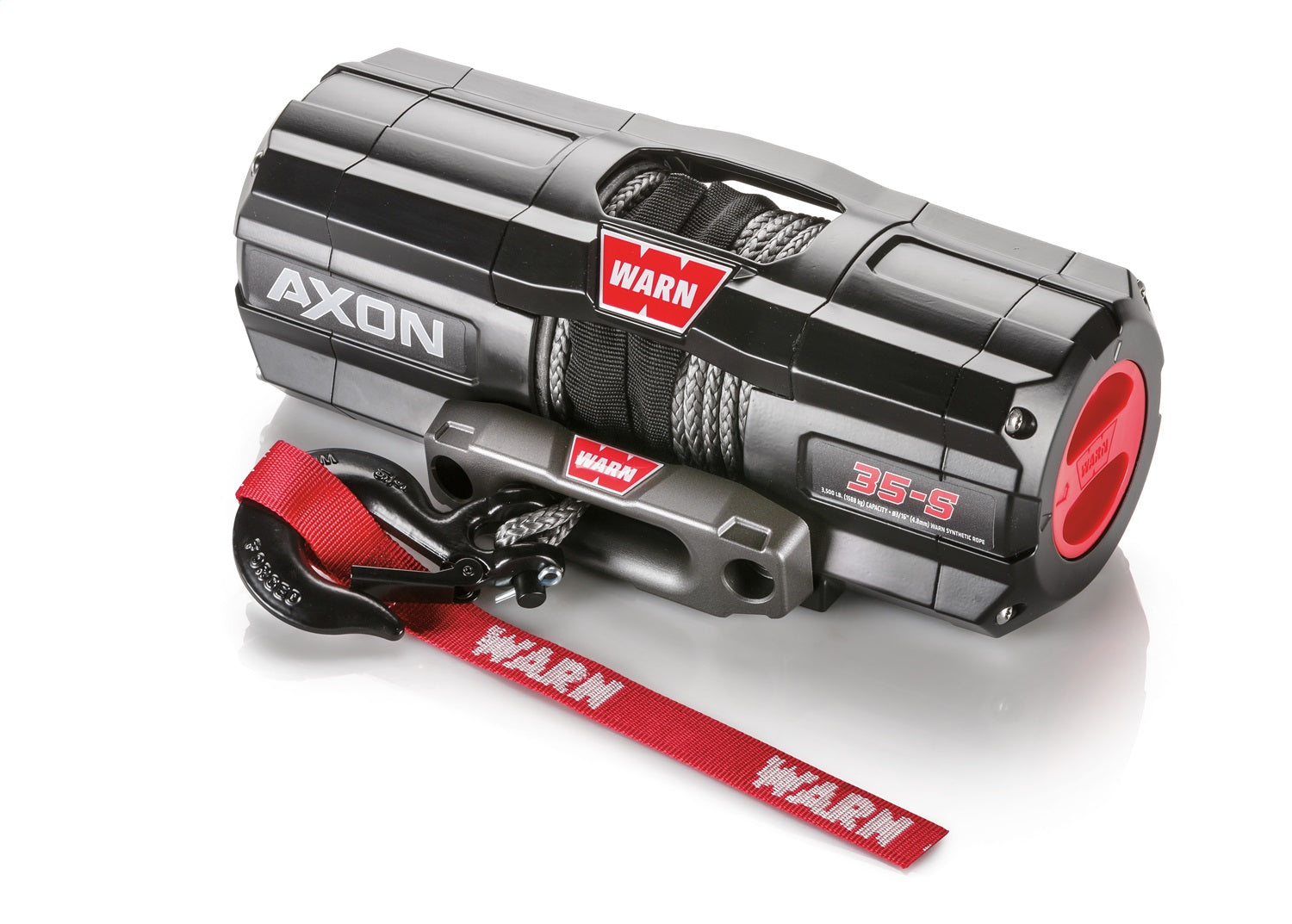

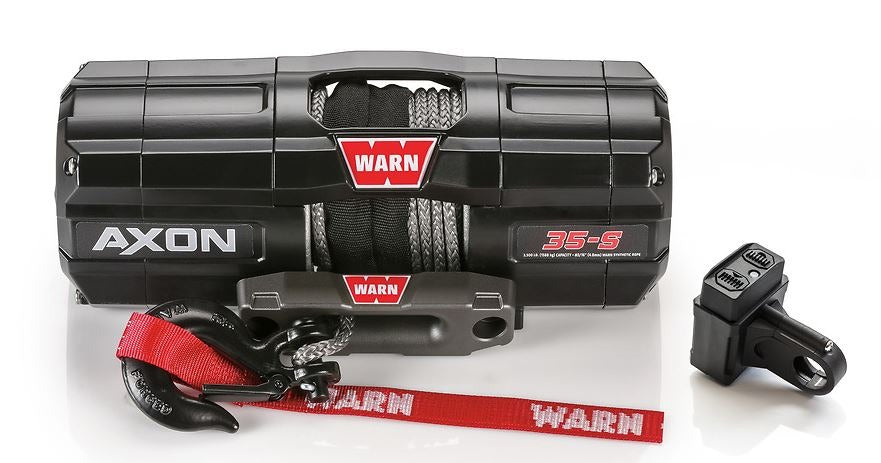

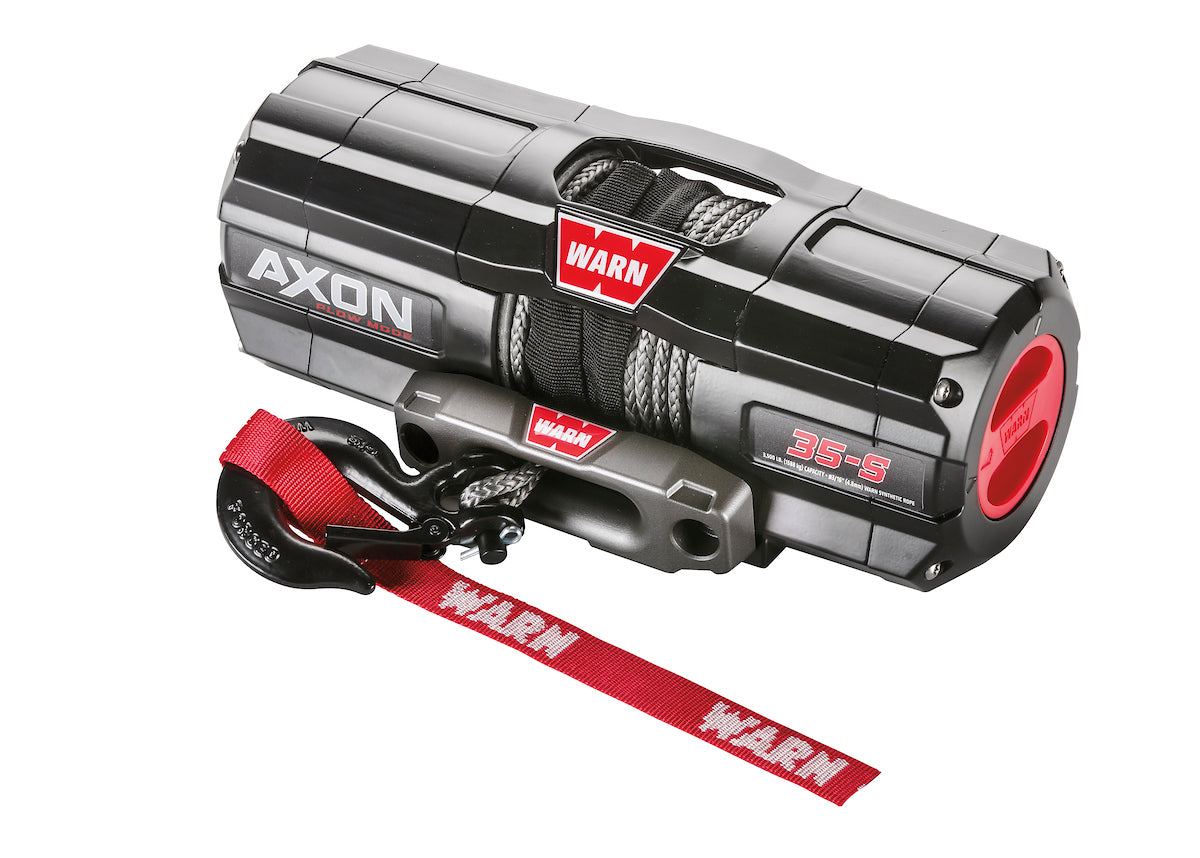

Warn 101130 - Industries Axon 3500 Winch w/Synthetic Rope

AXON Powersport Winch

The AXON 35-S includes 50-ft. of lightweight, easy-to-handle 3/16-in. Spydura synthetic rope, an Epic hawse fairlead, and black hook. Excellent for big ATVs or smaller UTVs. AXON is the ultimate powersports winch featuring Plow Mode.

Rocky terrain, unpredictable conditions, and unexpected challenges can make anyone feel the heat. That's why WARN's new AXON w inches take an already legendary reputation for proven performance to a whole new level. Re-engineered from the ground up, AXON w inches completely protect critical components from water and mud with critical electronics sealed inside the metal housing.And with revolutionary new technology, AXON is the most advanced powersports Winch ever. With the all-new AXON(TM) lineup, WARN has taken Winching to the next level by combining a powerful motor and first-of-its-kind digital contactor into one unit called a Motactor(TM). The WARN Motactor(TM) increases performance, drops installation time, and provides never-before-seen levels of performance and feedback to the user. Tech is nothing without durability, so we made AXON the most durable powersports Winch ever. All-metal construction, waterproof sealing, and increased structural rigidity are made for extreme environments. It's smart, tough, and perfect for a wide range of powersports vehciles. Available in 3,500, 4,500, and 5,500 pulling capacities, with a choice of steel or Spydura(TM) synthetic rope.

  • AXON 35-S includes 50-ft. of lightweight, easy-to-handle 3/16-in. Spydura synthetic rope, Epic hawse fairlead, and black hook
  • Stout 3,500 lb. capacity for riders who push the limits
  • Revolutionary Motactor™ combines motor and contactor for easy installation, best performance
  • Digital control offers never-before seen levels of reliability and user feedback, including load and temperature info
  • Durable all-metal construction and one-piece tie plate (vs. tie bars) for increased structural rigidity
  • IP68 waterproofing keeps water and the elements out
  • Rockerbar digital control switch with handlebar mount adaptor
  • Satin black powder-coated finish and stainless steel fasteners for corrosion resistance
  • New clutch design based on legendary WARN 4WD hub lock know-how
  • Load-holding brake for great control
  • Smooth and reliable all-metal three-stage planetary gear train
  • Limited lifetime warranty (mechanical), 3 year warranty (electrical)
  • Plow mode allows for simplified plow controls and operation. Lets you set lifting limits and has one-touch control
  • Designed, engineered, and assembled in the USA
Gearing: 3-Stage Planetary
Length: 13.3
Maximum Height: 4.8
Maximum Width: 4.6
Motor Type: Permanent Magnet
Motor Voltage: 12V
Requires Mount: Yes
Mount Type: Fixed Mount
Mounting Bolt Pattern Length: 4.87
Mounting Bolt Pattern Width: 3
Mounting Hole Quantity: 4
Power Out: Yes
Rated Line Pull: 3500
Type: Electric
Voltage: 12V
Brake Activation: Automatic
Brake Type: Drum
Cable Diameter: 3/16
Cable Length: 50
Cable Material: Synthetic Rope
D Shackle Included: No
Fairlead Type: Hawse
Free Spooling: Yes
Gear Ratio: 168:1
