Wagner Tuning 200001160 - Competition Intercooler Kit Ford Ford Ranger 2.2Tdci

Wagner Tuning 200001160 - Competition Intercooler Kit Ford Ford Ranger 2.2Tdci

Experience a performance boost and improved cooling With the Wagner Tuning Competition high performance intercooler for the Ford Ranger. With an innovative Competition Intercooler core (Tube Fin) and impressive dimensions of 660 mm x 282 (254) mm x 120 (65) mm (stepped), this intercooler offers an external core volume of 21.3 liters.

This means a 32 Percent larger frontal flow area and an incredible 279 Percent more external core volume compared to the stock intercooler.

The Cast aluminum end boxes were CAD designed and optimized using CFD simulations to ensure ideal internal airflow. Thanks to special air routing in the cooler inlet, uniform filling of the intercooler intercooler core is achieved.

The result is outstanding cooling properties with minimal backpressure. In addition, the innovative competition high-performance intercooler core ensures sufficient airflow for neighboring components such as the water cooler and is also very lightweight.

Look forward to optimal cooling of the supercharged air and a noticeable increase in performance! Our Wagner Tuning charge air coolers are provided with a high-quality anti-corrosion coating that offers excellent heat conduction properties. Thus, they are optimally protected from environmental influences and ensure a lasting and optimal cooling effect. Installation is very simple on the original mounting points and is a plug-and-play operation.

You do not need any additional adjustments. At Wagner Tuning, we continuously place great emphasis on qualitative monitoring to provide you With the best possible product quality.
Discover the Wagner Tuning Competition high-performance intercooler now and experience a new dimension of performance and cooling for your Ford Ranger. Get your vehicle ready for impressive driving experiences!

The Wagner Tuning Competition Intercooler Kit for Ford Ranger:

• Ford Ranger PX2 2.2TDCi (96KW-125KW/130-170PS) 2016-2019.
• Inlet diameter 60 mm; Exhaust diameter 60 mm

Core dimensions OEM intercooler:

• 670 mm x 210 mm x 40 mm
• V = 5.62 L
• A = 1407 cm

Core dimensions Wagner Tuning intercooler:

• 660 mm x 282 (254) mm x 120 (65) mm (staggered)
• V = 21,3L
• A = 1861 cm

Part number: 200001160

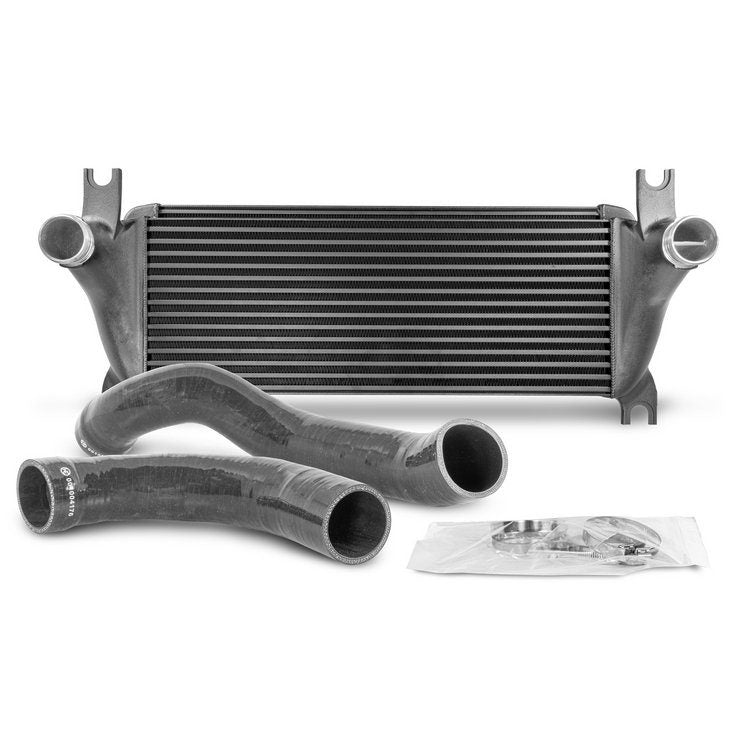

Kit Comes With:

• 1 intercooler
• 2 silicone hoses
• 1 mounting material
• 1 installation instruction
