Wagner Tuning 200001148 - Competition Intercooler Kit Ford Ford Ranger 3.2Tdci

Wagner Tuning 200001148 - Competition Intercooler Kit Ford Ford Ranger 3.2Tdci

Increase the power and performance of your Ford Ranger diesel engine With the Wagner Tuning high performance intercooler. This impressive kit was developed specifically for the requirements of the Ford Ranger and makes your off-road adventure even more exciting.

The high performance intercooler features a new Competition core (Tube Fin) measuring 660 mm x 282 (254) mm x 120 (65) mm (stepped). This core offers 32 Percent more frontal surface area and 279 Percent more core volume compared to the stock intercooler. Feel the difference and experience improved performance with your Ford Ranger.

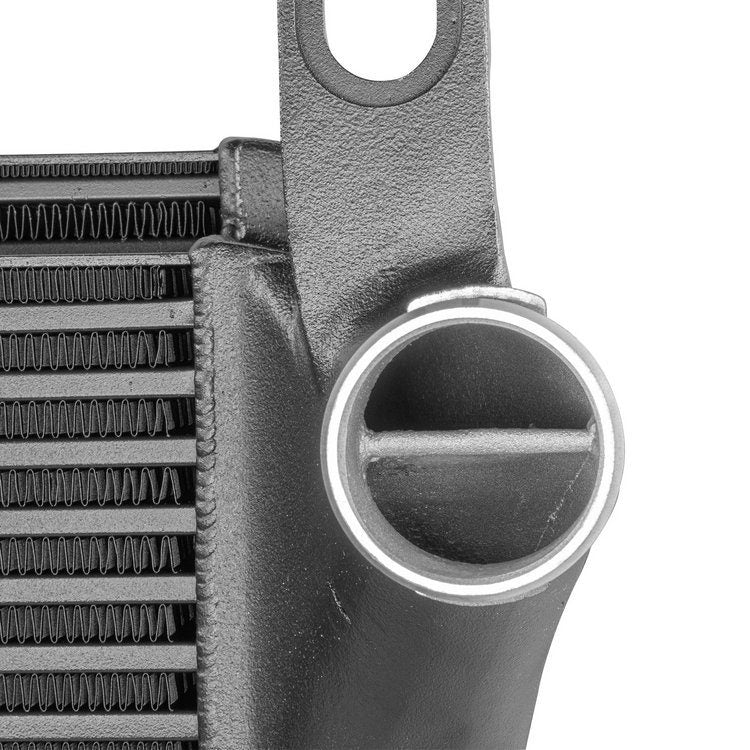

The Cast aluminum tanks were precisely designed in CAD and optimized in CFD simulations to ensure ideal internal airflow. Integrated air routing in the intercooler inlet ensures even filling and maximum cooling performance. The result is an outstanding cooling effect with minimal backpressure.

The newly developed Competition high-performance core is also particularly lightweight and ensures sufficient airflow to adjacent components such as the water cooler. Enjoy optimal cooling of the supercharged air and experience a significant increase in performance.

The Wagner Tuning high-performance intercooler is equipped with a high-quality anti-corrosion coating that offers excellent thermal conductivity and protects the intercooler from environmental influences. This ensures long-lasting and optimal cooling performance. Installation is done by replacing the stock intercooler and is easy to perform (plug and play). Rely on our products, which are subject to continuous quality monitoring.

Enhance the performance of your Ford Ranger and be amazed by the impressive power and cooling performance of the Wagner Tuning high performance intercooler.
Inlet diameter 60 mm; outlet diameter 60 mm

• Competition Charge Air Cooler Kit for Ford Ranger:
• Ford Ranger PX2 3.2TDCi (147kw/200hp) 2015-2019.
• (for pre-facelift models, slight grille adjustment work is required).

Core dimensions OEM intercooler:

• 670mm x 210mm x 40mm
• V = 5,62 L
• A = 1407 cm

Core dimensions Wagner Tuning intercooler:

• 660 mm x 282 (254) mm x 120 (65) mm (staggered)
• V = 21,3L
• A = 1861 cm

Part number: 200001148

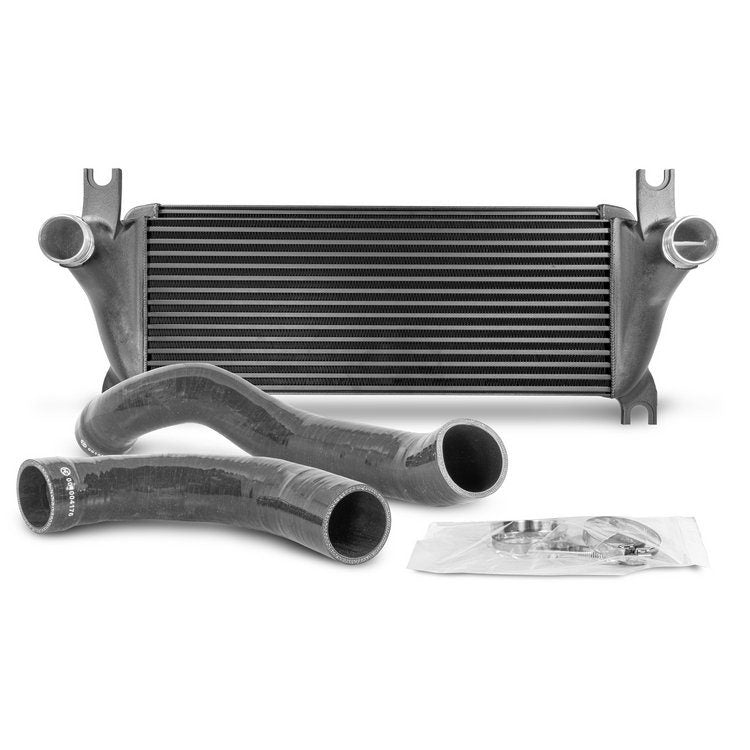

The Kit Comes With:

• 1 intercooler
• 2 silicone hoses
• 1 mounting material
• 1 installation instruction
