VMP Performance VMP-INM029 - IAT Harness Pigtail 14 & Older (Plastic style)
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
This is because the item is either a clearance item, or it may be made to order. Ask all questions before ordering.
This Item is NOT IN STOCK and may have an EXTENDED LEAD TIME.
IF YOU ARE IN A RUSH - DO NOT ORDER
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
Description
Description

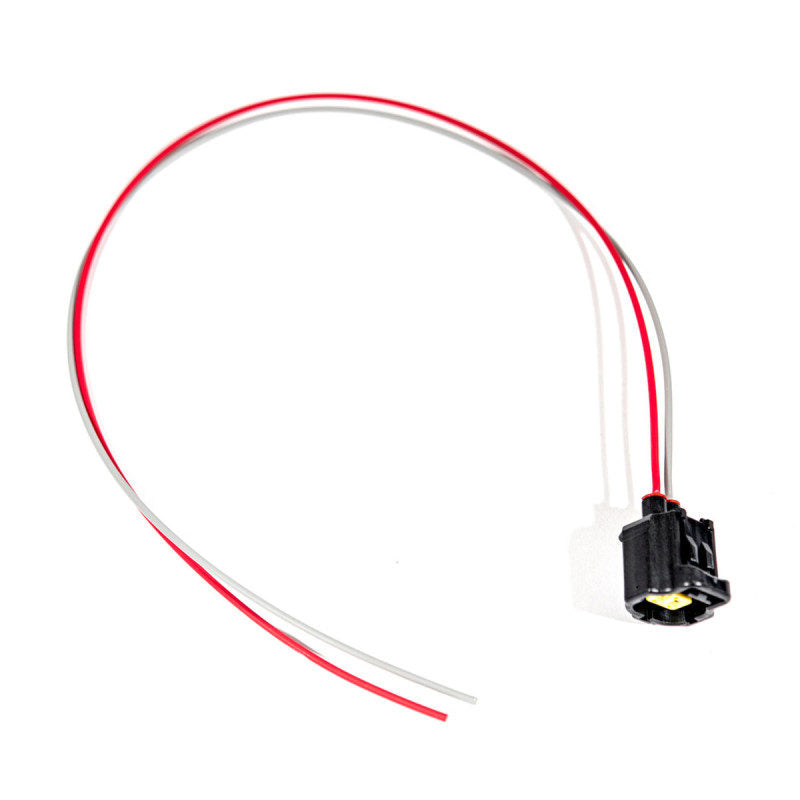

VMP Performance VMP-INM029 - IAT Harness Pigtail 14 & Older (Plastic style)
VMP IAT Harness Pigtail '14 and older (Plastic style)
Connector for 96+ IAT / ACT sensors. Includes 12 of wire. Can be used with threaded style sensor from Lightning/Cobra or push-in style sensors found on 96-00.To avoid potential problems this harness should be soldered. When hooking this harness up polarity does not matter. On forced induction vehicles the air temp sensor must be mounted after the compressor or intercooler, so the computer can read the temp of the actual air going into the engine. This is very important for a safe tune. Starting in 01/02 most Ford vehicles went to an air temp sensor that was built into the MAF sensor, if your MAF is mounted in suck-through before the blower you must relocate the IAT. On 01-04 the gray wires pin 1 and pin 6 are for the IAT sensor, cut them and solder in the IAT sensor harness. On 05+ the gray wires pin 1 and pin 2 are for the IAT sensor, cut them and solder in the IAT sensor harness.
- VMP IAT Harness Pigtail '14 and older (Plastic style)
