Vibrant 14963 - 304 Stainless Steel V-Band Wastegate Flange for Tial V60 60mm - Inlet Side
Vibrant | SKU:
VIB-14963
Sale price
$4099
Regular price
$4299
Unit price
/
Unavailable
$2.00 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

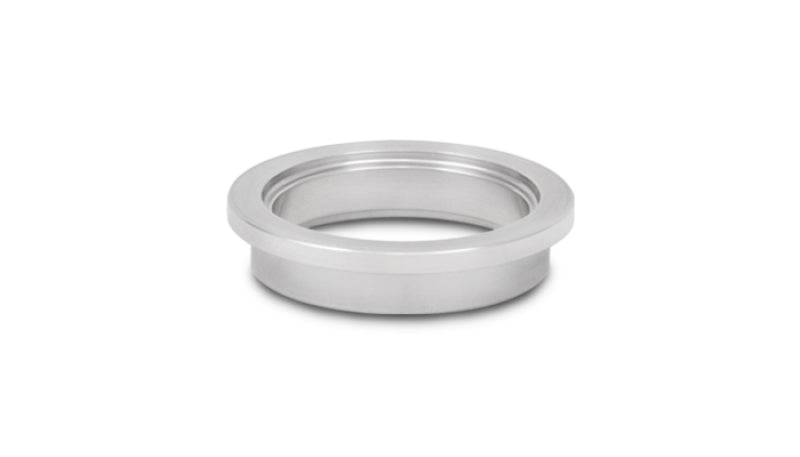

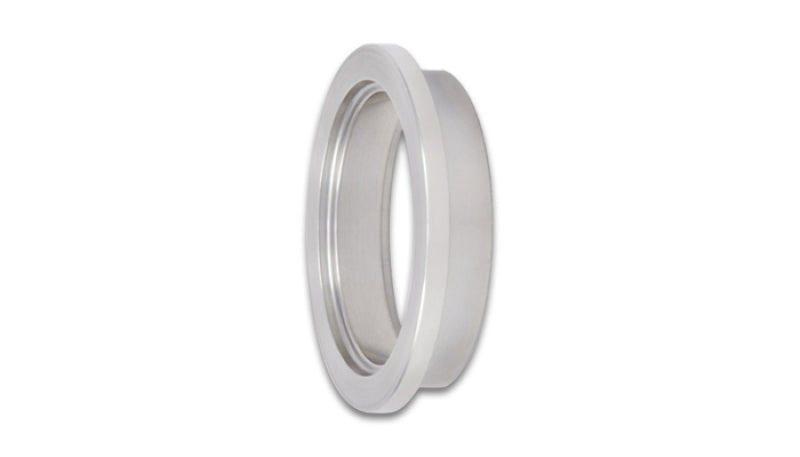

Vibrant 14963 - 304 Stainless Steel V-Band Wastegate Flange for Tial V60 60mm - Inlet Side
V-Band Style Inlet Flange for Tial 60mm Wastegate
Wastegate Inlet Flange; 2.5 in. TRID; 78.8mm Flange OD; 3.8mm Apex Width; 304 Stainless Steel; 67mm CRMD; 2mm CRMDH; 67.4mm CRFD; 1.8mm CRFDD; 12.3mm Thickness; 54mm Port ID;
Vibrant Performance wastegate flanges allow you to fit a specific wastegate or adapt one wastegate to another. They're precision laser-cut or CNC-machined to ensure a perfect fit to your turbo manifold. Available in mild steel, stainless steel, and titanium. For Tial V60 60mm.
- Stainless Steel
- Designed For 44mm Wastegates
- 1 Year Limited Warranty
Add-On: N/A
Apex Width: 3.8
Centering Ring Female Diameter Depth: 1.8
Centering Ring Female Diameter: 67.36
Centering Ring Male Diameter Height: 2
Centering Ring Male Diameter: 67
Flange O.D.: 78.8
Material: 304 Stainless Steel
Port I.D.: 54
Sale Segment: Turbo Flanges and Fittings
Thickness: 13.3
Tube Recess I.D.: 2.5
Web Category: Wastegate Flanges
