Vibrant 1443 - T06 Turbo Inlet Flange (Divided Inlet) T304 SS 1/2in Thick

Vibrant  |  SKU: VIB-1443
$6299 $7699

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

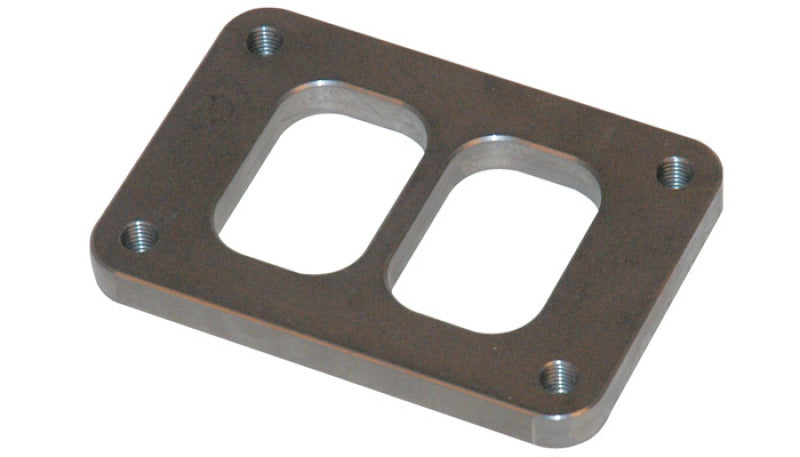

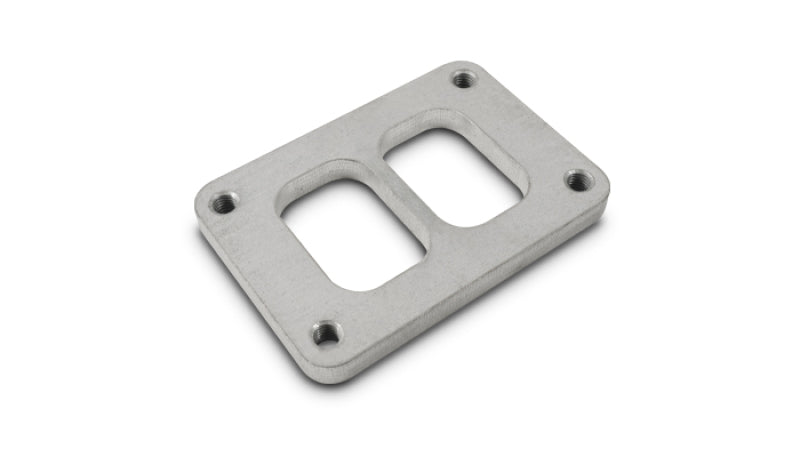

Vibrant 1443 - T06 Turbo Inlet Flange (Divided Inlet) T304 SS 1/2in Thick

T06 Turbo Inlet Flange (Divided Inlet) - 1/2" thick

Turbo Inlet Flange; 69.9MM BHCCH; 114.3MM BHCCW; M10X1.5 BHTS; 91.9MM Overall H; 136.7MM Overall W; 0.5 in. Thickness; 58.9MM Port H; For T06 Divided Inlet; 304 Stainless Steel;

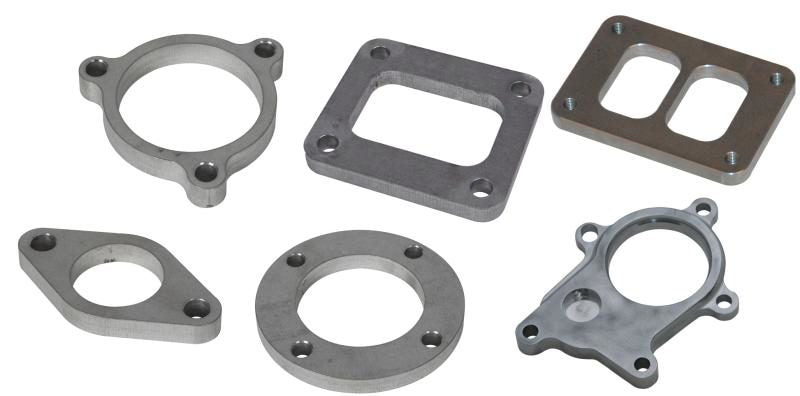

Vibrant Performance stainless steel turbo flanges are constructed entirely from 304 stainless steel and are designed with the turbo fabricator in mind. Vibrant Performance turbo flanges are available for all of the industry leading turbo chargers and are offered for turbo inlet, external Wastegate, and turbo discharge applications. Standard 4-bolt, V-Band, divided, transition, complex multi bolt and block off turbo flanges are all available.

  • Stainless Steel
  • Prevents Warping Due To High Heat
  • Tapped Holes
  • Bolt Pattern 4.5 in. x 2.75 in.
  • 1 Year Limited Warranty
Port Height: 58.85
Port Width: 40.15
Sale Segment: Turbo Flanges and Fittings
Thickness: 0.5
Web Category: Turbine Inlet Flanges
Add-On: N/A
Bolt Hole Center to Center Height: 69.85
Bolt Hole Center to Center Width: 114.3
Bolt Hole Thread Size: M10 x 1.5
Material: 304 Stainless Steel
Overall Height: 91.9
Overall Port Width: 87.4
Overall Width: 136.7
