Vibrant 14420 - T04 Turbo Inlet Flange (Divided Inlet) Mild Steel 1/2in Thick
Vibrant | SKU:
VIB-14420
Sale price
$4799
Regular price
$5599
Unit price
/
Unavailable
$8.00 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

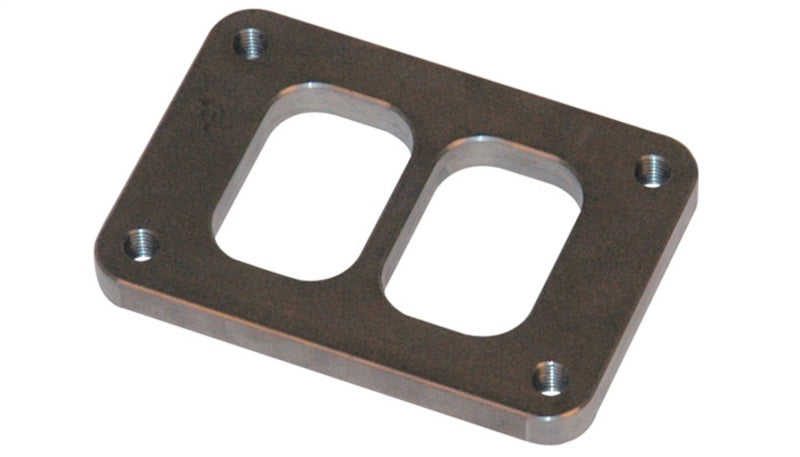

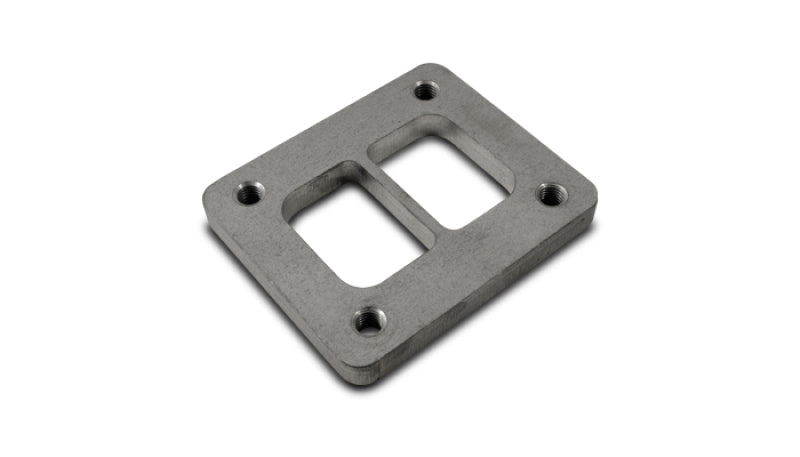

Vibrant 14420 - T04 Turbo Inlet Flange (Divided Inlet) Mild Steel 1/2in Thick
Turbo Inlet Flange - 0.5 in Thick - Steel - T4 - Divided - Each
Turbo Inlet Flange; 69.9MM BHCCH; 82.6MM BHCCW; M10X1.5 BHTS; 95MM Overall H; 108MM Overall W; 0.5 in. Thickness; 50.3MM Port H; 34.5MM Port W; For T04 Divided Inlet; Mild Steel;

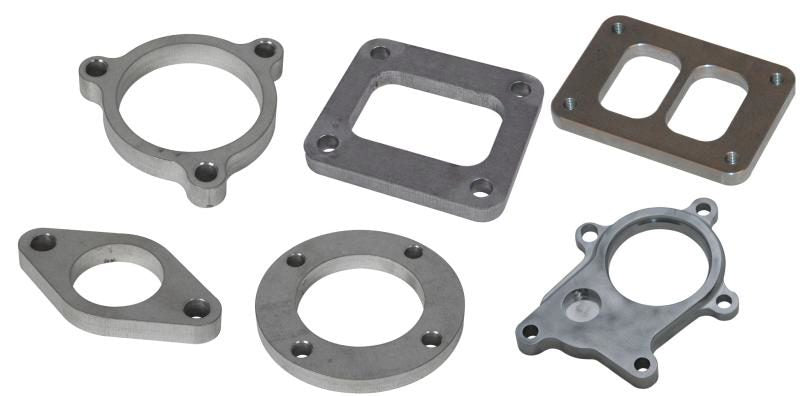

Vibrant Performance mild steel turbo flanges are designed with the turbo fabricator in mind. Vibrant Performance turbo flanges are available for all of the industry leading turbo chargers and are offered for turbo inlet, external Wastegate, and turbo discharge applications. Standard 4-bolt, complex multi bolt and block off turbo flanges are all available.
- 1018 Mild Steel
- 0.5 in. Thick To Prevent Warping
- Drilled Holes
- Bolt Pattern 3.375 in. x 2.75 in.
- 6 Month Limited Warranty
Add-On: N/A
Bolt Hole Center to Center Height: 69.85
Bolt Hole Center to Center Width: 82.6
Bolt Hole Thread Size: M10 x 1.5
Material: Mild Steel
Overall Height: 95
Overall Port Width: 74.4
Overall Width: 108
Port Height: 50.3
Port Width: 34.5
Sale Segment: Turbo Flanges and Fittings
Thickness: 0.5
Web Category: Turbine Inlet Flanges
