Vibrant 1424 - External Wastegate Inlet Flange (V-Band Style) Tial MV-S T304 SS

Vibrant  |  SKU: VIB-1424
Sale price $3299 Regular price $3629

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

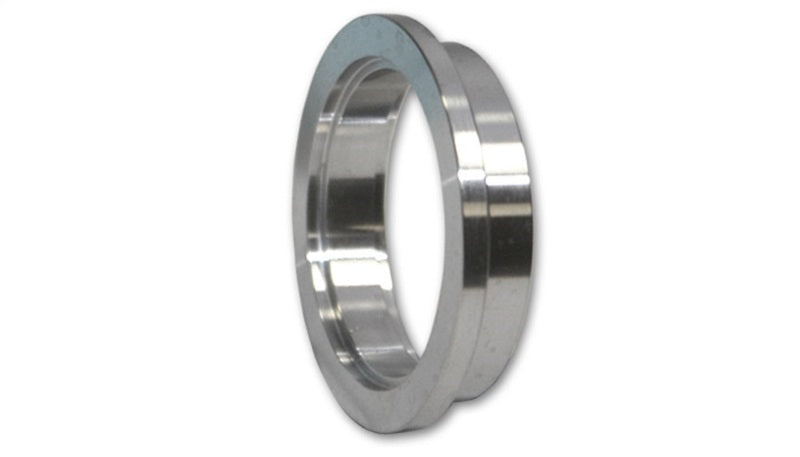

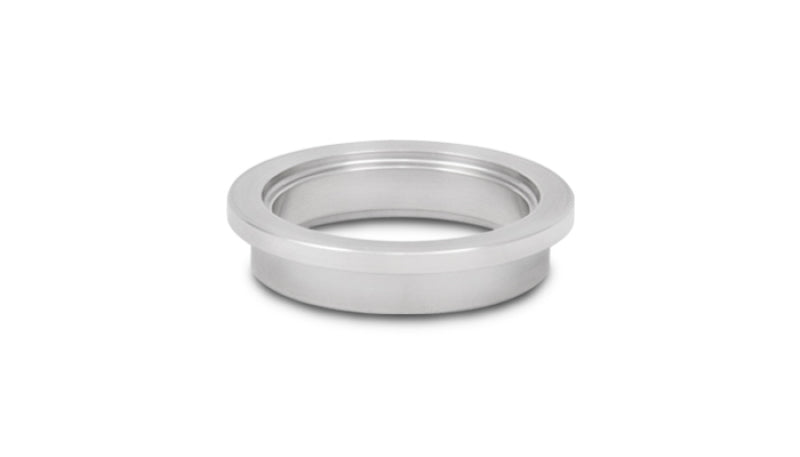

Vibrant 1424 - External Wastegate Inlet Flange (V-Band Style) Tial MV-S T304 SS

Turbo Inlet Flange - Adapter - V-Band - Stainless - Tial 38mm Minigate - Each

Wastegate Adapter Flange; 44MM CRMD; 44.2MM CRFD; 1.2MM CRMDH; 3MM Apex W; 13.7MM Thickness; 55.4MM Flange OD; 35MM Port ID; For Tial 38mm Minigate Inlet; 304 Stainless Steel;

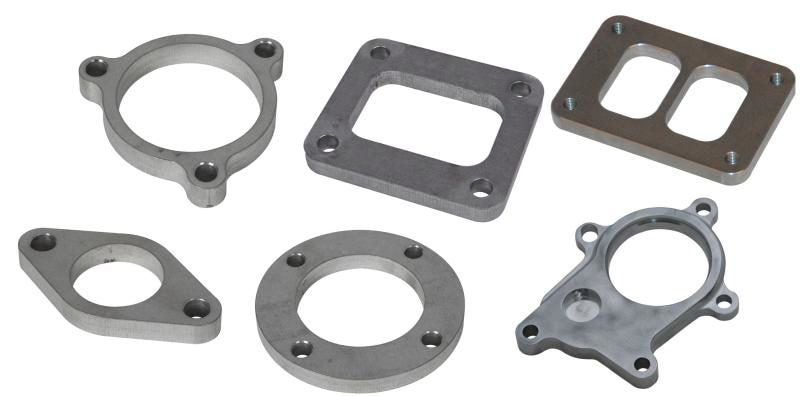

Vibrant Performance stainless steel turbo flanges are constructed entirely from 304 stainless steel and are designed with the turbo fabricator in mind. Vibrant Performance turbo flanges are available for all of the industry leading turbo chargers and are offered for turbo inlet, external Wastegate, and turbo discharge applications. Standard 4-bolt, V-Band, divided, transition, complex multi bolt and block off turbo flanges are all available.

  • Stainless Steel
  • 1 Year Limited Warranty
Add-On: N/A
Apex Width: 3
Centering Ring Female Diameter Depth: 1.15
Centering Ring Female Diameter: 44.2
Centering Ring Male Diameter Height: 1.19
Centering Ring Male Diameter: 44
Flange O.D.: 55.4
Material: 304 Stainless Steel
Port I.D.: 35
Sale Segment: Turbo Flanges and Fittings
Thickness: 13.66
Tube Recess I.D.: 1.75
Web Category: Wastegate Flanges
