Vibrant 14170 - T06 Turbo Inlet Flange Mild Steel 1/2in Thick

Vibrant  |  SKU: VIB-14170
$4399 $4799

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

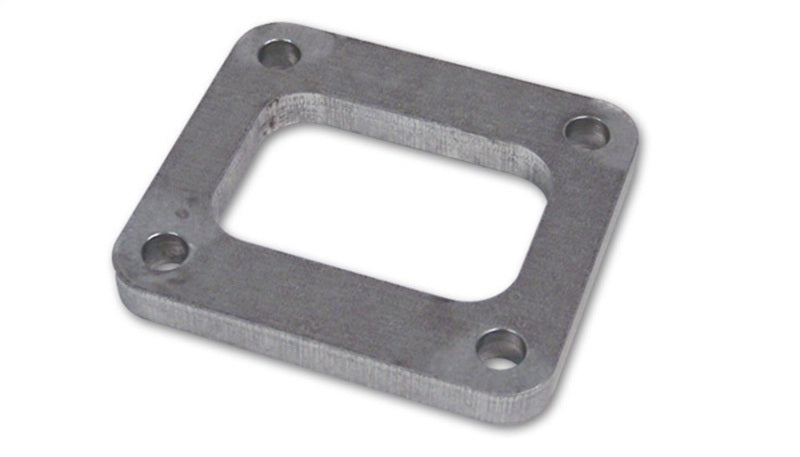

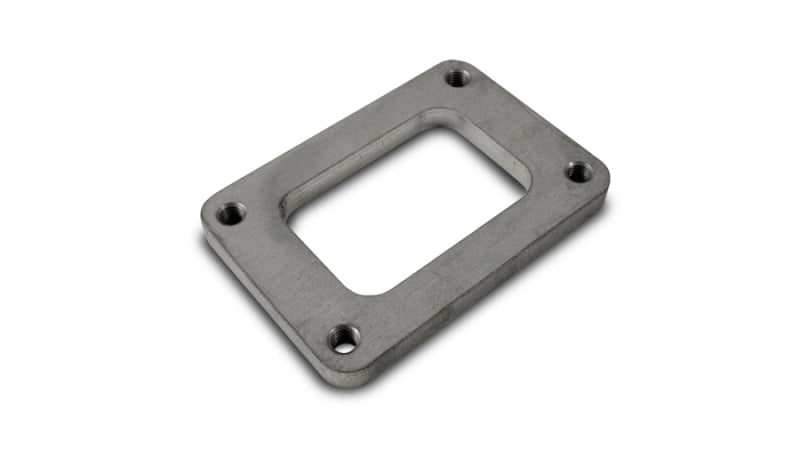

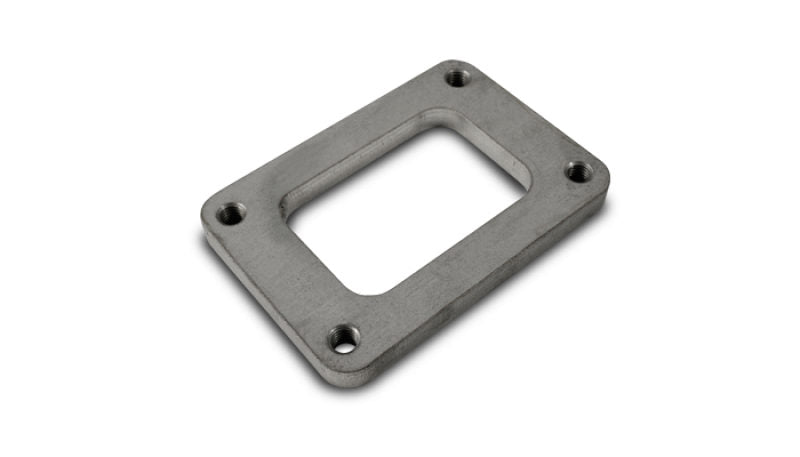

Vibrant 14170 - T06 Turbo Inlet Flange Mild Steel 1/2in Thick

Turbo Inlet Flange - 4-Bolt - 0.5 in Thick - Steel - T6 - Each

Turbo Inlet Flange; 69.9MM BHCCH; 114.3MM BHCCW; M10X1.5 BHTS; 95.9MM Overall H; 136.7MM Overall W; 0.5 in. Thickness; 58.7MM Port H; 87.5MM Port W; For T6; Mild Steel;

Vibrant Performance stainless steel turbo flanges are constructed entirely from 304 stainless steel and are designed with the turbo fabricator in mind. Vibrant Performance turbo flanges are available for all of the industry leading turbo chargers and are offered for turbo inlet, external Wastegate, and turbo discharge applications. Standard 4-bolt, V-Band, divided, transition, complex multi bolt and block off turbo flanges are all available.

  • 1018 Mild Steel
  • 0.5 in. Thick To Prevent Warping
  • Tapped Holes
  • 1 Year Limited Warranty
Port Width: 87.47
Sale Segment: Turbo Flanges and Fittings
Thickness: 0.5
Web Category: Turbine Inlet Flanges
Add-On: N/A
Bolt Hole Center to Center Height: 69.85
Bolt Hole Center to Center Width: 114.3
Bolt Hole Thread Size: M10 x 1.5
Material: Mild Steel
Overall Height: 95.9
Overall Port Width: 87.4
Overall Width: 136.7
Port Height: 58.7
