Vibrant 1417 - T06 Turbo Inlet Flange T304 SS 1/2in Thick

Vibrant  |  SKU: VIB-1417
$6199 $7499
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

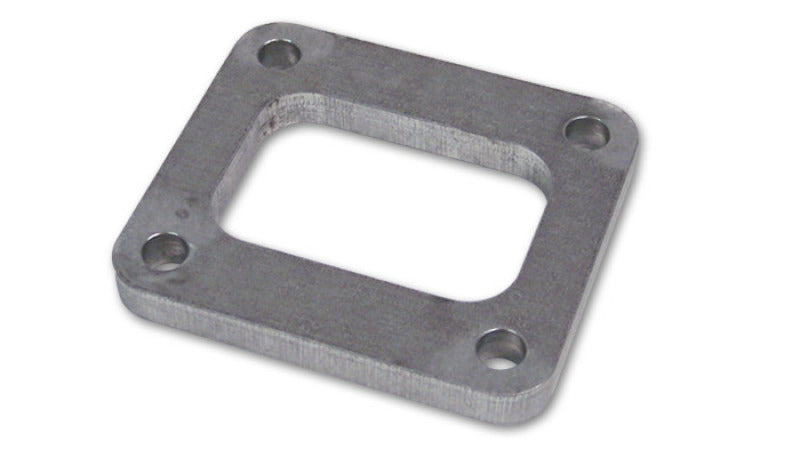

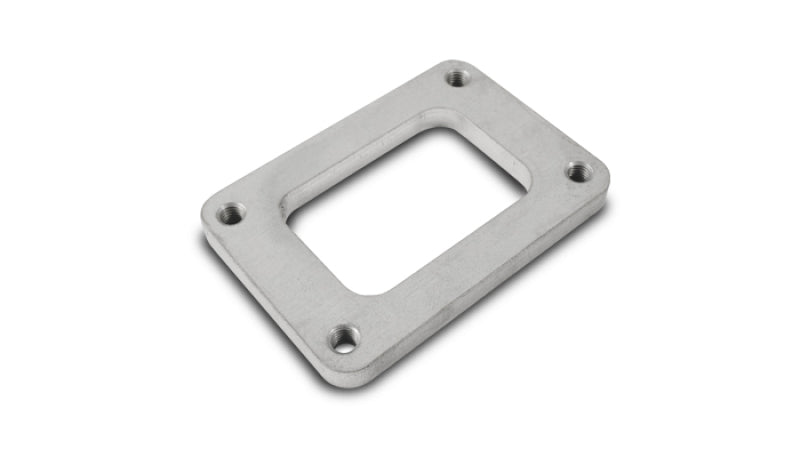

Vibrant 1417 - T06 Turbo Inlet Flange T304 SS 1/2in Thick

Turbo Inlet Flange - 4-Bolt - 0.5 in Thick - Stainless - T6 - Each

Turbo Inlet Flange; 69.9MM BHCCH; 112.75MM BHCCW; M10x1.5 BHTS; 95.9MM Overall H; 136.7MM Overall W; 0.5 in. Thickness; 60.5MM Port H; 87.5MM Port W; 304 Stainless Steel;

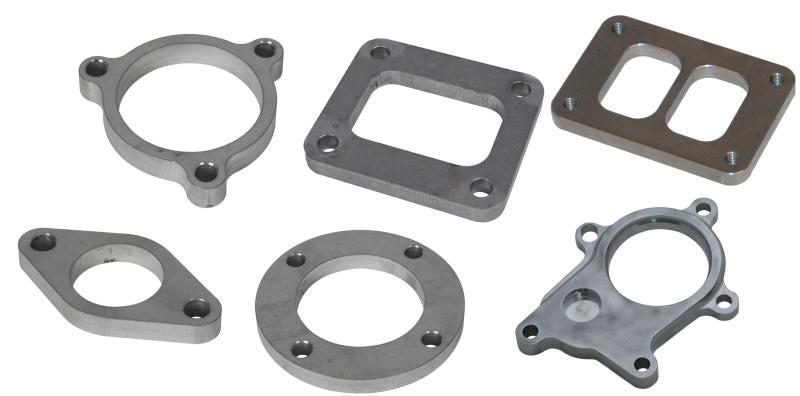

Vibrant Performance stainless steel turbo flanges are constructed entirely from 304 stainless steel and are designed with the turbo fabricator in mind. Vibrant Performance turbo flanges are available for all of the industry leading turbo chargers and are offered for turbo inlet, external Wastegate, and turbo discharge applications. Standard 4-bolt, V-Band, divided, transition, complex multi bolt and block off turbo flanges are all available.

  • Stainless Steel
  • Prevents Warping Due To High Heat
  • Tapped Holes
  • 1 Year Limited Warranty
Add-On: N/A
Material: 304 Stainless Steel
Overall Height: 95.9
Overall Port Width: 87.4
Overall Width: 136.7
Port Height: 60.5
Port Width: 87.47
Sale Segment: Turbo Flanges and Fittings
Thickness: 0.5
Web Category: Turbine Inlet Flanges
Bolt Hole Center to Center Height: 69.85
Bolt Hole Center to Center Width: 112.75
Bolt Hole Thread Size: M10 x 1.5
