Vibrant 1400 - GT30R/GT35R/GT40R Turbo Inlet Flange T304 SS 1/2in Thick (Tapped Holes)

Vibrant  |  SKU: VIB-1400
$5399 $6399

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

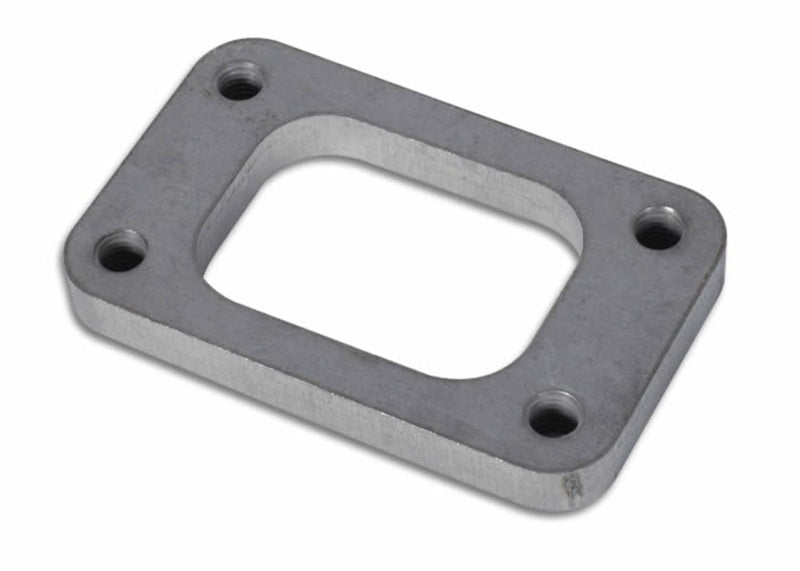

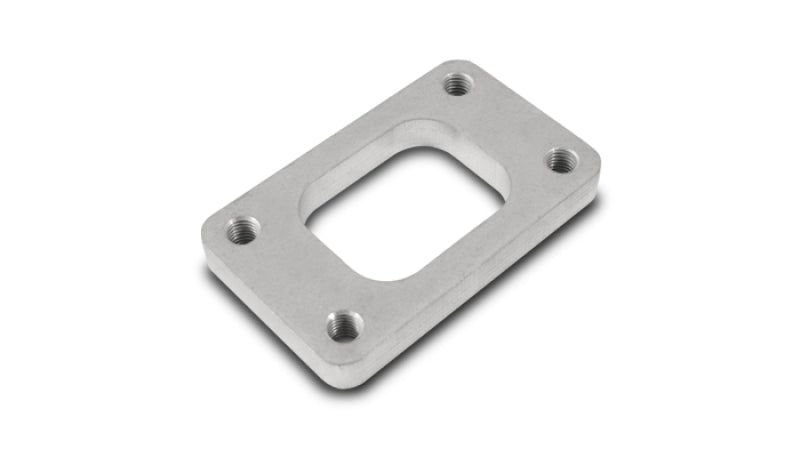

Vibrant 1400 - GT30R/GT35R/GT40R Turbo Inlet Flange T304 SS 1/2in Thick (Tapped Holes)

Turbo Inlet Flange - 4-Bolt - 1/2 in Thick - Stainless - Garrett GT30R / GT35R / GT40R - Each

Turbo Inlet Flange; 44.5MM BHCCH; 86MM BHCCW; M10x1.5 BHTS; 66.8MM Overall H; 108.2MM Overall W; 0.5 in. Thickness; For GT30R/GT35R/GT40R; 304 Stainless Steel;

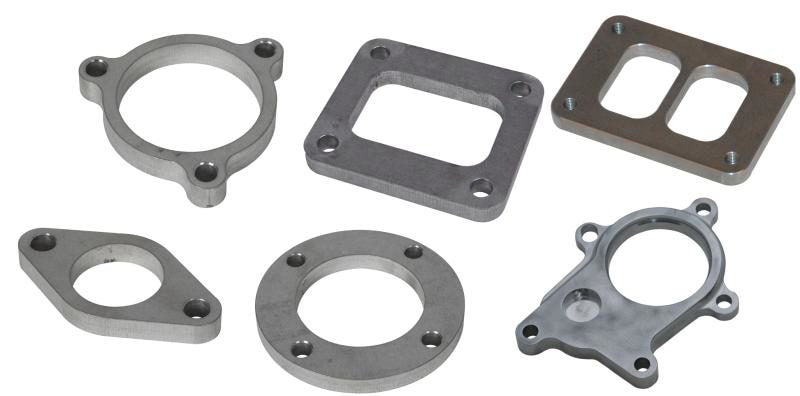

Vibrant Performance stainless steel turbo flanges are constructed entirely from 304 stainless steel and are designed with the turbo fabricator in mind. Vibrant Performance turbo flanges are available for all of the industry leading turbo chargers and are offered for turbo inlet, external Wastegate, and turbo discharge applications. Standard 4-bolt, V-Band, divided, transition, complex multi bolt and block off turbo flanges are all available.

  • T304 Stainless Steel
  • Prevents Warping Due To High Heat
  • Works w/GT30R/GT35R/GT40R Turbochargers
  • Tapped Holes
  • 1 Year Limited Warranty
Add-On: N/A
Bolt Hole Center to Center Height: 44.5
Bolt Hole Center to Center Width: 86
Bolt Hole Thread Size: M10 x 1.5
Material: 304 Stainless Steel
Overall Height: 66.75
Overall Port Width: 57.2
Overall Width: 108.2
Port Height: 44.5
Port Width: 57.2
Sale Segment: Turbo Flanges and Fittings
Thickness: 0.5
Web Category: Turbine Inlet Flanges
