Vibrant 12810 - Air-to-Air IC Assy complete w/ end tanks core size: 22in Wx9in Hx3.25in thick 2.5in in/out

Vibrant 12810 - Air-to-Air IC Assy complete w/ end tanks core size: 22in Wx9in Hx3.25in thick 2.5in in/out

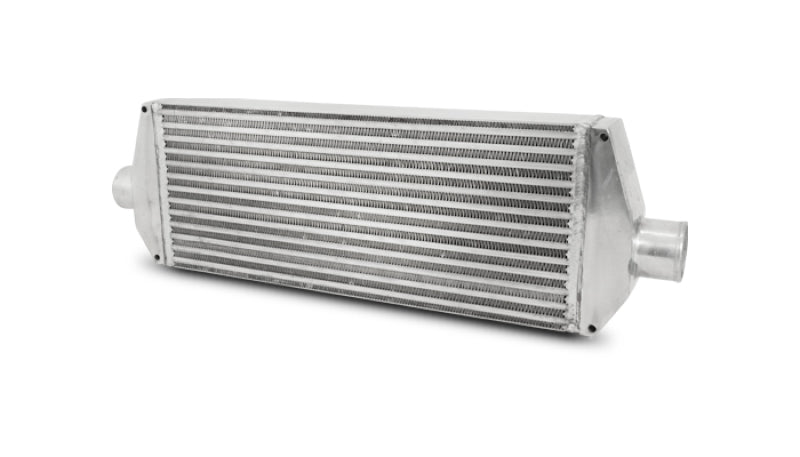

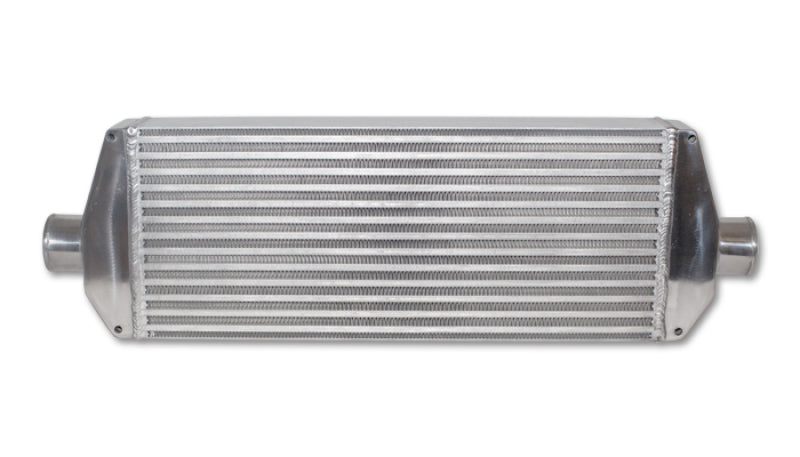

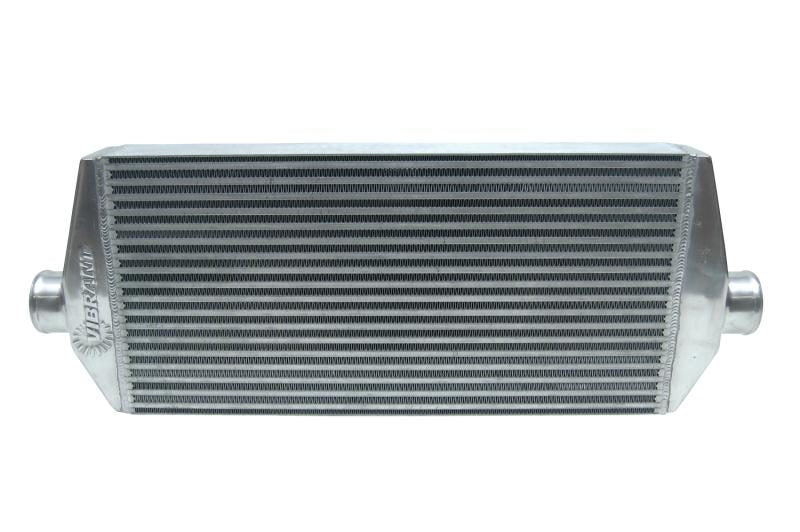

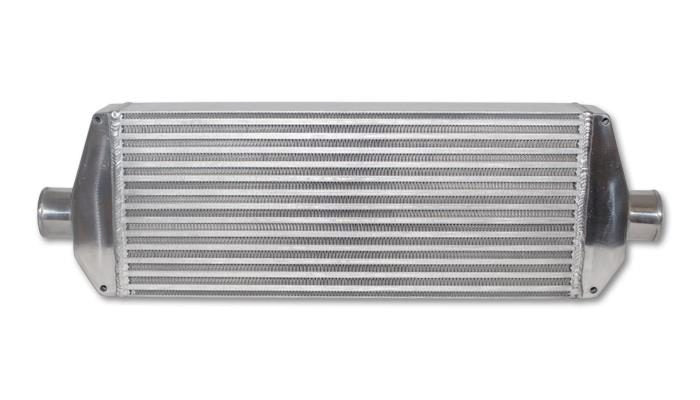

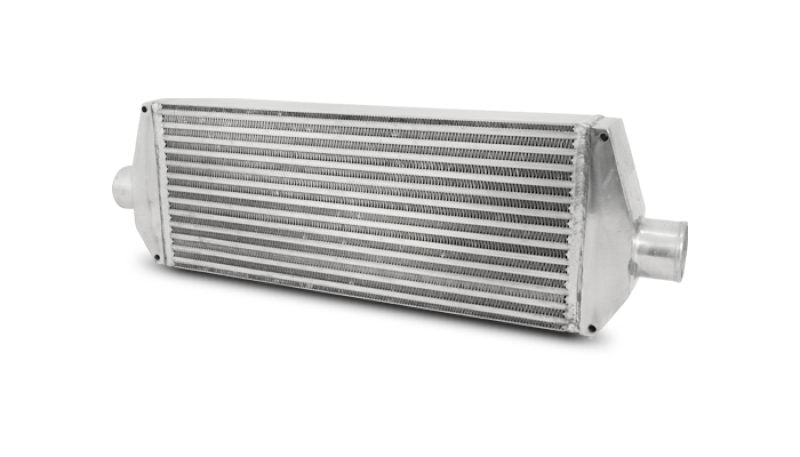

Intercooler - 30 x 3.25 x 9 in Tall - 2.5 in Inlet / Outlet - Brackets Included - Aluminum - Natural - Each

Intercooler; 30 in. Overall Length; 22 in. Core Width; 9 in. Height; 2.5 in. Inlet/Outlet OD; 1.75 in. Inlet/Outlet Neck Length; 3.25 in. Core Thickness; 6061 Aluminum;

Vibrant Intercooler Assemblies are all designed in house, and feature the same bar and plate construction as well as Louvered fin design on ambient air path with offset fin design on charge air path that is found in our lineup of Intercooler Cores. Each assembly also features cast aluminum tig welded end tanks, with a 2.5” or 3” inlet/outlet depending on intercooler size. These preassembled intercoolers each include mounting brackets and hardware for ease of installation and are pressure tested to ensure a leak free assembly.

• Aluminum
• Maximum Cooling Efficiency While Minimizing Pressure Drop
• Capable Of Handling The most Extreme Race Applications
• Deliver Significantly Cooler/Denser Air To Your Engine
• Pressure Tested To Ensure Leak Free Assembly
• 1 Year Limited Warranty
