Van Compass 4090 - Rocker Guards, Sprinter 2500/3500 4X4 (2015-2022 170" Wheelbase Only without Lift Kit)

Van Compass 4090 - Rocker Guards, Sprinter 2500/3500 4X4 (2015-2022 170" Wheelbase Only without Lift Kit)

Rocker Guards - Sprinter 4Wd,170" Wheelbase, Only Fits Non-Lifted

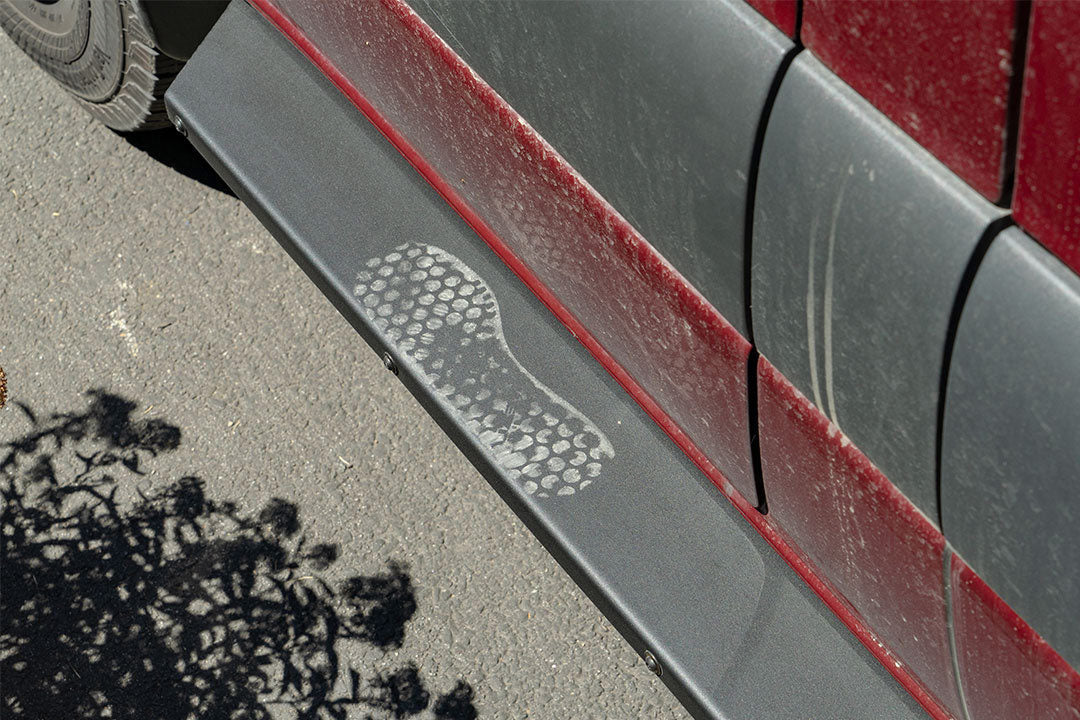

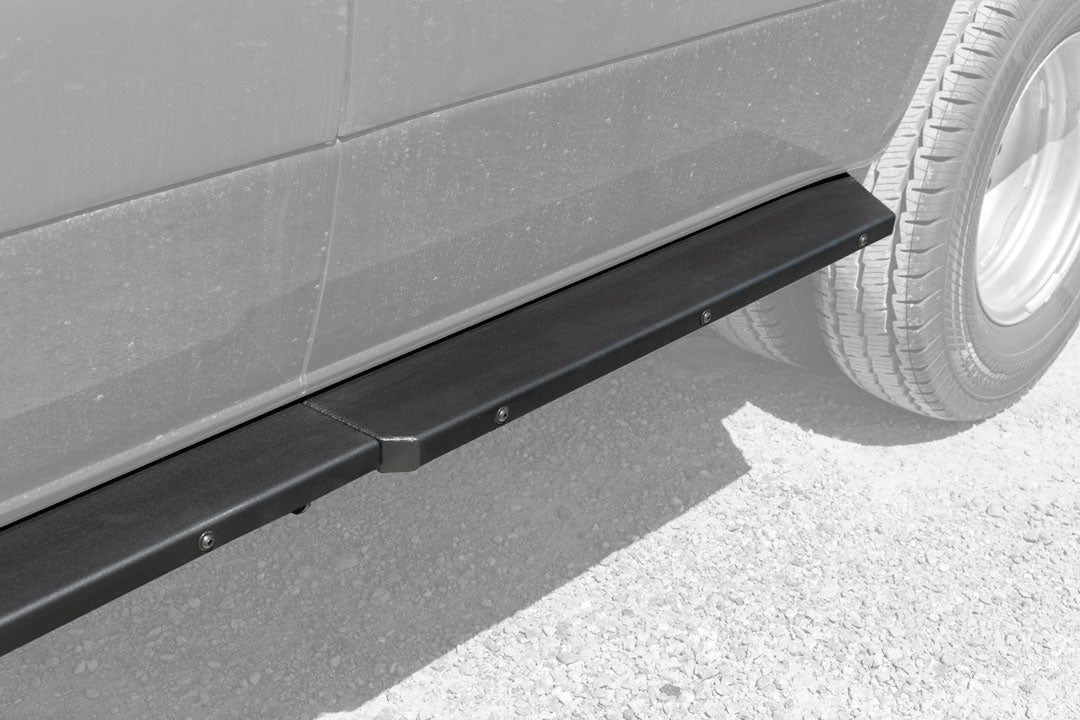

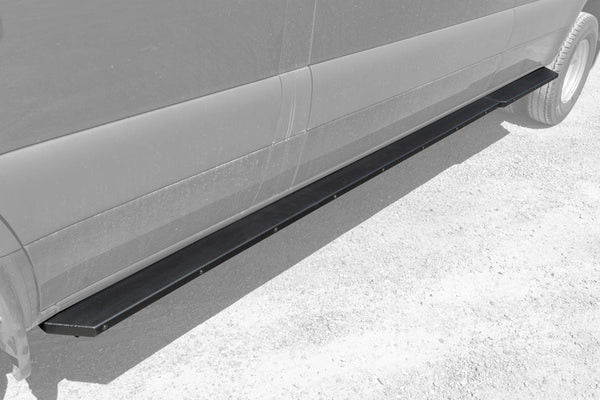

Our signature stealth design cues create an attractive 4" wide step to make getting in and out of your van more convenient. This robust design offers excellent body protection and adds easy to access vehicle lifting points.

The main step surfaces are constructed from 1/8" steel and attach to the pinch seam with stainless steel hardware. Frame mounts are constructed from 3/16" steel and are attached in three locations directly to the vehicle's chassis. This additional reinforcement not only ensures a safe and solid mounting location, but increases torsional rigidity in the chassis of the vehicle. Drilling of holes at the pinch seam and under body gussets are required for installation.

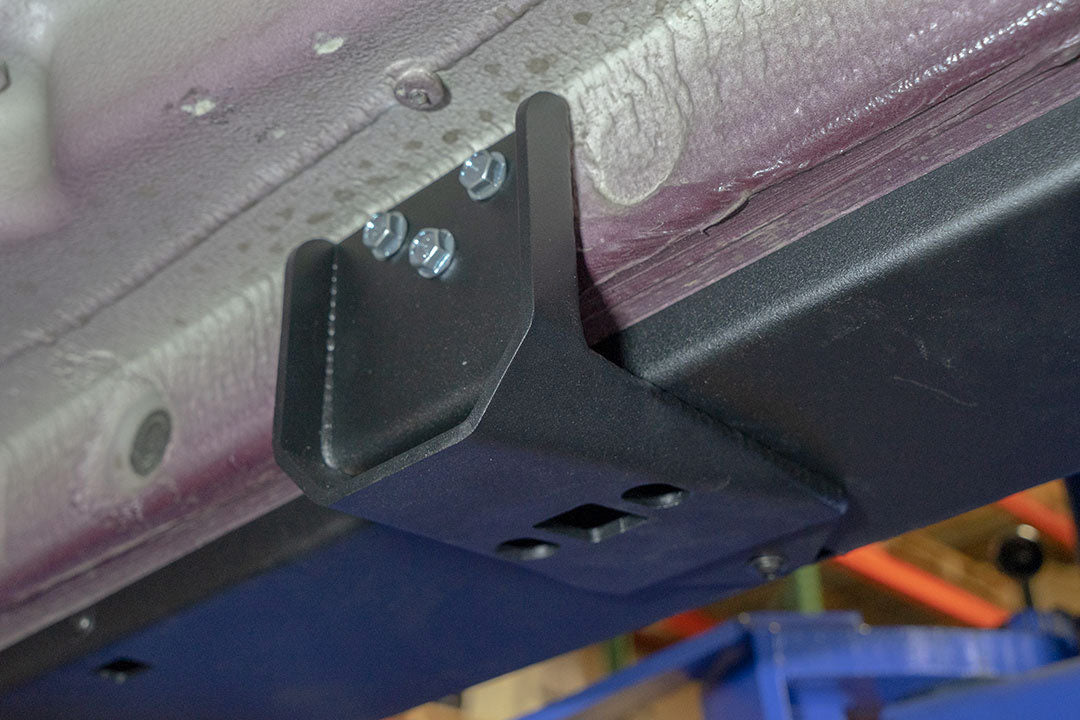

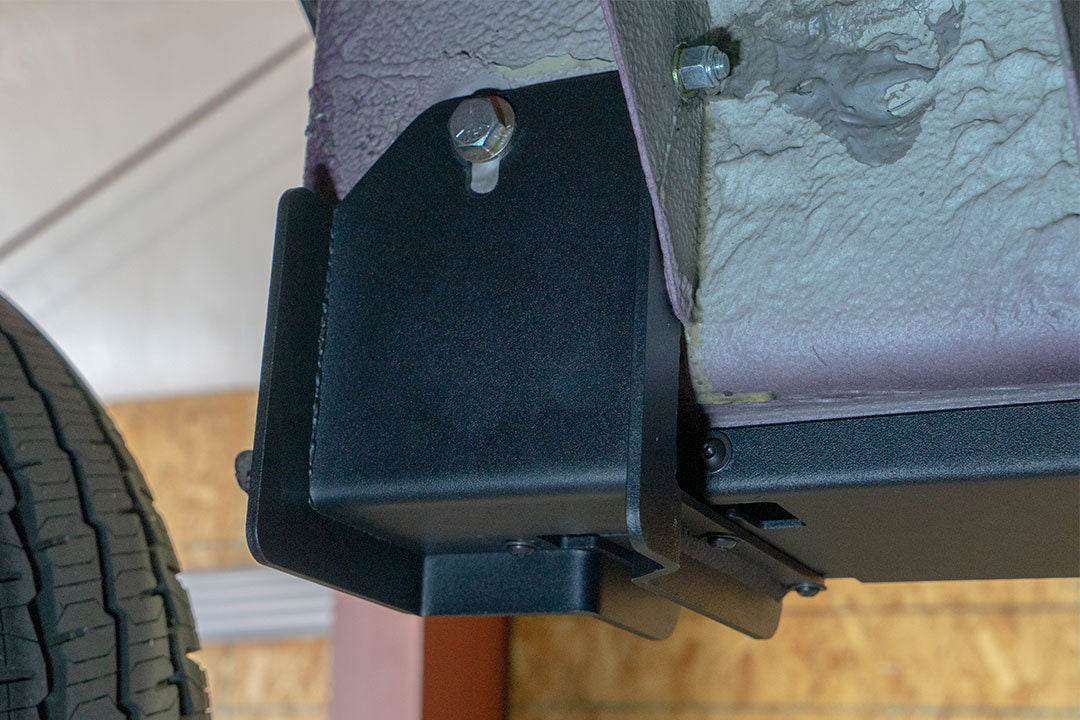

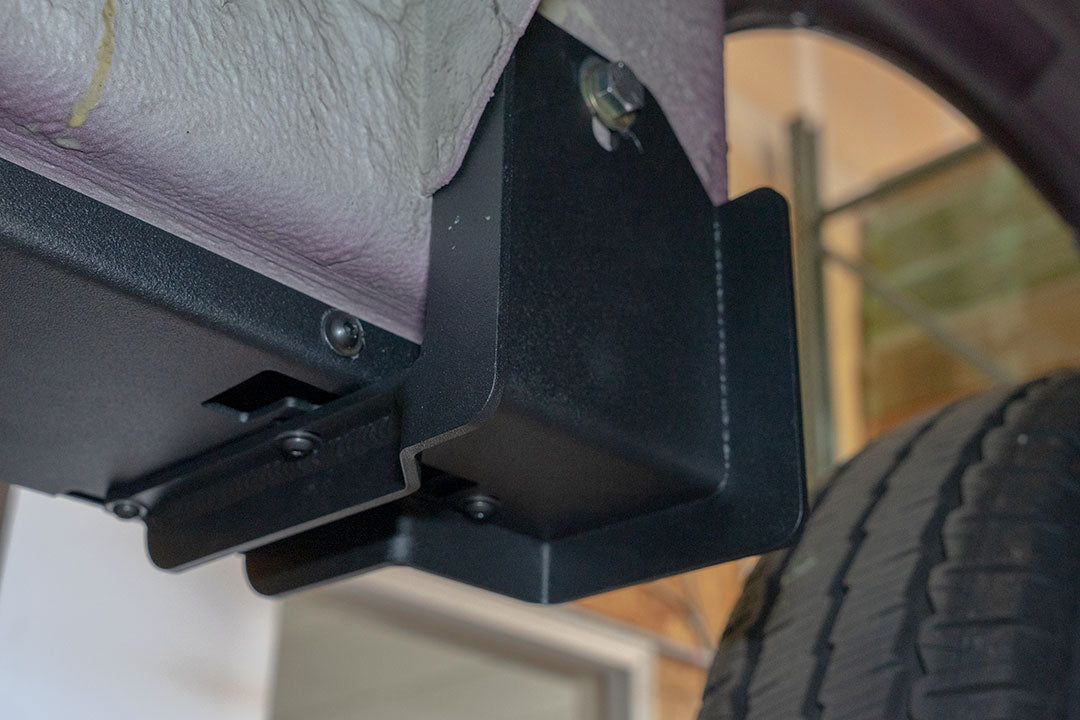

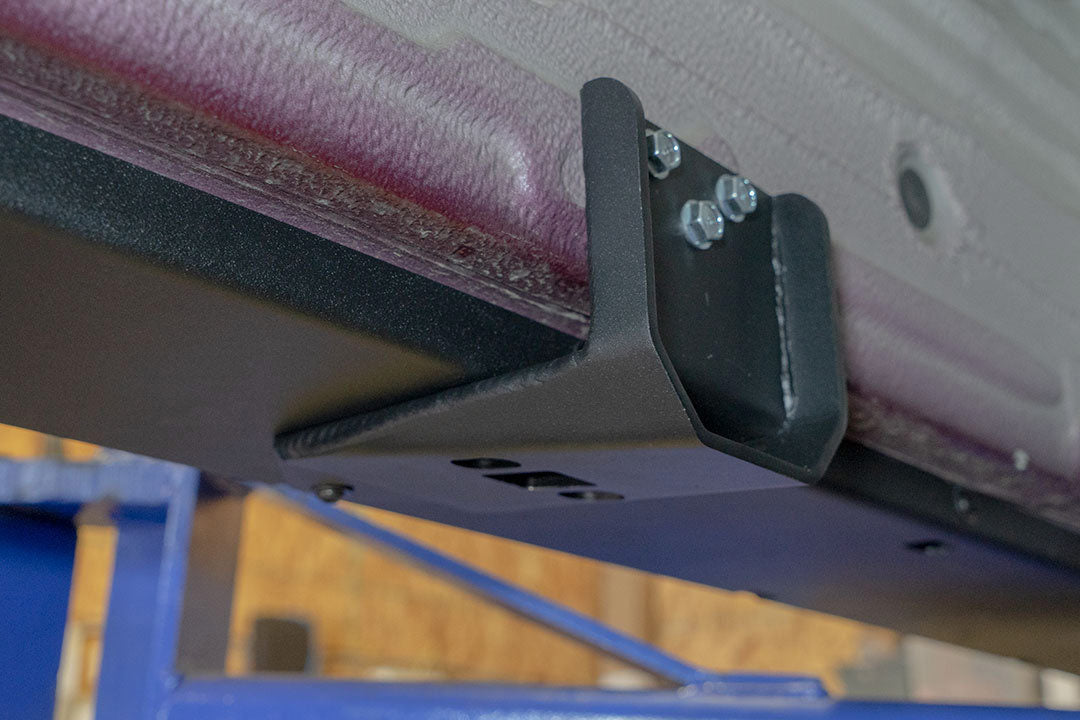

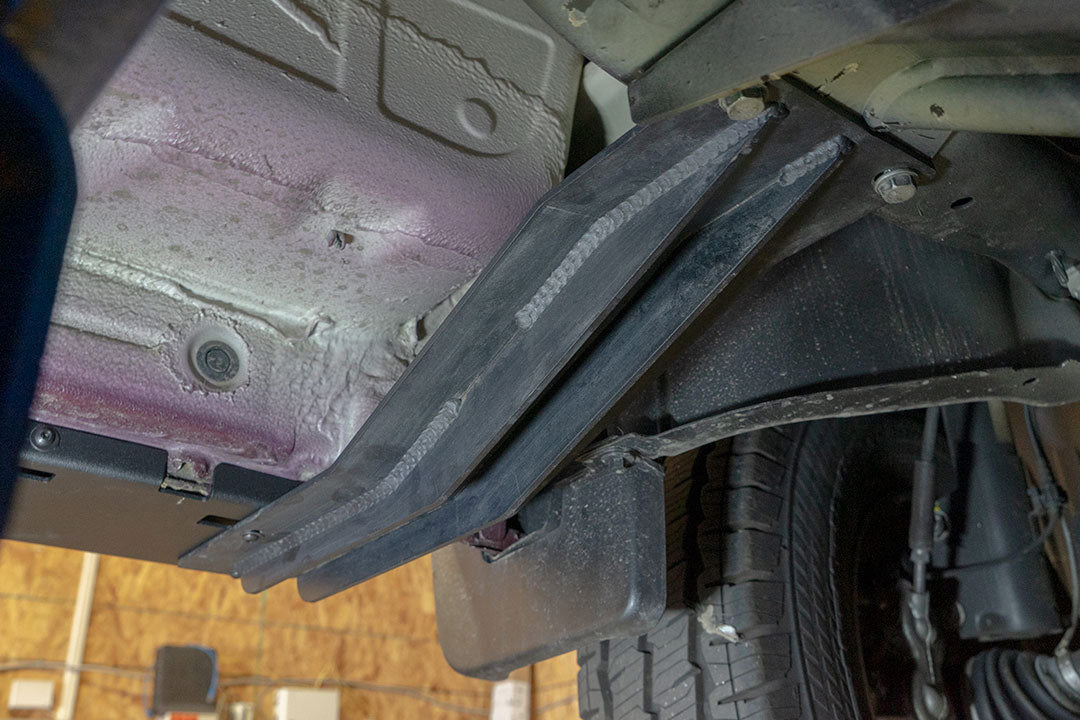

• Frame mounts are constructed from 3/16" steel and are attached in three locations directly to the vehicle's chassis
• Drilling of holes at the pinch seam and under body gussets are required for installation

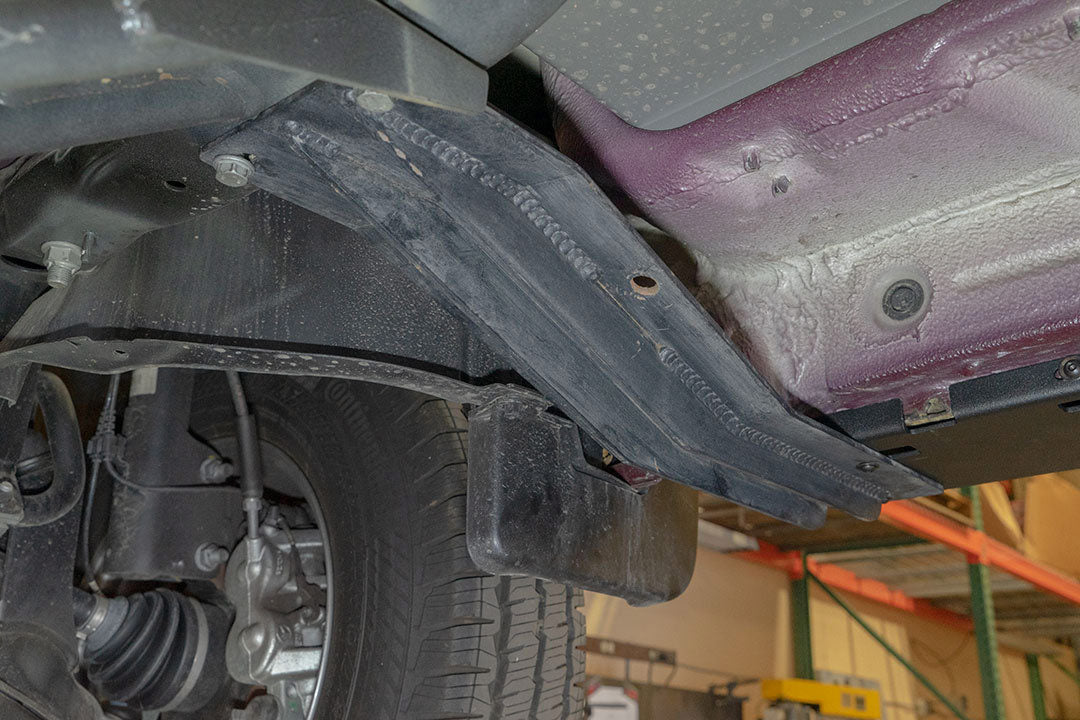

• Please specify your van's lift height when ordering, the front subframe tie ins are specific to lifted and non-lifted vans
• The main step surfaces are constructed from 1/8" steel and attach to the pinch seam with stainless steel hardware
• Integrated Hi-Lift jack slots make off-road recovery or flat tire changes go quickly and safely

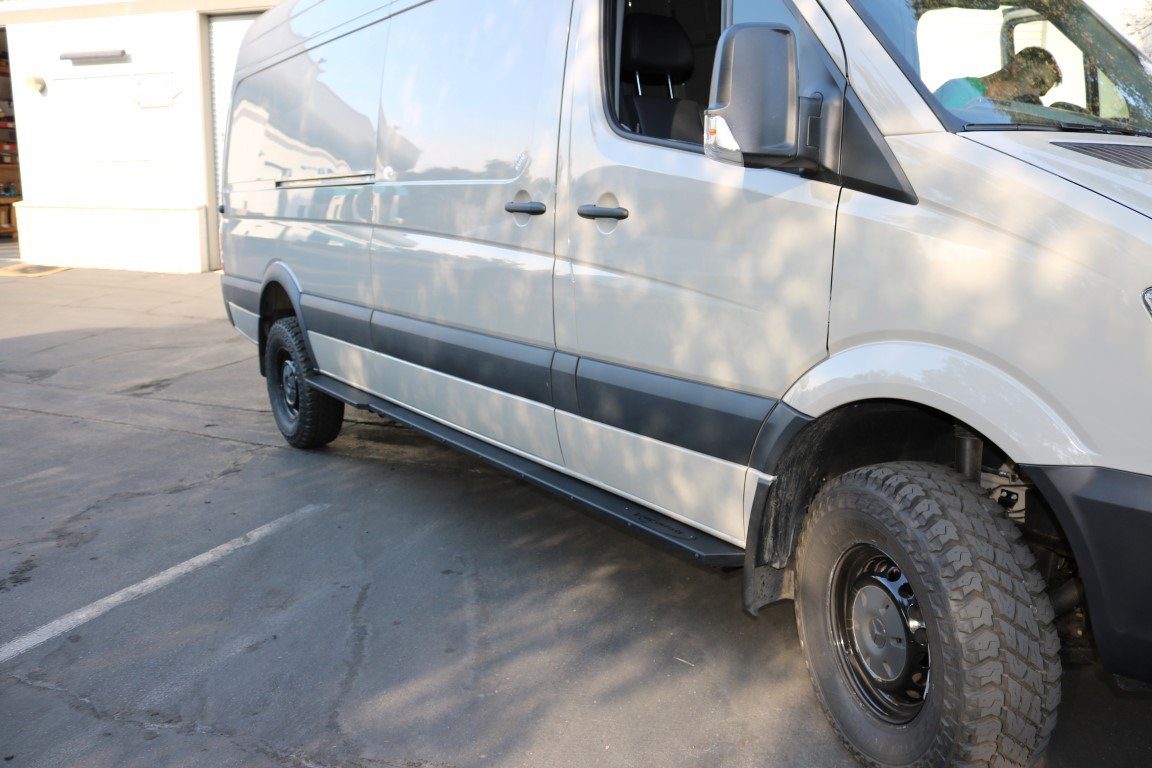

• More than just a step! Add functional protection, chassis rigidity and ease of access to your 170" wheelbase 4x4 Sprinter in sleek style with a set of Van Compass Rocker Guards
• This additional reinforcement not only ensures a safe and solid mounting location, but increases torsional rigidity in the chassis of the vehicle
• Our signature stealth design cues create an attractive 4" wide step to make getting in and out of your van more convenient, and the rear portion features an additional 1" of width for additional protection on tight trails
• ** NOT COMPATIBLE with Winnebago Boldt, water tanks are in the way ** *** These ship in a very long crate, non-commercial address may be subject to additional delivery fees
• Step Surface Width: 3
• 5-4" (van body has slight taper at front door sill); 4
• This robust design offers excellent body protection and adds easy to access vehicle lifting points
• 375" at rear kick out with doors closed
• Vans with a 2" Van Compass lift require a unique mount, all other known variations use the 'non-lifted' version
