Van Compass 1046 - Front 2" Lift Spindle, Ford Transit (2015-Up RWD Single Wheel Only)

Van Compass 1046 - Front 2" Lift Spindle, Ford Transit (2015-Up RWD Single Wheel Only)

Lift Spindle, 2" Lift, Transit Rwd

Lift spindles are a long-time staple of desert racing, adding front clearance where it matters: underneath the front control arms, cross members and frame. This allows easier fitment of larger tires, further increasing ground clearance.

Designed to work both as a standalone product to lift the front for a leveled stance on a light van, or combined with our Topo 2" front lift kit, for 4" of total lift in the front. A 4" lifted front will clear a 285/70R17, a versatile size tire great for off-highway use and on.

• Track width is increased modestly (1/2" per side, 1" total) for increased stability and a better scrub radius with larger tires
• Precision cut and machined parts key together to ensure solid construction
• Trimming of the pinch seam is required

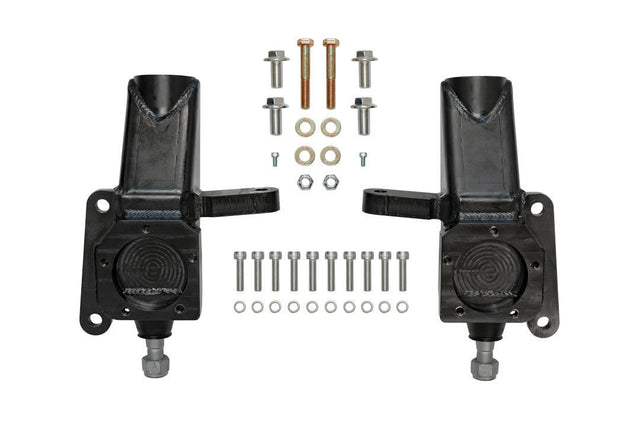

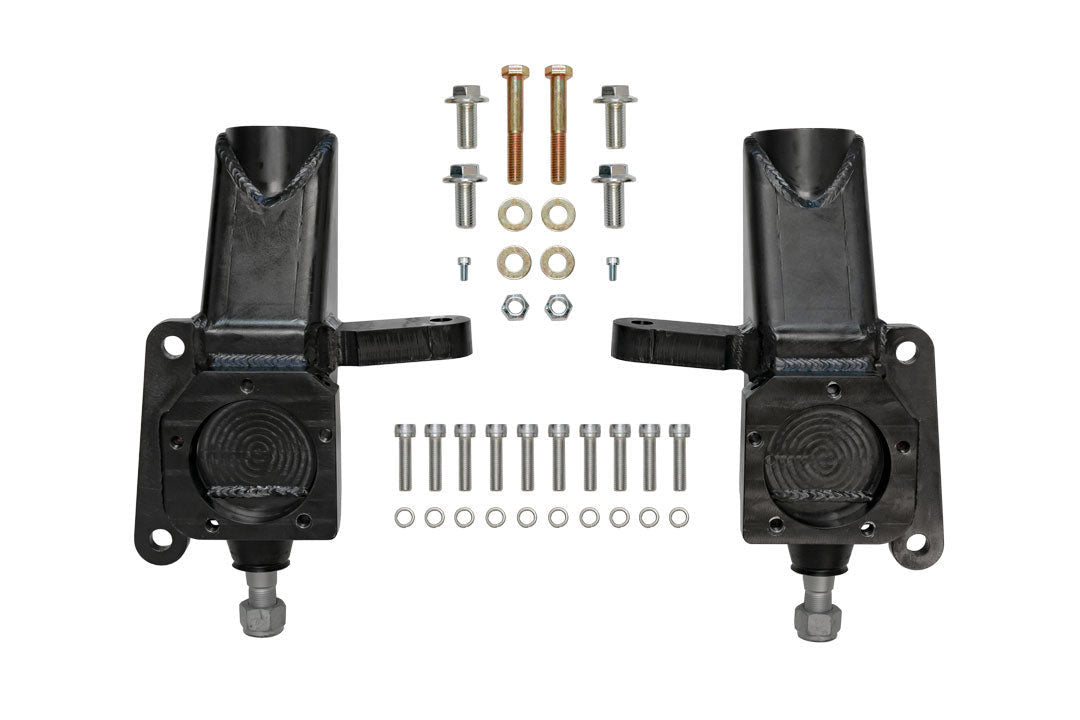

• A complete hardware kit is included, and the spindles are plated with zinc oxide for corrosion resistance
• The added clearance allows easier fitment of larger tires, further increasing ground clearance and upping the capability of your 2wd van
• Motorcraft ball joints come pre-installed to simplify the installation process and ensure years of trouble free service
• Our spindle was carefully designed to preserve the complex geometry of the front end without altering tie rod angle or placement, maintaining camber, caster and Ackerman angles within their correct specifications
• When properly engineered, there are no down sides
• \We recommend a 17" x 8" wheel with 45mm offset
• A 4" lifted front will clear a 285/70R17*, a versatile size tire great for off-highway use and on
• Designed to work both as a standalone product to lift the front for a leveled stance on a light van, or combined with our Topo 2" front lift kit, for 4" of total lift in the front
