USA Standard Gear ZTBK205GDM4 - Transfer Case Np205 Bearing Kit 1970-1986 GM With Th400 Lsm465 USA Standard
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
Description
Description
USA Standard Gear ZTBK205GDM4 - Transfer Case Np205 Bearing Kit 1970-1986 GM With Th400 Lsm465 USA Standard

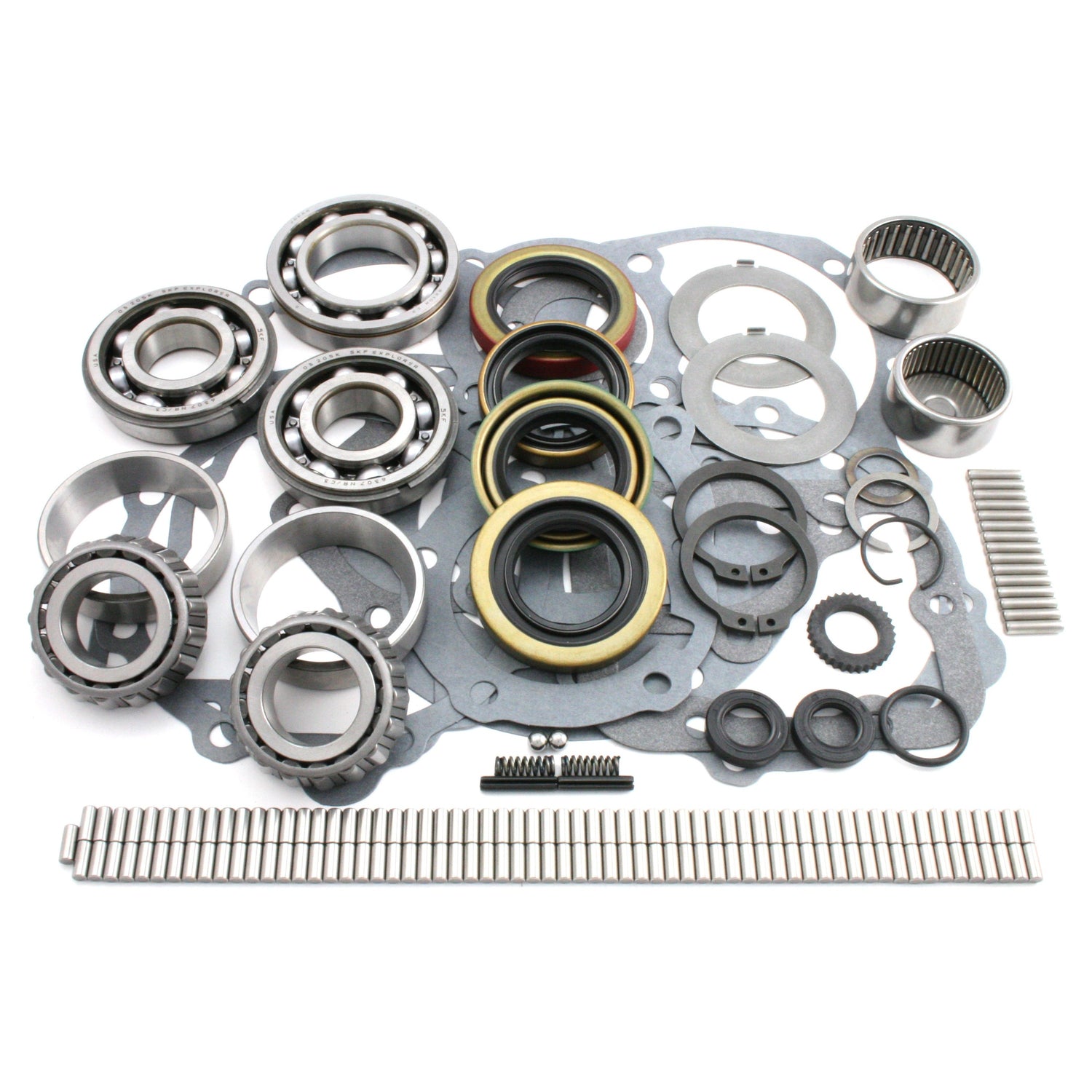

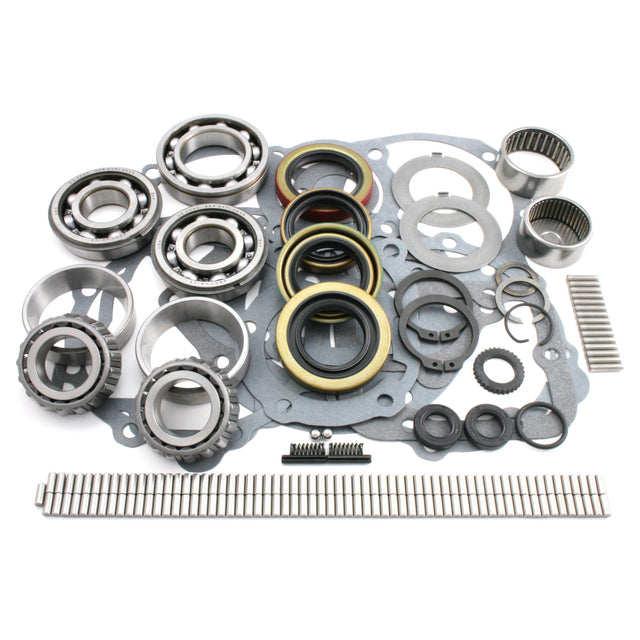

USA Standard Bearing and Seal Overhaul Kit has all you need to rebuild that transfer case. Comes with bearings, seals, gaskets to make the job easy and painless. When you think Quality, think USA Standard.
- Transfer Case Bearing and Seal Kit
- Bearings, Seals, and Small Parts Included
- Made In The USA
- USA Standard
- Sold As A Kit
Fits Vehicles/Transfer Case:
- 80 Chevrolet K20 NP205
- 80 Chevrolet K20 Suburban NP205
- 80-86 Chevrolet K30 NP205
- 81 Chevrolet K30 NP205
- 87-1988 Chevrolet V30 NP205
- 89-91 Chevrolet V3500 NP205
- 80 GMC K2500 NP205
- 80 GMC K2500 Suburban NP205
- 80-86 GMC K3500 NP205
- 87-91 GMC V3500 NP205
Features and Benefits:
- New Process 205 Transfer Case
- Cast Iron Case
- Input Bearing: 90 mm OD (3.54 Inch)
- Front Output Rear Bearing: 1.75 Inch ID
- Non-Synchronized Front Output Shaft (used with manual-locking hubs)
- Bearing Gasket and Seal Kit
Details:
- AAP_UDA_4: 55
Fitment Notes:
- NP205; For Units With a 32 Spline Input, direct mount, cast iron case, gear driven, part time, Not Synchronized, 90 mm O.D. input bearing, With BCE2816 Front Output Rear Bearing 2.125 O.D. 1.75 I.D. 1.0 Wide
- NP205; For Units With a 32 Spline Input, direct mount, cast iron case, gear driven, part time, 90 mm O.D. input bearing
Application Summary:
1980 Chevrolet K20 (Transmission Code: THM400 & Transmission Control Type: Automatic)
- 1980 Chevrolet K20 Suburban (Transmission Code: THM400 & Transmission Control Type: Automatic)
- 1980-1986 Chevrolet K30 (Transmission Code: THM400, SM465/M20 & Transmission Control Type: Automatic, Manual)
- 1987-1988 Chevrolet V30 (Transmission Code: THM400, SM465/M20, CH465/MC9 & Transmission Control Type: Automatic, Manual)
- 1989-1991 Chevrolet V3500 (Transmission Code: SM465/M20, THM400, 4L80-E & Transmission Control Type: Manual, Automatic)
- 1980 GMC K2500 (Transmission Code: THM400 & Transmission Control Type: Automatic)
- 1980 GMC K2500 Suburban (Transmission Code: THM400 & Transmission Control Type: Automatic)
- 1980-1986 GMC K3500 (Transmission Code: THM400, SM465/M20 & Transmission Control Type: Automatic, Manual)
- 1987-1991 GMC V3500 (Transmission Code: SM465/M20, THM400, CH465/MC9, 4L80-E & Transmission Control Type: Manual, Automatic)
