USA Standard Gear ZA W39252 - Gear Chromoly Inner Front Axle, Right Hand GM 8.5ќ, 28 Spline, 19.15ќ Long USA Standard
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
Description
Description

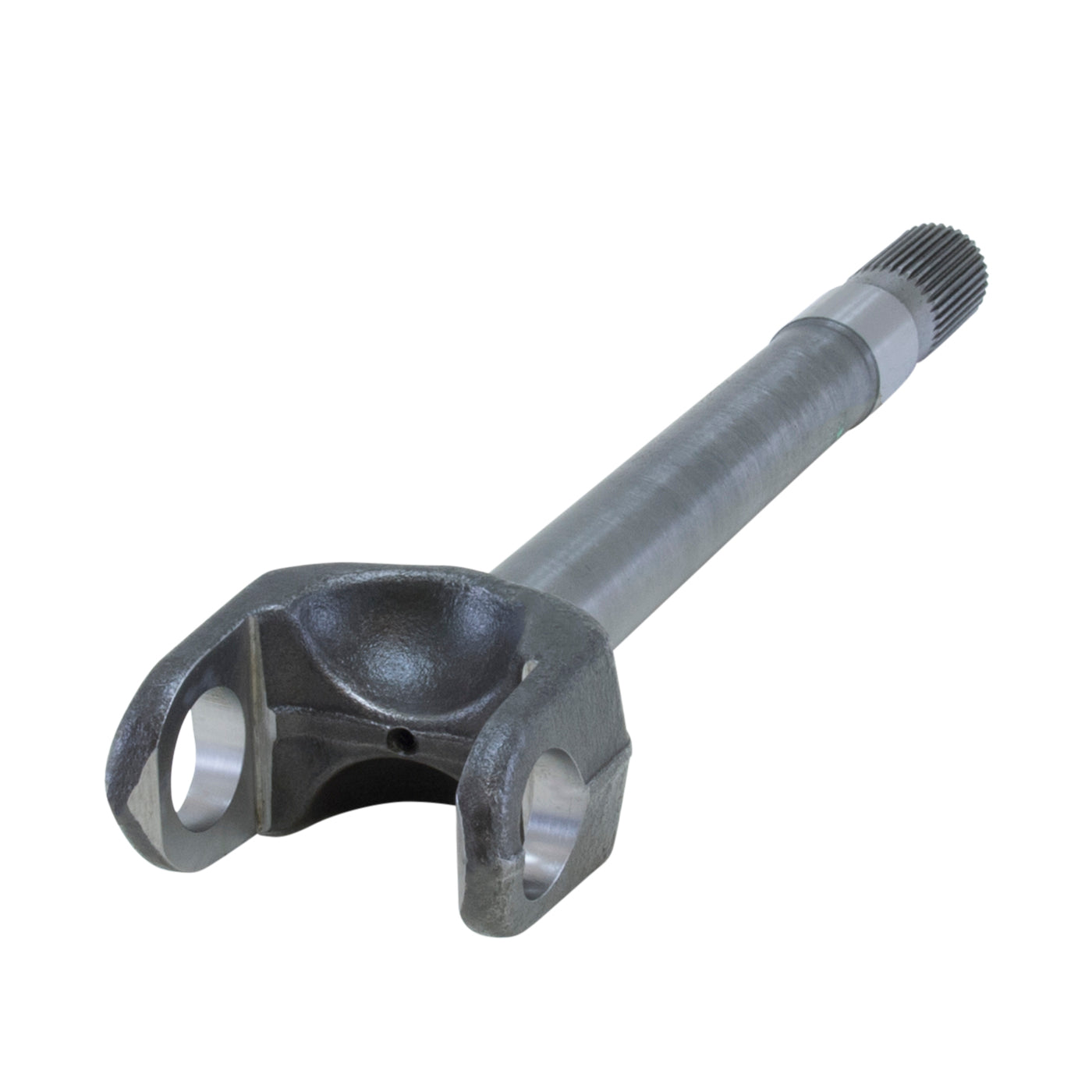

USA Standard Gear ZA W39252 - Gear Chromoly Inner Front Axle, Right Hand GM 8.5ќ, 28 Spline, 19.15ќ Long USA Standard
Precision, quality USA Standard Gear axles. USA Standard Gear uses precision manufacturing technologies to provide top quality, competition tough axles.
- 28 spline
- 19.15 inch long
- Fits GM 8.5 inch in 1979-1987 GM
- Left hand inner
- 5-760X U-joint Size
- 4340 Chromoly
5 year warranty against Manufacturer defects
Technical Notes:
This axle is larger in diameter than stock 28 Spline. You will need to purchase carrier case part number YC G26010481 inch order to use these axles.
Features and Benefits:
- Fits GM 8.5 front differential
- 28 spline
- Measures 19.15 long from end of splines to center of u-joint bore
- Inner RH axle
- Heavy duty 4340 chromoly construction
- Accepts 5-760X Series u-joint
Details:
- AAP_UDA_4: 50
- Axle Nut Included: No
- Inboard Spline Quantity: 28
- Retainer Included: no
- Shaft Length: 19.15 inch
- Wheel Bolt Pattern Size: N/A
Fitment Notes:
- 8.5 inch.
- 10 Bolt Cover
- 4340 Chrome-Moly Axle
- 19.15 inch. Long
- 28 Spline
- Uses 5-760X U-Joint
Application Summary:
1987 Chevrolet Blazer (Front Right Inner) (Drive: 4WD)
- 1979-1986 Chevrolet K5 Blazer (Front Right Inner) (Drive: 4WD)
- 1979-1986 Chevrolet K10 (Front Right Inner)
- 1979-1986 Chevrolet K10 Suburban (Front Right Inner)
- 1979-1986 Chevrolet K20 (Front Right Inner)
- 1979-1986 Chevrolet K20 Suburban (Front Right Inner)
- 1987 Chevrolet V10 (Front Right Inner)
- 1987-1988 Chevrolet V10 Suburban (Front Right Inner)
- 1987 Chevrolet V20 (Front Right Inner)
- 1987-1988 Chevrolet V20 Suburban (Front Right Inner)
- 1986 GMC K1500 (Front Right Inner)
- 1986 GMC K2500 (Front Right Inner)
- 1986 GMC K2500 Suburban (Front Right Inner)
- 1987 GMC V1500 Suburban (Front Right Inner)
- 1987 GMC V2500 Suburban (Front Right Inner)
- 1987 GMC V1500 (Front Right Inner)
- 1987 GMC V2500 (Front Right Inner)
