USA Standard Gear ZA K630303 - Rear Axle Kit Fits Dana M35 Diff 27 Spline Left Hand 30-11/16 Inch Long USA Standard

USA Standard Gear  |  SKU: FDHD-ZA K630303
$20789 $22868

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

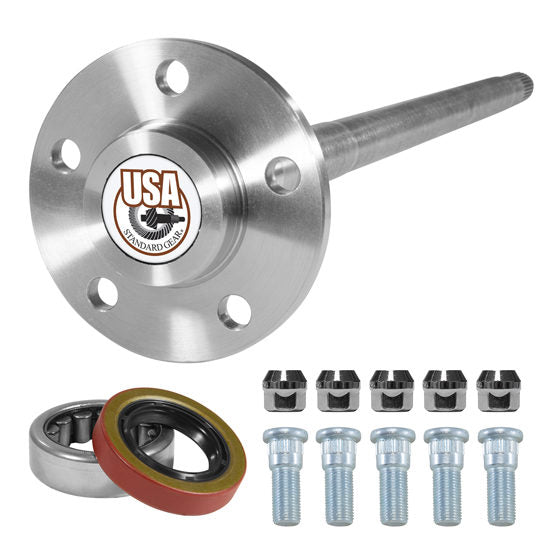

USA Standard Gear ZA K630303 - Rear Axle Kit Fits Dana M35 Diff 27 Spline Left Hand 30-11/16 Inch Long USA Standard

USA Standard Gear uses advanced alloys and the latest heat-treating technologies to produce a strong, durable axle. This kit contains all the components to replace, repair, or upgrade axle shafts so your vehicle will be up and running fast.

  • Fits Dana 35 Differential
  • 27 Spline
  • Length 30.6875 inch.
  • Rear, 5 x 4.5 inch. Bolt Pattern, LH

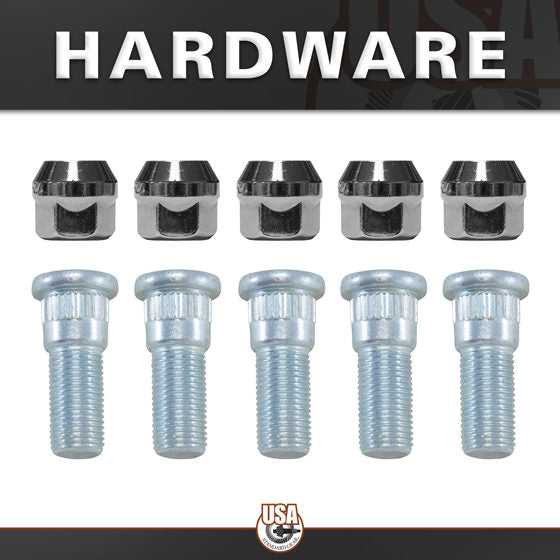

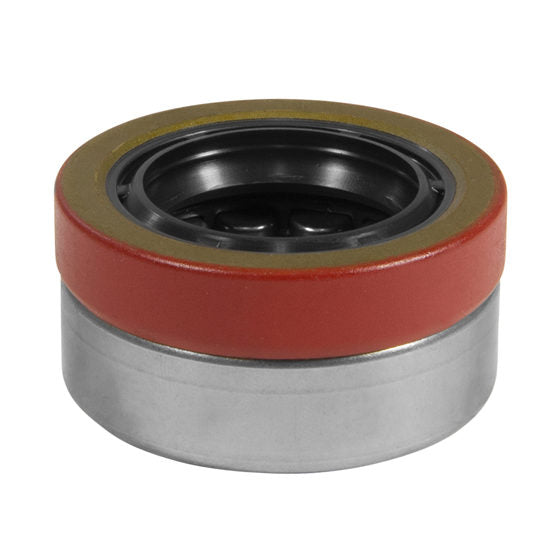

  • Includes Wheel Bearing, Seal, Diff Cover Gasket, Studs, and Lug Nuts
  • Advanced Heat-Treating Results in a Stronger, More Durable Axle

Features and Benefits:

  • Fits Dana 35 Differential
  • 27 Spline
  • Length 30.6875 inch.
  • Rear, 5 x 4.5 inch. Bolt Pattern, LH
  • Includes Wheel Bearing, Seal, Diff Cover Gasket, Studs, and Lug Nuts
  • Advanced Heat-Treating Results in a Stronger, More Durable Axle

Details:

  • AAP UDA 12:Ea
  • AAP UDA 22:1
  • AAP UDA 4:85
  • Inboard Spline Quantity:27
  • Retainer Included:no
  • Wheel Bolt Pattern Size:5 x 4.5 inch

Application Summary:

1990-2001 Jeep Cherokee (Rear Left) (Note: Model 35

  • Axle Shaft Kit
  • Left Hand
  • 27 Spline
  • 30-11/16 inch. Long
  • C-Clip Axle
  • 5 inch. x 4.5 inch. Bolt Pattern
  • ABS Ring Not Included
  • 2.25 inch. O.d. Bearing
  • Includes Wheel Bearing, Seal, Studs and Lug Nuts)
  • 1990-1991 Jeep Comanche (Rear Left) (Note: Model 35
  • Axle Shaft Kit
  • Left Hand
  • 27 Spline
  • 30-11/16 inch. Long
  • C-Clip Axle
  • 5 inch. x 4.5 inch. Bolt Pattern
  • ABS Ring Not Included
  • 2.25 inch. O.d. Bearing
  • Includes Wheel Bearing, Seal, Studs and Lug Nuts)
  • 1993-1998 Jeep Grand Cherokee (Rear Left) (Note: Model 35
  • Axle Shaft Kit
  • Left Hand
  • 27 Spline
  • 30-11/16 inch. Long
  • C-Clip Axle
  • 5 inch. x 4.5 inch. Bolt Pattern
  • ABS Ring Not Included
  • 2.25 inch. O.d. Bearing
  • Includes Wheel Bearing, Seal, Studs and Lug Nuts)
  • 1993 Jeep Grand Wagoneer (Rear Left) (Note: Model 35
  • Axle Shaft Kit
  • Left Hand
  • 27 Spline
  • 30-11/16 inch. Long
  • C-Clip Axle
  • 5 inch. x 4.5 inch. Bolt Pattern
  • ABS Ring Not Included
  • 2.25 inch. O.d. Bearing
  • Includes Wheel Bearing, Seal, Studs and Lug Nuts)
  • 1990-2006 Jeep Wrangler (Rear Left) (Note: Model 35
  • Axle Shaft Kit
  • Left Hand
  • 27 Spline
  • 30-11/16 inch. Long
  • C-Clip Axle
  • 5 inch. x 4.5 inch. Bolt Pattern
  • ABS Ring Not Included
  • 2.25 inch. O.d. Bearing
  • Includes Wheel Bearing, Seal, Studs and Lug Nuts)
