USA Standard Gear ZA K630151 - Rear Axle Kit Fits GM 9.5 Inch Diff 33 Spline Left Hand 34.8 Inch Long USA Standard

USA Standard Gear ZA K630151 - Rear Axle Kit Fits GM 9.5 Inch Diff 33 Spline Left Hand 34.8 Inch Long USA Standard

USA Standard Gear uses advanced alloys and the latest heat-treating technologies to produce a strong, durable axle. This kit contains all the components to replace, repair, or upgrade axle shafts so your vehicle will be up and running fast.

• Fits GM 9.5 inch. Differential
• Length 34.8 inch.
• 33 Spline
• Rear, 8 Lug
• 2.985 inch. Od Wheel Bearing

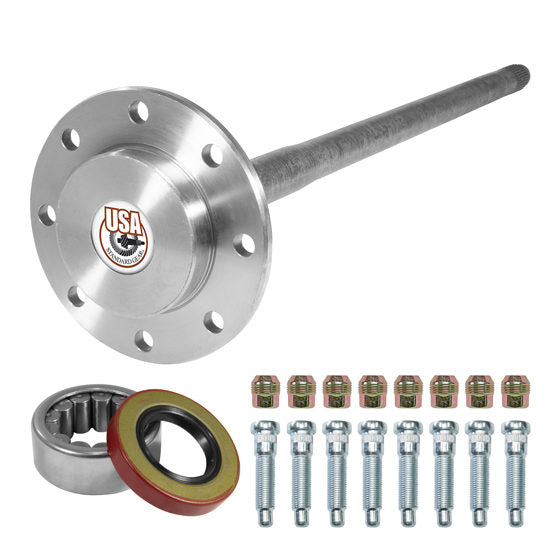

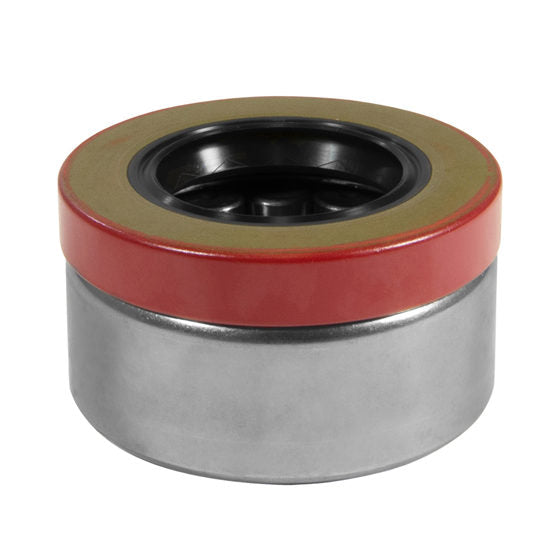

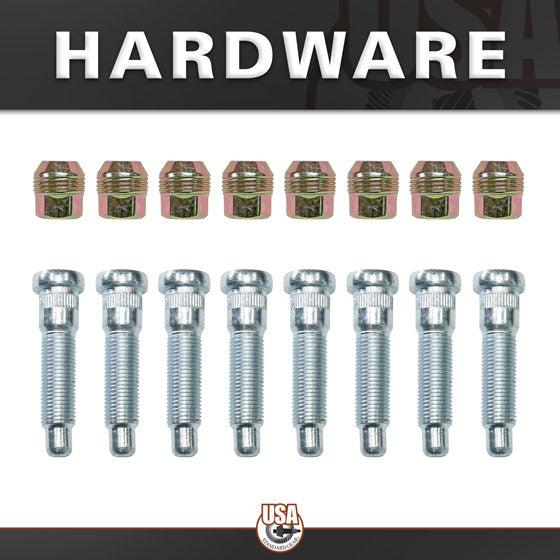

• Includes Wheel Bearing, Seal, Diff Cover Gasket, Studs, and Lug Nuts
• Advanced Heat-Treating Results in a Stronger, More Durable Axle

Features and Benefits:

• Fits GM 9.5 inch. Differential
• Length 34.8 inch.
• 33 Spline
• Rear, 8 Lug
• 2.985 inch. Od Wheel Bearing
• Includes Wheel Bearing, Seal, Diff Cover Gasket, Studs, and Lug Nuts
• Advanced Heat-Treating Results in a Stronger, More Durable Axle

Details:

• AAP UDA 12:Ea
• AAP UDA 22:1
• AAP UDA 4:85
• Axle Type:Semi Float
• Bearing(s) Included:No
• Inboard Spline Quantity:33
• Lug Quantity:8
• Retainer Included:no
• Shaft Length:34.84 inch
• Wheel Bolt Pattern Size:8 x 6.5 inch
• Wheel Studs Included:Yes

Application Summary:

2003-2009 Chevrolet Express 2500 (Rear Left) (Fuel: Gas / Qualifier: with Dana 60, 9.75 inch. Differential, with Single Rear Wheels (Srw))

• 2005-2009 Chevrolet Express 3500 (Rear Left) (Qualifier: with Dana 60, 9.75 inch. Differential, with Single Rear Wheels (Srw))
• 2003-2009 GMC Savana 2500 (Rear Left) (Fuel: Gas / Qualifier: with Dana 60, 9.75 inch. Differential, with Single Rear Wheels (Srw))
• 2005-2009 GMC Savana 3500 (Rear Left) (Qualifier: with Dana 60, 9.75 inch. Differential, with Single Rear Wheels (Srw))
