USA Standard Gear ZA K630137 - Rear Axle Kit Fits GM 9.5 Inch Diff 33 Spline Right Hand 32-3/4 Inch Long USA Standard
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
Description
Description
USA Standard Gear ZA K630137 - Rear Axle Kit Fits GM 9.5 Inch Diff 33 Spline Right Hand 32-3/4 Inch Long USA Standard
USA Standard Gear uses advanced alloys and the latest heat-treating technologies to produce a strong, durable axle. This kit contains all the components to replace, repair, or upgrade axle shafts so your vehicle will be up and running fast.
- Fits GM 9.5 inch. Differential
- Length 32.75 inch.
- 33 Spline
- Rear, Semi-Float Axle, 8 Lug
- 2.985 inch. Od Wheel Bearing

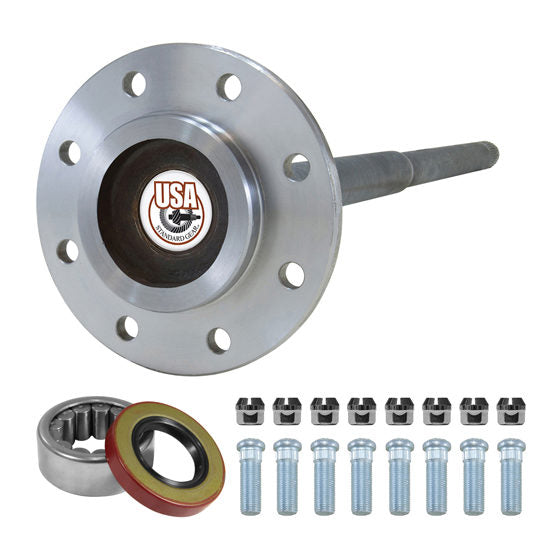

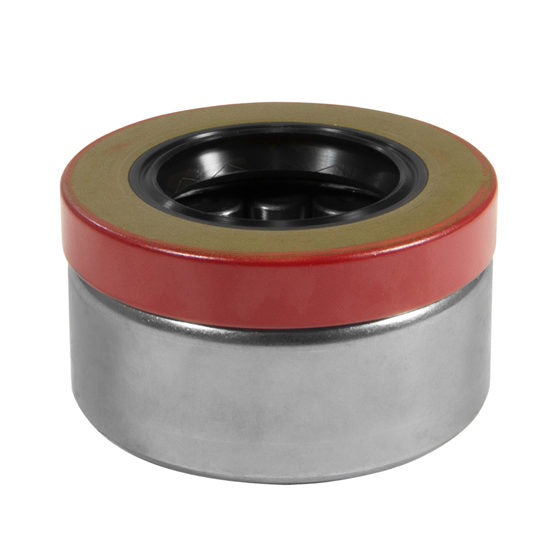

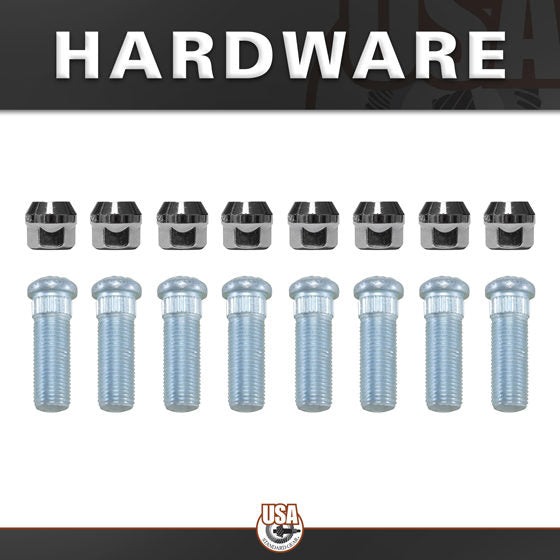

- Includes Wheel Bearing, Seal, Diff Cover Gasket, Studs, and Lug Nuts
- Advanced Heat-Treating Results in a Stronger, More Durable Axle
Features and Benefits:
- Fits GM 9.5 inch. Differential
- Length 32.75 inch.
- 33 Spline
- Rear, Semi-Float Axle, 8 Lug
- 2.985 inch. Od Wheel Bearing
- Includes Wheel Bearing, Seal, Diff Cover Gasket, Studs, and Lug Nuts
- Advanced Heat-Treating Results in a Stronger, More Durable Axle
Details:
- AAP UDA 12:Ea
- AAP UDA 22:1
- Axle Shaft Seal Included:Yes
- Inboard Spline Quantity:33
- Retainer Included:no
- Shaft Material:Steel
- Wheel Bolt Pattern Size:8 x 6.5 inch
Application Summary:
1981-1986 Chevrolet C20 (Rear) (Drive: Rwd / Qualifier: with 14 Bolt Cover)
- 1981-1986 Chevrolet C20 Suburban (Rear) (Drive: Rwd / Qualifier: with 14 Bolt Cover)
- 1983-1996 Chevrolet G30 (Rear Right) (Drive: Rwd / Qualifier: with 14 Bolt Cover)
- 1981-1986 Chevrolet K20 (Rear) (Drive: 4WD / Qualifier: with 14 Bolt Cover)
- 1981-1986 Chevrolet K20 Suburban (Rear) (Drive: 4WD / Qualifier: with 14 Bolt Cover)
- 1987-1988 Chevrolet R20 (Rear) (Drive: Rwd / Qualifier: with 14 Bolt Cover)
- 1987-1988 Chevrolet R20 Suburban (Rear) (Drive: Rwd / Qualifier: with 14 Bolt Cover)
- 1989 Chevrolet R2500 (Rear) (Drive: Rwd / Qualifier: with 14 Bolt Cover)
- 1990-1991 Chevrolet R2500 Suburban (Rear) (Drive: Rwd / Qualifier: with 14 Bolt Cover)
- 1987 Chevrolet V20 (Rear) (Drive: 4WD / Qualifier: with 14 Bolt Cover)
- 1987-1988 Chevrolet V20 Suburban (Rear) (Drive: 4WD / Qualifier: with 14 Bolt Cover)
- 1989-1991 Chevrolet V2500 Suburban (Rear) (Drive: 4WD / Qualifier: with 14 Bolt Cover)
- 1981-1986 GMC C2500 (Rear) (Drive: Rwd / Qualifier: with 14 Bolt Cover)
- 1981-1986 GMC C2500 Suburban (Rear) (Drive: Rwd / Qualifier: with 14 Bolt Cover)
- 1981-1986 GMC K2500 (Rear) (Drive: 4WD / Qualifier: with 14 Bolt Cover)
- 1981-1986 GMC K2500 Suburban (Rear) (Drive: 4WD / Qualifier: with 14 Bolt Cover)
- 1987-1989 GMC R2500 (Rear) (Drive: Rwd / Qualifier: with 14 Bolt Cover)
- 1987-1991 GMC R2500 Suburban (Rear) (Drive: Rwd / Qualifier: with 14 Bolt Cover)
- 1987-1991 GMC V2500 Suburban (Rear) (Drive: 4WD / Qualifier: with 14 Bolt Cover)
- 1983-1996 GMC G3500 (Rear Right) (Qualifier: with 14 Bolt Cover)
- 1987 GMC V2500 (Rear) (Drive: 4WD / Qualifier: with 14 Bolt Cover)
