USA Standard Gear ZA K630116 - Rear Axle Kit Fits GM 8.5 Inch Diff 30 Spline 5 Lug 30-7/16 Inch Long USA Standard
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
Description
Description

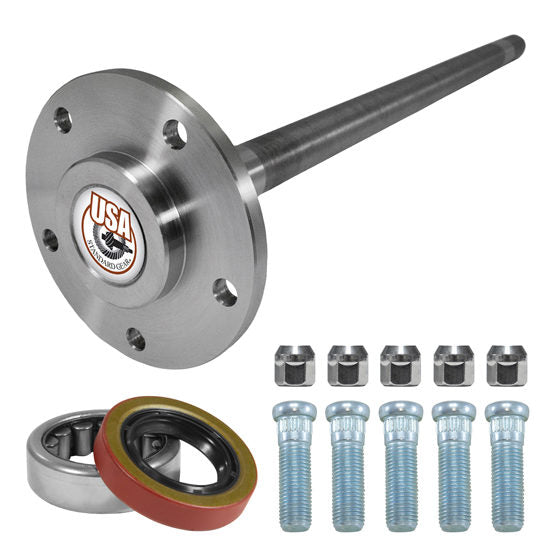

USA Standard Gear ZA K630116 - Rear Axle Kit Fits GM 8.5 Inch Diff 30 Spline 5 Lug 30-7/16 Inch Long USA Standard
USA Standard Gear uses advanced alloys and the latest heat-treating technologies to produce a strong, durable axle. This kit contains all the components to replace, repair, or upgrade axle shafts so your vehicle will be up and running fast.
- Fits GM 8.5 inch. Differential
- 30 Spline
- Length 30.4375 inch.
- Rear, 5 x 4.75 inch. Bolt Pattern
- 2.25 inch. Od Wheel Bearing

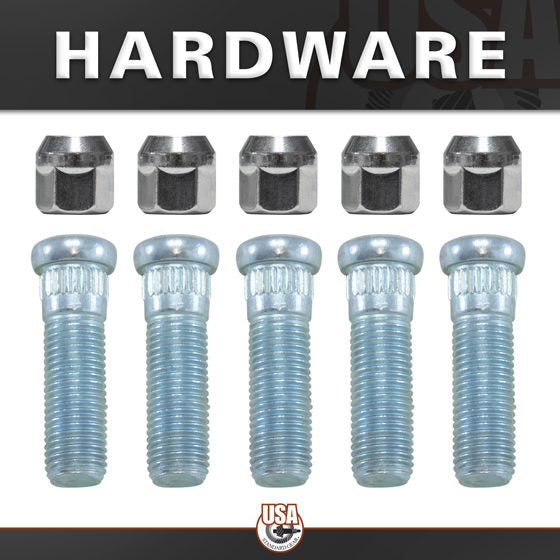

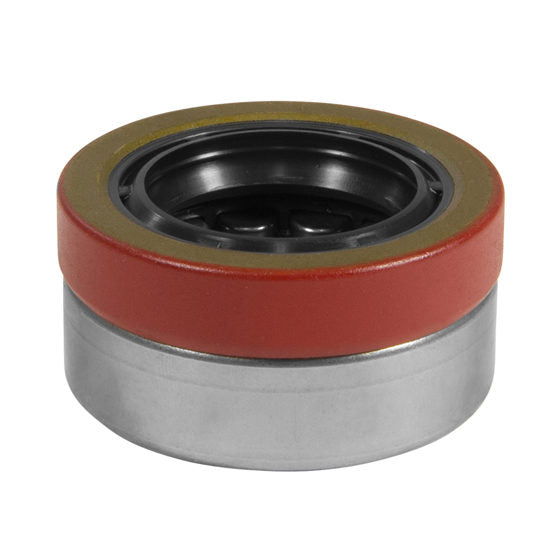

- Includes Wheel Bearing, Seal, Diff Cover Gasket, Studs, and Lug Nuts
Features and Benefits:
- Fits GM 8.5 inch. Differential
- 30 Spline
- Length 30.4375 inch.
- Rear, 5 x 4.75 inch. Bolt Pattern
- 2.25 inch. Od Wheel Bearing
- Includes Wheel Bearing, Seal, Diff Cover Gasket, Studs, and Lug Nuts
Details:
- AAP UDA 12:Ea
- AAP UDA 22:1
- AAP UDA 4:85
- Retainer Included:no
- Wheel Bolt Pattern Size:5 x 4.75 inch
Application Summary:
1989-1990 Chevrolet Caprice (Rear) (Drive: Rwd / Note: GM 8.5 inch. Rear
- Axle Shaft Kit
- 30 Spline
- 30-7/16 inch. Length
- 5 Lug
- 4.75 inch. Bolt Circle
- 2.78 inch. Hub
- 2.25 inch. O.d. Wheel Bearing
- Includes Wheel Bearing, Seal, 7/16 inch. Studs and Lug Nuts)
