USA Standard Gear ZA K630109 - Rear Axle Kit Fits GM 7.5 Inch Diff 28 Spline Left Hand W/Abs 34-7/8 Inch Long USA Standard
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
Description
Description

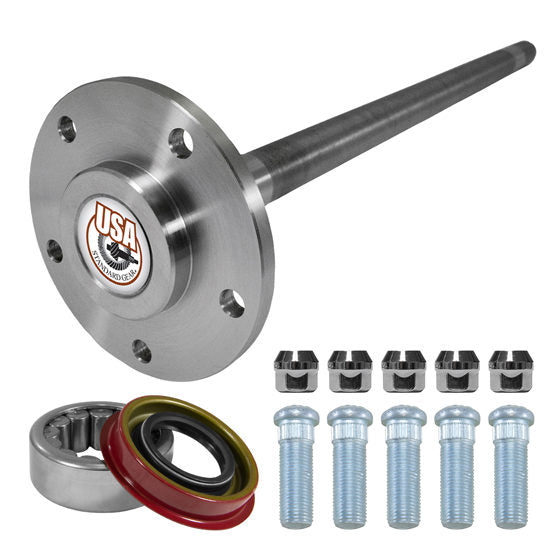

USA Standard Gear ZA K630109 - Rear Axle Kit Fits GM 7.5 Inch Diff 28 Spline Left Hand W/Abs 34-7/8 Inch Long USA Standard
USA Standard Gear uses advanced alloys and the latest heat-treating technologies to produce a strong, durable axle. This kit contains all the components to replace, repair, or upgrade axle shafts so your vehicle will be up and running fast.
- Fits GM 7.5 inch. Differential
- 28 Spline
- Length 34.825 inch.
- Rear, Lh, Without ABS Tone Ring

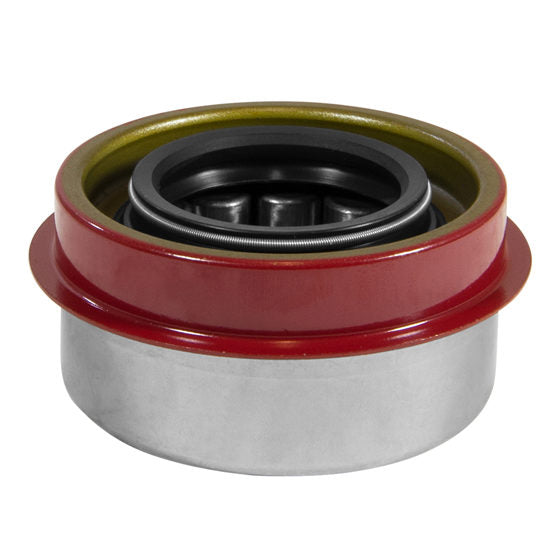

- 2.445 inch. Od Wheel Bearing

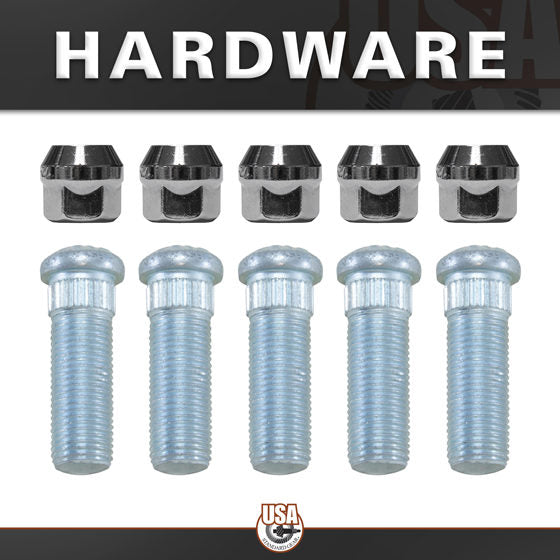

- Includes Wheel Bearing, Seal, Diff Cover Gasket, Studs, and Lug Nuts
Features and Benefits:
- Fits GM 7.5 inch. Differential
- 28 Spline
- Length 34.825 inch.
- Rear, Lh, Without ABS Tone Ring
- 2.445 inch. Od Wheel Bearing
- Includes Wheel Bearing, Seal, Diff Cover Gasket, Studs, and Lug Nuts
Details:
- AAP UDA 12:Ea
- AAP UDA 22:1
- AAP UDA 4:85
- Inboard Spline Quantity:28
- Retainer Included:no
- Wheel Bolt Pattern Size:5 x 4.75 inch
Application Summary:
1990-2002 Chevrolet Astro (Rear Left) (Note: GM 7.5 inch. Rear
- Axle Shaft Kit
- Left Hand
- 34-7/8 inch. Length
- 28 spline
- 2.445 inch. O.d. Bearing
- Includes Wheel Bearing. Seal, Studs and Lug Nuts
- w/o ABS Tone ring)
- 1990-2002 GMC Safari (Rear Left) (Note: GM 7.5 inch. Rear
- Axle Shaft Kit
- Left Hand
- 34-7/8 inch. Length
- 28 spline
- 2.445 inch. O.d. Bearing
- Includes Wheel Bearing. Seal, Studs and Lug Nuts
- w/o ABS Tone ring)
