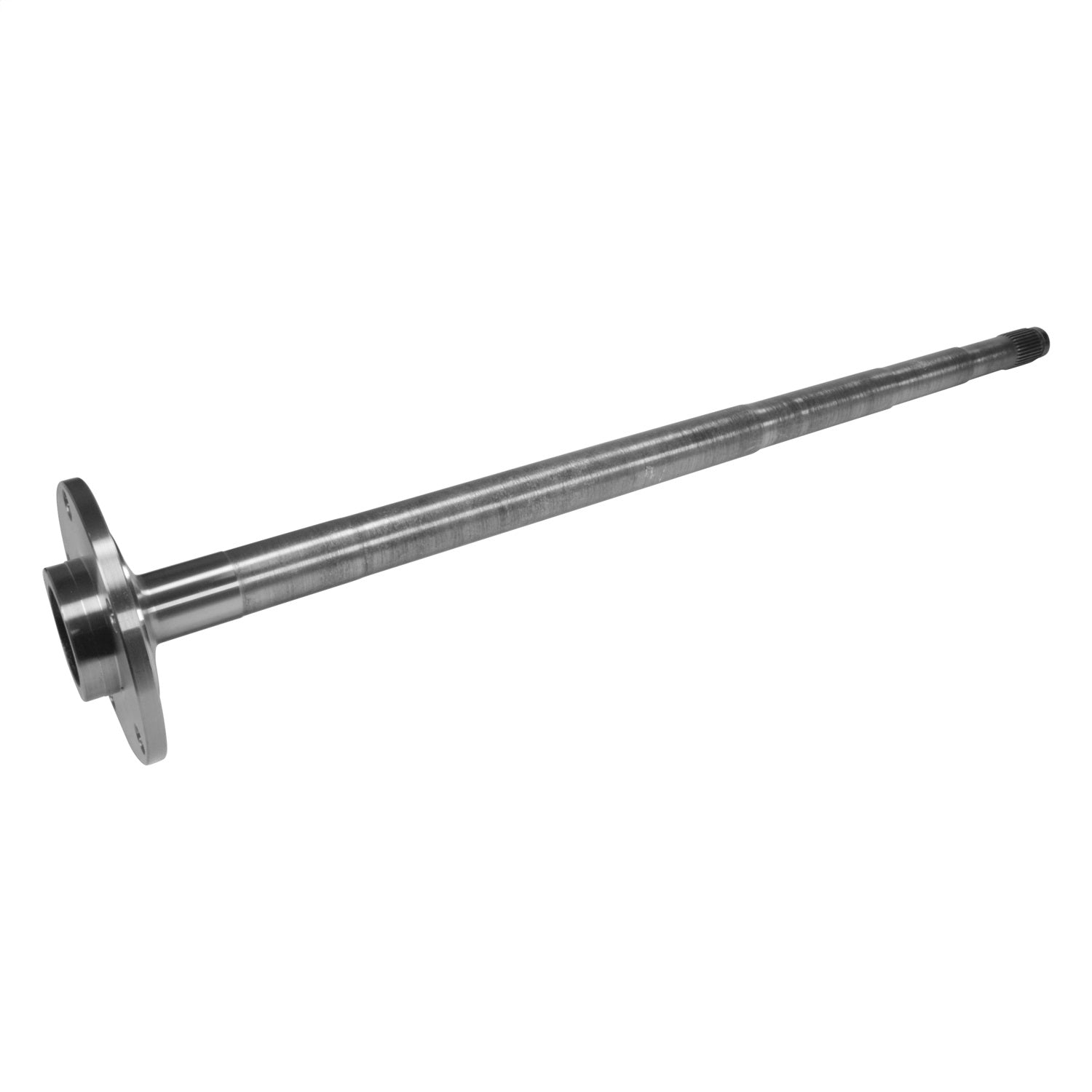

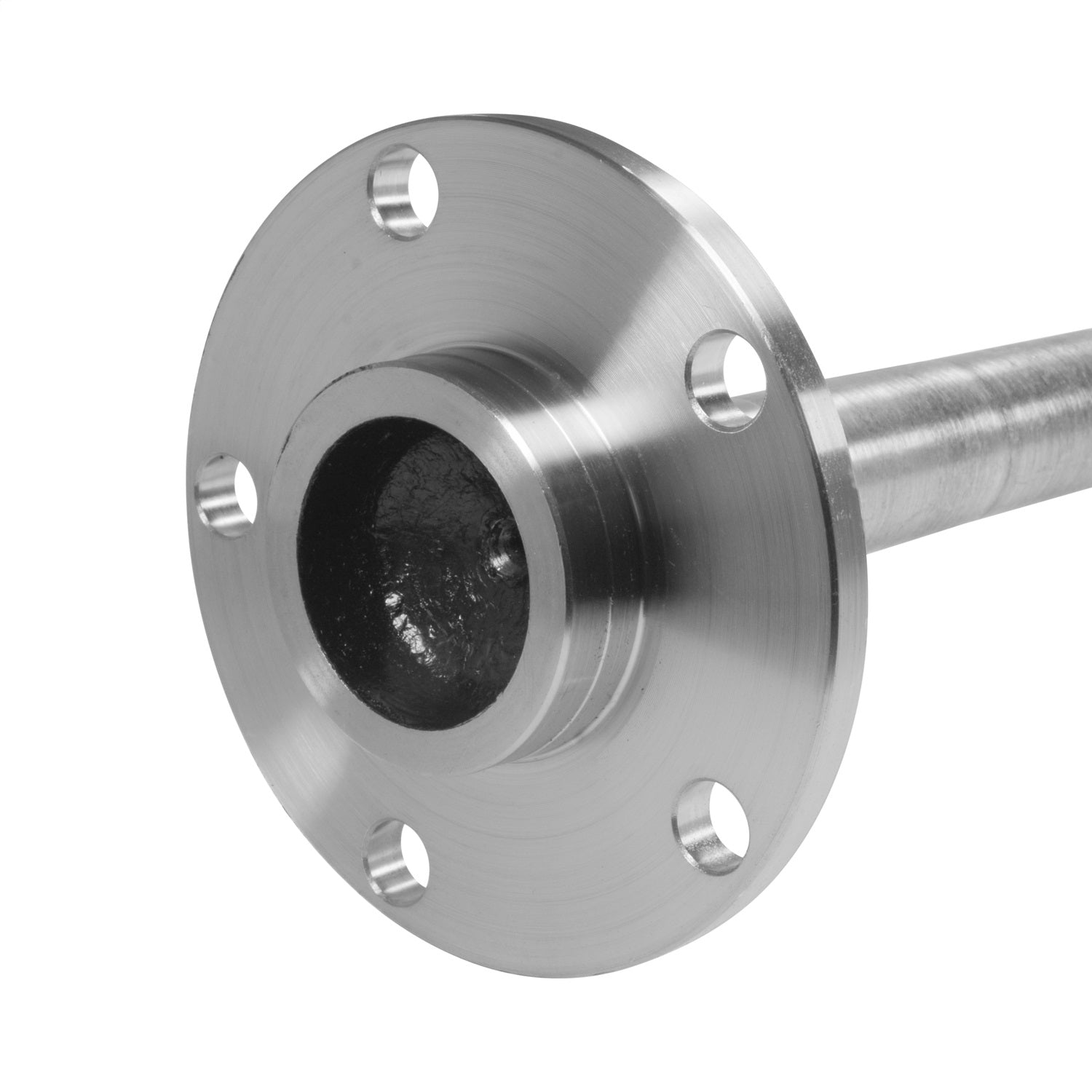

USA Standard Gear ZA C52067614 - Axle For '94 & Up Chrysler 9.25 Truck Rear. 34 1/16 And Has 31Spl Non-Abs Axle. USA Standard
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
Description
Description
USA Standard Gear ZA C52067614 - Axle For '94 & Up Chrysler 9.25 Truck Rear. 34 1/16 And Has 31Spl Non-Abs Axle. USA Standard
USA Standard axle for '94 & up Chrysler 9.25 truck rear. This axle measures 34 1/16 and has 31 spines.
This is a non-ABS axle.
- Fits 1994 and up Chrysler 9.25 truck rear for 2 wheel drive and 4 wheel drive
- 34 1/16 long
- 5 lug
- 31 spline
Features and Benefits:
- Fits 1994 and up Chrysler 9.25 inch truck rear for 2 wheel drive and 4 wheel drive
- 34 1/16 inch long
- 5 lug
- 31 spline
Details:
- AAP UDA 4:50
- ABS Tone Ring Included:No
- Axle Nut Included:No
- Axle Type:Semi Float
- Cv Joints Included:No
- Inboard Spline Quantity:31
- Retainer Included:no
- Rust Resistant Coating:No
- Shaft Length:34.06 inch
- Wheel Bolt Pattern Size:5 x 5.5 inch
Application Summary:
1994-2006 Dodge Ram 1500 (Rear) (Drive: 4WD, Rwd / Note: Chrysler 9.25 inch.
- 31 Spline
- 34-1/16 inch. Length
- 5 Lug)
- 1994-1999 Dodge Ram 2500 (Rear) (Drive: Rwd / Note: Chrysler 9.25 inch.
- 31 Spline
- 34-1/16 inch. Length
- 5 Lug)
