UMI Performance GBF003-1-R - 78-88 GM G-Body Handling Kit Stage 3 - Red

UMI Performance GBF003-1-R - 78-88 GM G-Body Handling Kit Stage 3 - Red

UMI’s Stage 3 kit delivers street and Pro-Touring handling with Bilstein shocks, Delrin bushings, sway bars, and adjustable control arms. Includes 1" lowering springs and comes in red or black, proudly made in Philipsburg, PA, USA.

UMI’s Stage 3 kit is designed to deliver excellent street performance and Pro-Touring handling. It features Delrin lower a-arm bushings for precise steering, ½” taller upper ball joints for optimal tire contact, Roto-Joints in the rear, adjustable length upper control arms, and UMI’s proven sway bars for balanced handling. The kit is equipped with Bilstein B6 Performance shocks for superior control. Available in red or black powder coat, the Stage 3 kit is proudly designed, tested, manufactured, and raced in our Philipsburg, PA shop in the USA. Spring notes: The springs are designed for Chevrolet small block engines, may require trimming for lightweight LS engines, and may cause a 1/4" front end drop for full-weight big block engines. The springs aim to sit level but may need occasional trimming due to varying weights and preferences. UMI’s Stage 3 Handling Kit includes tubular lower and upper a-arms with Delrin bushings, front and rear sway bars, tubular rear lower control arms, adjustable rear upper control arms, tubular frame braces, rear end housing bushings, hardware kits, and Bilstein gas-charged shocks. It also includes 1" lowering springs.

• Increased spindle height by 1/2” via tall upper ball joints
• Upper a-arms add caster for improved steering feel
• Lower a-arms feature Delrin bushings and accept standard springs or coilovers
• 1.250” front sway bar and 1” solid heat formed rear sway bar for flat cornering
• UMI springs with linear rates for consistent handling (600 lb/in front, 130 lb/in rear)
• Rear trailing arms feature Poly and Roto-Joints with adjustable uppers
• Roto-Joints allow smooth articulation for improved handling
• Bilstein B6 Performance shocks for superior control and precise handling

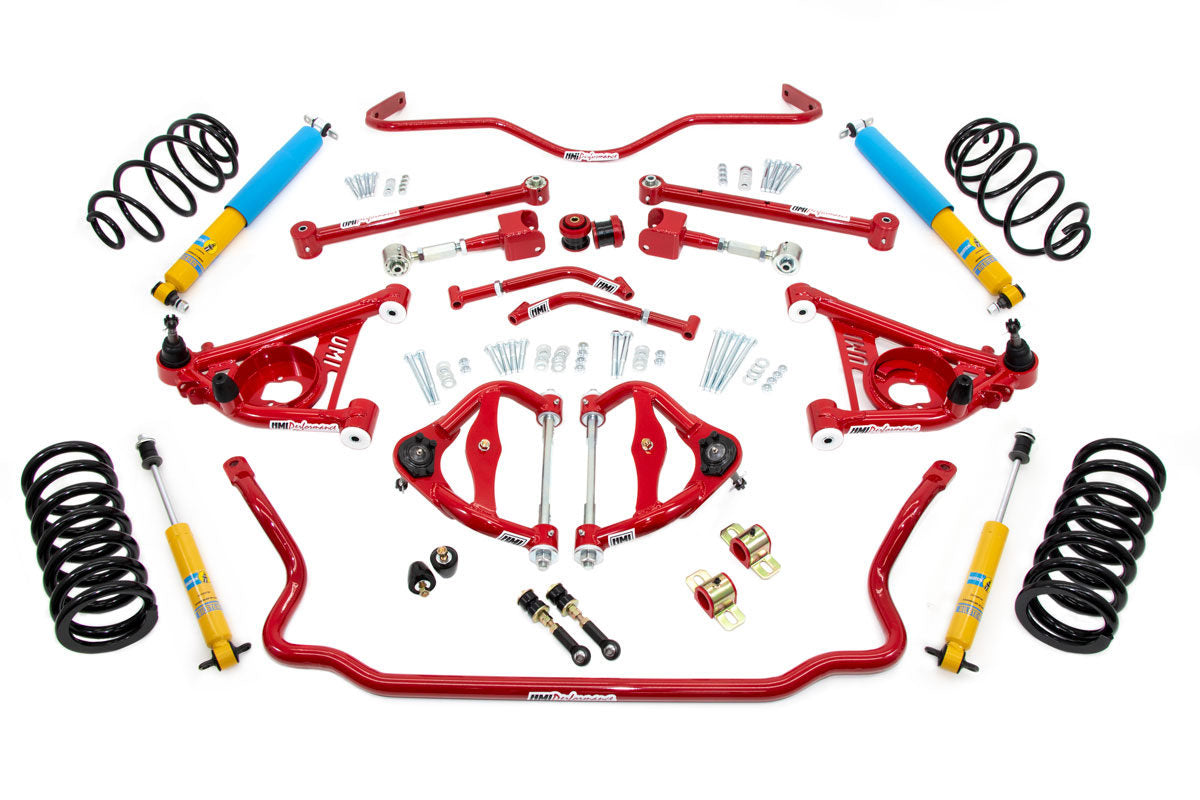

• UMI’s Stage 3 Handling Kit Includes:
• Tubular lower a-arms with Delrin bushings
• Tubular upper a-arms with Delrin bushings & ½” taller ball joints
• Heavy duty 1-1/4” front sway bar
• Solid 1” heat treated rear sway bar
• Tubular rear lower control arms with Roto-Joint
• Adjustable rear upper control arms with Roto-Joints
• Tubular frame braces with hardware
• Replacement rear end housing bushings
• Front upper & lower Grade 8 hardware kit
• Rear control arm Grade 8 hardware kit
• Front & Rear Bilstein gas-charged shocks
