UMI Performance ABR401-R - 65-67 GM A-Body Rear Suspension Kit - Red
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Description
Description
UMI Performance ABR401-R - 65-67 GM A-Body Rear Suspension Kit - Red

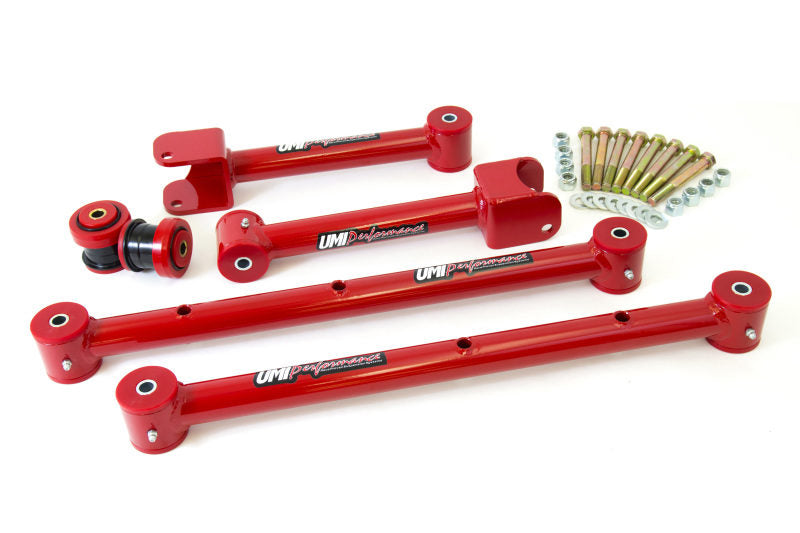

UMI’s A-Body rear kit includes tubular upper/lower arms, rear bushings, and Grade 8 hardware. Greaseable lowers with reinforced sway bar holes and adjustable uppers reduce wheel hop and improve handling.
UMI Performance's kit includes tubular rear lower and upper control arms, new rear end housing bushings, and Grade 8 mounting hardware. Designed as a direct bolt-on replacement for A-Body vehicles, it reduces wheel hop, enhances cornering, and improves track consistency. Stock control arms often cause traction loss and poor handling due to weak materials and bushing deflection. Ideal for both weekend cruisers and track cars, the lower control arms feature grease-able bushings, TIG welded construction, and sway bar provisions reinforced with a 0.120" steel sleeve. Adjustable upper control arms allow pinion angle optimization for better performance.
- Built using 1.500" x 0.120" DOM tubing
- CNC machined for precision tolerances and accuracy
- MIG and TIG weld construction for superior strength
- High Quality polyurethane bushings
- Grade 8 hardware with nylon lock nuts
- Direct bolt-in kit, replaces factory items
- Durable long lasting powder coat
- Designed and manufactured in Pennsylvania, USA
