UMI Performance 4054 - 64-72 GM A-Body Front Coil Over Conversion Brackets Weld In

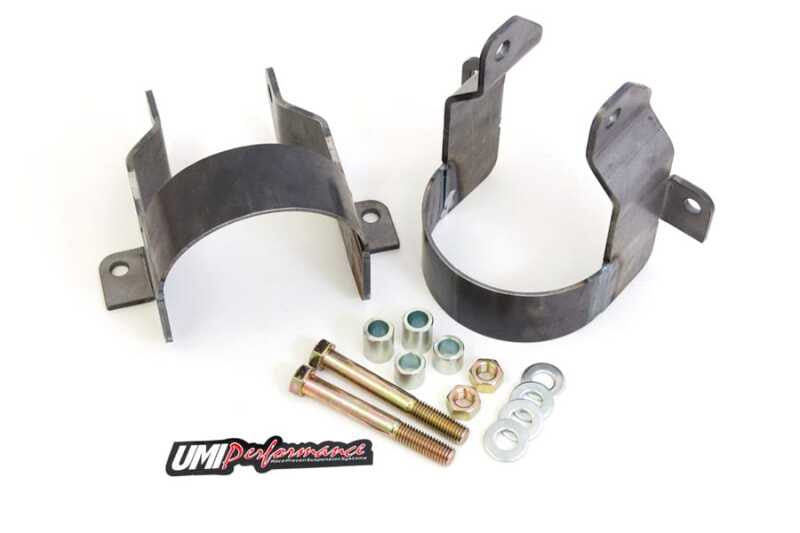

4054 - 1964-1972 GM A-Body Front Coil Over Conversion Brackets, Weld In

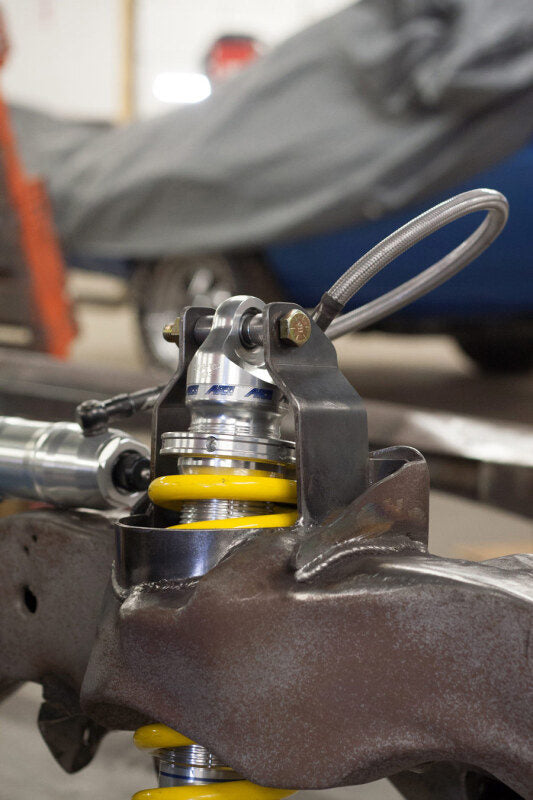

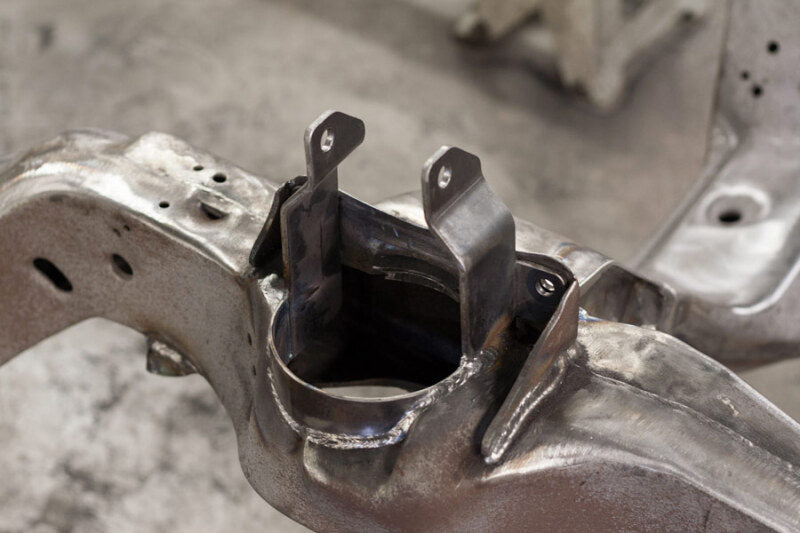

UMI P/N 4054 is used to provide a double shear upper attachment point for a true 2-1/2” racing coilover shock and spring. Most applications will use an industry standard 7” stroke double rod end shock and 12” x 2-1/2” diameter coilover spring. The bracket bolts to the upper a-arm mount in order to properly locate the unit for welding. Prototyping was completed using Afco Pro-Tour Elite shocks. Your brand may require additional modification. Please contact UMI for sizing. Heavy fabrication is required as the 4054 is intended for use on high-end, high performance Pro-Touring builds. UMI components are 100% manufactured, tested, and raced out of Philipsburg, PA-USA.
