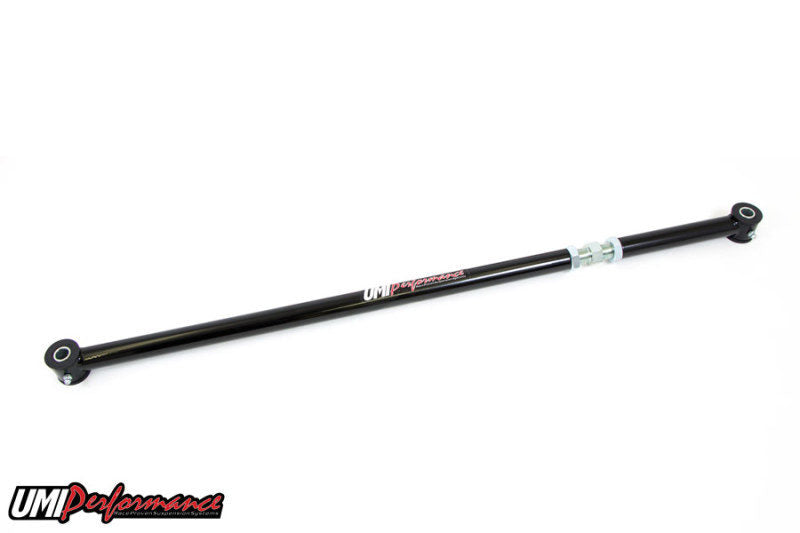

UMI Performance 3659-B - 65-70 GM B-Body Adjustable Panhard Bar

UMI Performance 3659-B - 65-70 GM B-Body Adjustable Panhard Bar

Panhard Bar - Bolt-On - Adjustable - Brace - Steel - Black Powder Coat - GM B-Body 1965-70 - Kit

UMI’s tubular panhard bar for ’65-’70 GM B-Body improves rear stability and allows on-car adjustment. Built from 1” DOM steel with greaseable poly bushings and a 4140 Chromoly adjuster. Direct bolt-in, durable powder coat.

This tubular set-up quickly and easily replaces the stock panhard bar on the 65-70 GM B-Body vehicle adding increased rear end stability and rear end adjustment. This adjustable item allows on-car adjustment when rear end centering is needed. By lengthening or shortening the panhard bar you can easily move the rear end side to side for additional tire clearance and appropriate rear end alignment. All adjustments are made while the panhard bar is still attached to the vehicle and only requires two jam nuts to be loosened. This item is a direct replacement for the factory panhard bar and includes new grease-able high quality polyurethane bushings. Adjustments are made using a left and right hand threaded adjuster CNC machined from 4140 Chrome Moly and heat treated for maximum strength. Note: May not fit wagons, if item is being installed on a wagon please verify length before ordering. The center to center distance of this panhard bar is 35-3/4". The suggested maximum center to center length of this panhard bar is 36-1/4". The suggested minimum center to center length is 35". Installation: This item is a direct fit and requires no modifications, can be installed in 30 minutes or less with basic hand tools. Features: - Built using 1.000" x 0.156" DOM Mild Steel Tubing - Fully TIG Welded Construction - Grease-able high quality Polyurethane Bushings - On-Car Adjustability using a 4140 Heat Treated Adjuster - Supplied with Durable Powder Coat

• 1.000" x 0.156" DOM Mild Steel Tubing
• TIG Welded Construction
• Grease-able high quality Polyurethane Bushings
• On-Car Adjustability with 4140 Heat Treated Adjuster
• Durable Powder Coat Finish
• Direct Replacement for Factory Panhard Bar
• Easy Installation with Basic Hand Tools
• Fits 65-70 GM B-Body Vehicles
• Increased Rear End Stability
• Rear End Adjustment for Centering
• Move Rear End Side to Side for Tire Clearance
• Alignment Adjustments
• Fits most vehicles, may not fit wagons
• Center to Center Distance of 35-3/4"
• Maximum Center to Center Length 36-1/4"
• Minimum Center to Center Length 35"
