UMI Performance 3614-B - 91-96 Impala SS Adjustable Extended Length Lower Control Arms- Rod Ends
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
Description
Description

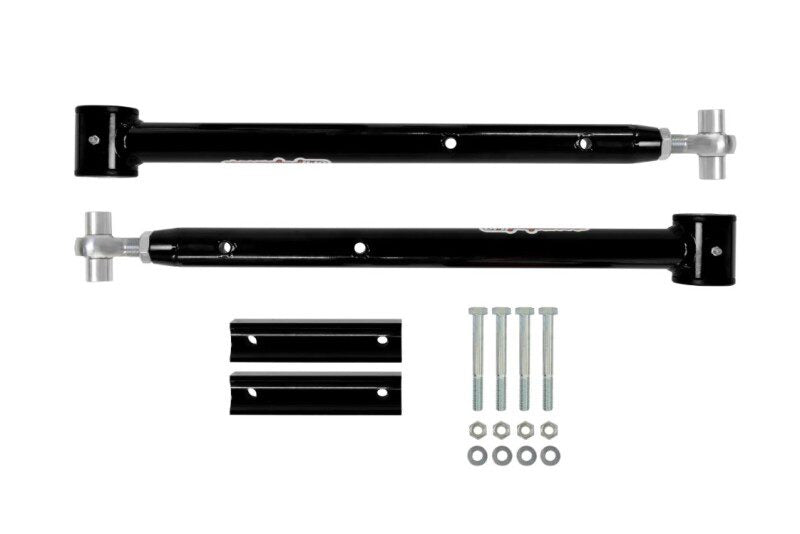

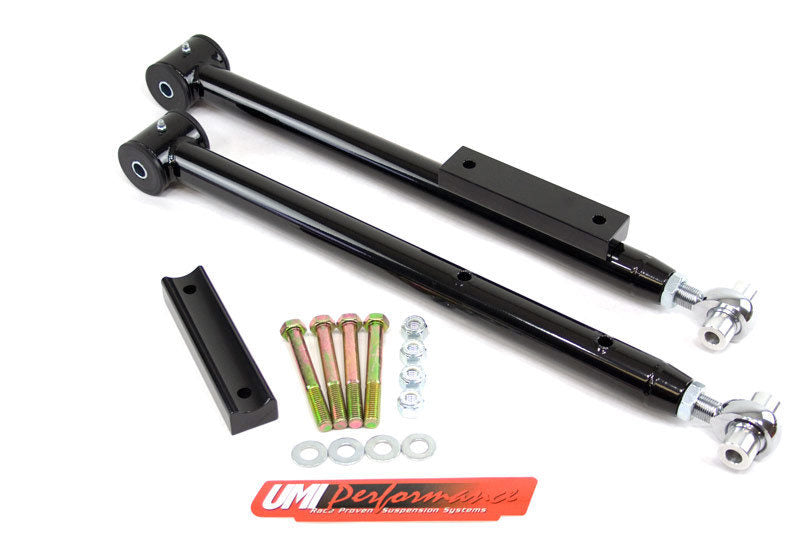

UMI Performance 3614-B - 91-96 Impala SS Adjustable Extended Length Lower Control Arms- Rod Ends
Control Arm - Tubular - Lower - Spherical Rod Ends / Polyurethane Bushings - Steel - Black Powder Coat - GM W-Body 1991-96 - Pair
UMI Performance extended length control arms are designed to properly center the rear wheels in the wheel well of the Impala SS. These control arms are extended by 5/8” and feature additional adjustment capabilities to perfectly center the rear end. This adjustment allows users to lengthen or shorten the control arms by an additional ¼” beyond the initial 5/8". The control arms are constructed from 1.500” DOM tubing and fully TIG welded for maximum strength. They also come with provisions for adding either a stock or aftermarket sway bar. The sway bar holes are reinforced with a 0.120” thick steel sleeve, TIG welded and sanded in place. The sway bar connects to the control arms using a billet aluminum spacer that is contoured to match the shape of the round tubing, ensuring a proper attachment at the factory location. The control arms attach to the rear end with spherical bearing rod ends, promoting a bind-free operation for improved handling. This setup allows the suspension to articulate correctly while the polyurethane end bolts to the chassis, absorbing unwanted road noise.
- Extended length control arms designed to center rear wheels in wheel well
- Control arms extended 5/8" with additional 1/4" adjustment for perfect centering
- Built from 1.500" DOM tubing and fully TIG welded for strength
- Correct provisions for adding stock or aftermarket sway bar
- Sway bar holes reinforced with 0.120" steel sleeve
- Sway bar attaches with billet aluminum spacer
- Spherical bearing rod ends for bind-free operation
- Polyurethane end bolts absorb road noise
- Compatible with UMI Performance weld-in relocation brackets
- Installs in 1-2 hours using OEM hardware
- CNC machined for exact tolerances
- Chrome moly Teflon lined spherical bearing rod ends
- Fully assembled with grease-able High Quality bushings
- Durable glossy powder coat finish
- Includes new 10.9 grade sway bar hardware
