UMI Performance 3056-2-R - 78-88 G-Body S10 Tubular Front Upper A-Arms Adjustable
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
Description
Description

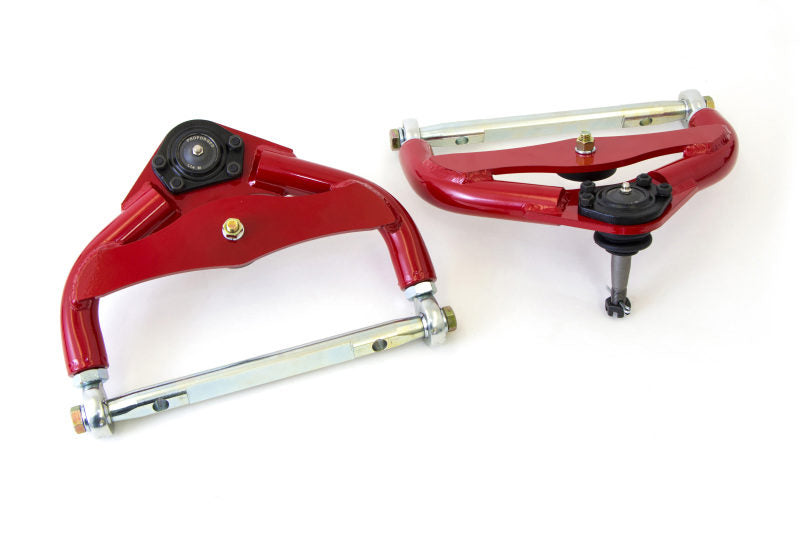

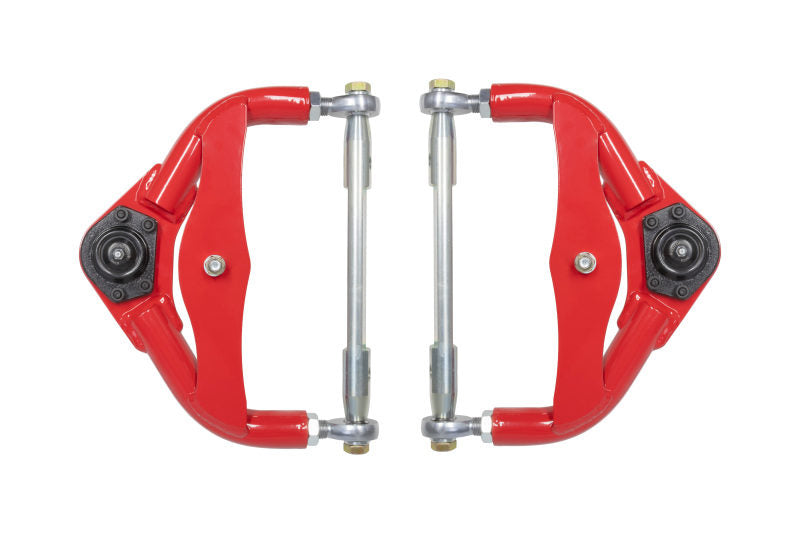

UMI Performance 3056-2-R - 78-88 G-Body S10 Tubular Front Upper A-Arms Adjustable
UMI 3056 arms add caster/camber, smooth travel, and track-ready precision.
UMI 3033-2 upper a-arms boost performance with added caster and camber gain. Features include tall ball joints, Delrin bushings, CrMo shafts, and improved geometry for better grip, steering feel, and cornering on street or track.

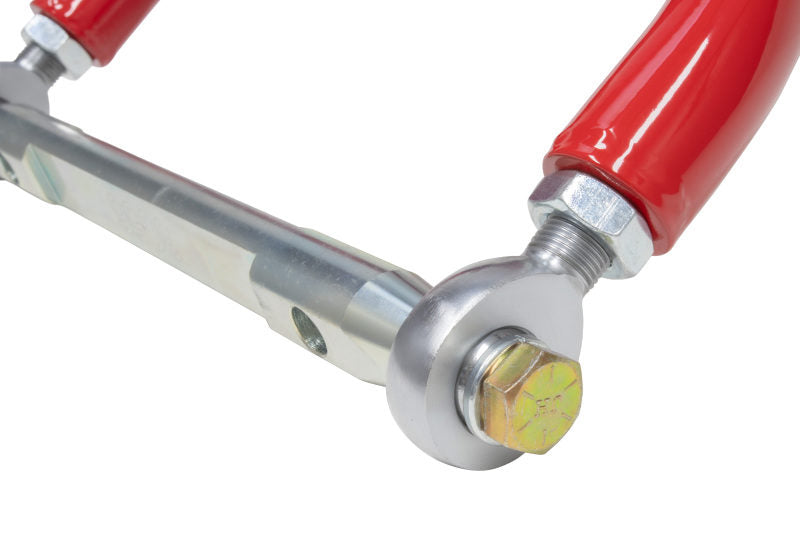

UMI’s 3056 adjustable upper a-arms are designed to excel in Pro-Touring, road race, auto-x and hot street corner carving. The race quality rod ends provide shim-free camber and caster adjustment along with ultimate smooth travel. This arm features a relocated ball joint pad to increase caster and improve stability and steering feel as well as a shortened cross shaft to ball joint distance. We recommend the 3056 arm for all racing applications. Arm includes ½” taller baller joints for improved camber curve. 100% manufactured, tested and raced out of Philipsburg, PA – USA.
- Relocated ball joint pad for increased caster and improved steering feel without excess shims.
- 1/2” taller ball joint for improved camber curve.

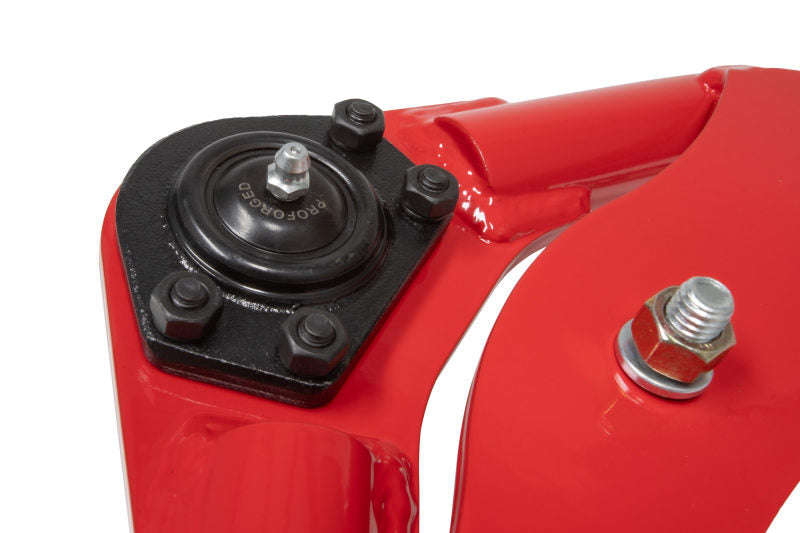

- CNC laser cut ball joint mounting pad.
- 0.120” wall thickness 1.250” diameter DOM tubing.
- TIG welded for superior strength and clean looks.
- 4130 CrMo cross shafts, CNC machined & zinc plated.
- Polyurethane bump stops included.
- Travel limiting bolt compatible.
- Direct bolt-in compatible with factory or UMI lower a-arm.
- May also work in conjunction with other lower a-arms and/or spindles (contact UMI to discuss).
- Package includes recommended alignment specs and detailed installation instructions.
- Designed, tested, manufactured and raced in Philipsburg, PA-USA.
