UMI Performance 2218-R - 82-92 GM F-Body Tunnel Mounted Trq. Arm Fits TH400- No Loop - Red

UMI Performance 2218-R - 82-92 GM F-Body Tunnel Mounted Trq. Arm Fits TH400- No Loop - Red

UMI Torque Arm kit for 82-92 Camaro/Firebird simplifies TH400 installs.

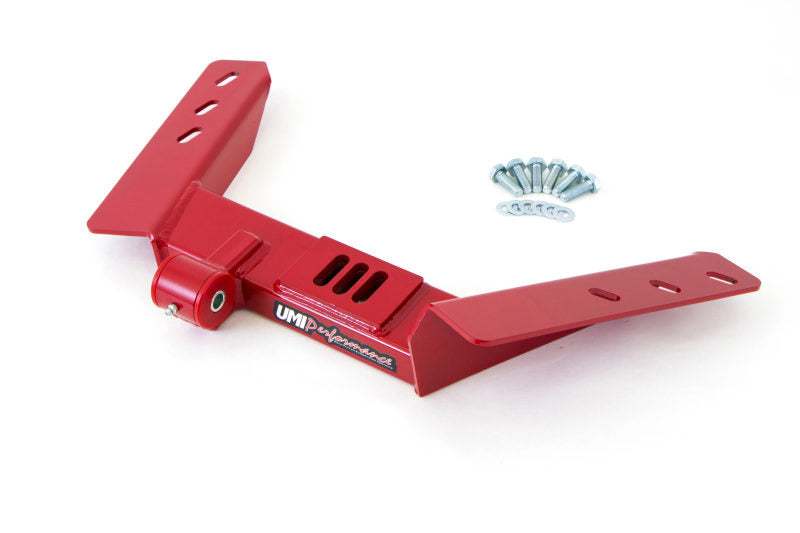

UMI’s tunnel-mounted Torque Arm kit fits TH400. Includes crossmember, adjustable torque arm, and pivot brackets for instant center tuning. Protects the transmission tail shaft and works with stock or Moser rear-end hardware.

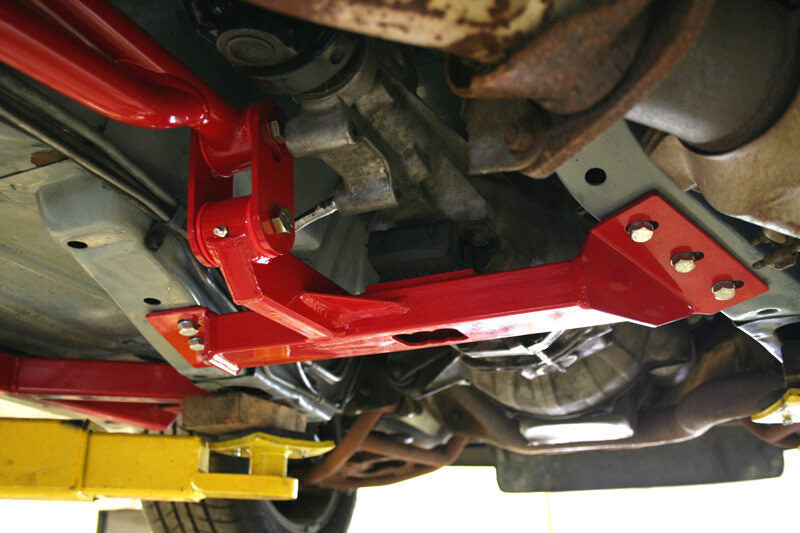

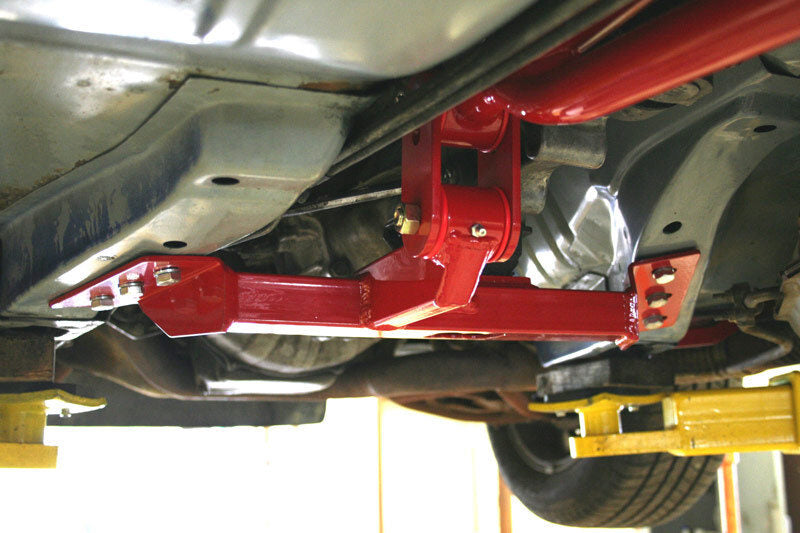

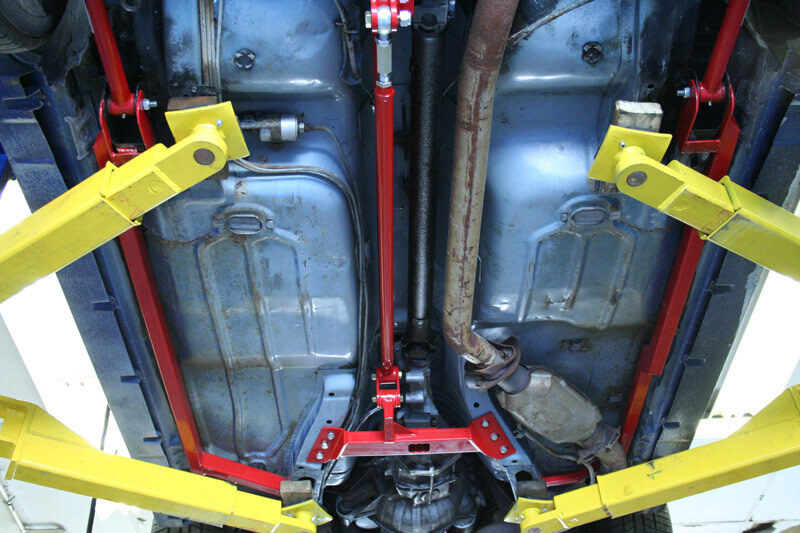

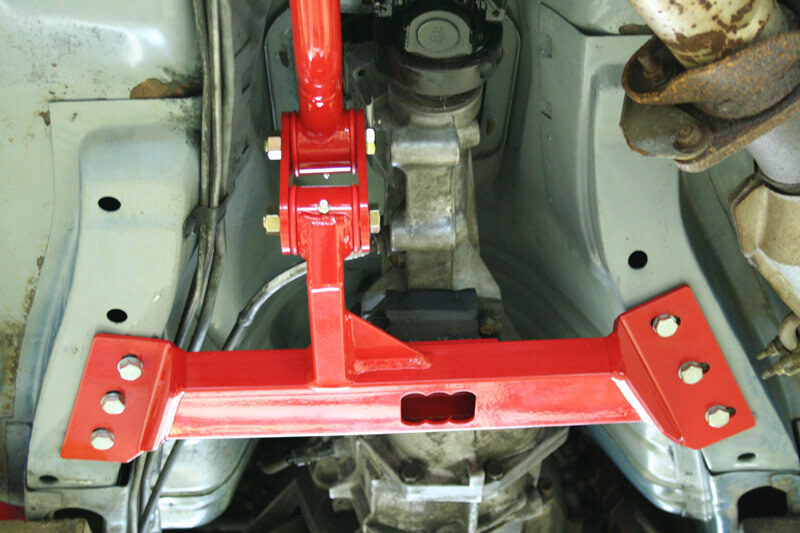

This torque arm set-up is designed to remove the front mounting point of the torque arm off the transmission, protecting the tail shaft from damage. This torque arm is supplied with pivot brackets that allow (2) settings to allow easy instant center adjustments. By simply moving the torque arm into the next location you can automatically change the instant center point of the vehicle. This is very crucial on low to mid horse-power cars and can easily lower 60-foot times. This set-up bolts to existing floor pan holes using 0.188" thick mild steel CNC machined mounting plates and metric grade 10.9 hardware. The complete cross brace is constructed of 0.120" thick rectangular tubing and attaches to the torque arm using 0.250" thick mild steel mounting pivot plates with Grade 8 hardware. The torque arm is attached to the supplied cross brace using an Energy Suspension polyurethane bushing set-up on both the supplied cross brace and torque arm. Polyurethane was chosen as a mounting point to keep road noise at a minimum and eliminate unwanted "clunks" found with other set-ups available. The grease-able polyurethane bushings absorb road irregularities and protect noise from entering the passenger compartment. The rear mounting points feature 0.375" thick CNC machined mounting plates and are appropriately drilled to fit your stock rear as well as aftermarket 12-Bolt and 9" Rear-end housings. This set-up requires no welding or drilling and can be installed with basic hand tools; this is a complete bolt-in design!

• Protects transmission from damage
• Eliminates wheel hop and improves traction
• Reduces front end nose dive during braking
• Allows for on-car pinion angle adjustments
• Polyurethane bushings minimize road noise
• Grease-able pivot points with instant center adjustment
• Bolt-on design requires no welding or drilling
• Made of high-quality seamless steel tubing
• TIG welded chrome moly tube adaptors
• On-car adjuster for maximum strength
• CNC machined mounting plates for accuracy
• Rear mounting plates designed to fit various rear-end housings
• Durable powder coat finish for longevity
