UMI Performance 2016CM-R - 82-02 GM F-Body Tubular Adjustable Lower Control Arms
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Description
Description

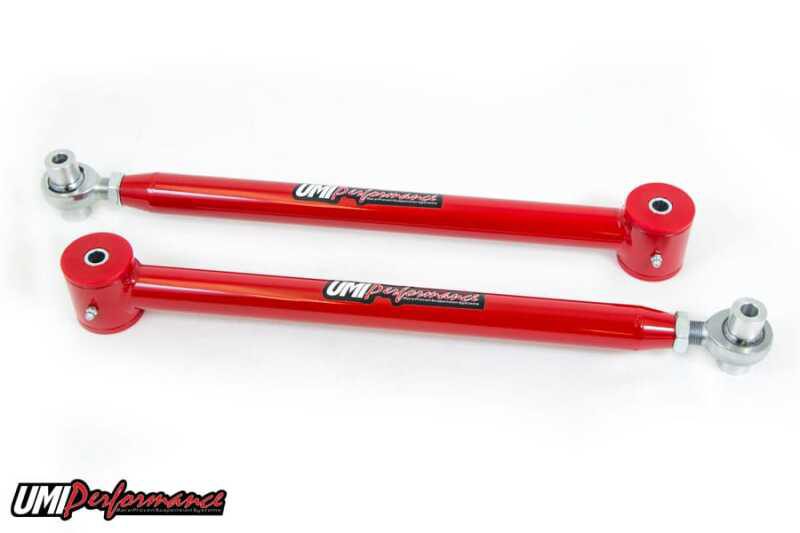

UMI Performance 2016CM-R - 82-02 GM F-Body Tubular Adjustable Lower Control Arms
UMI tubular adjustable arms cut wheel hop and boost handling performance.
Upgrade to UMI tubular adjustable control arms for reduced wheel hop, better cornering, and improved track consistency. Built from DOM or chrome moly steel with QA1 Teflon-lined rod ends and polyurethane bushings, quiet and bind-free.
Replace your weak, factory-stamped lower control arms with UMI's heavy-duty tubular adjustable setup. These direct bolt-on replacements reduce wheel hop, enhance cornering, lower ETs, and help maintain track consistency. The spherical rod end enables "bind-free" operation, making it an excellent upgrade for both track and autocross vehicles. The polyurethane bushings are designed to bolt to the car chassis for a quiet, comfortable operation. Control arms are constructed from DOM mild steel tubing with a diameter of 1.375" and a wall thickness of 0.095". They also feature a 4130 chrome moly threaded tube adaptor, which is completely CNC machined and fully TIG welded for exceptional strength. The control arms include polyurethane bushings, zinc-plated steel sleeves, and "on-car" greaseable zerk grease fittings. Adjustments can be made using the high-quality QA1 Teflon-lined spherical rod end, ensuring quiet, bind-free performance. Installation takes approximately 30 minutes at factory mounting points using OEM hardware. The poly end is designed to bolt to the chassis for a quiet, comfortable ride. The chrome moly version uses 1.250" x 0.095" 4130 chrome moly steel, which increases strength while reducing product weight.
- 1.375" x 0.095" DOM Mild Steel Tubing
- 4130 Chrome-Moly Threaded Tube Adaptor
- QA1 3/4" Hard Chrome Plated, Teflon/Kevlar Self-Lubricating Race Rod End
- TIG Welded Construction
- CNC Machined 6061 Aluminum Step Bushings with Zinc Plated Steel Sleeves
- High Quality Fluted Polyurethane Greaseable Bushings

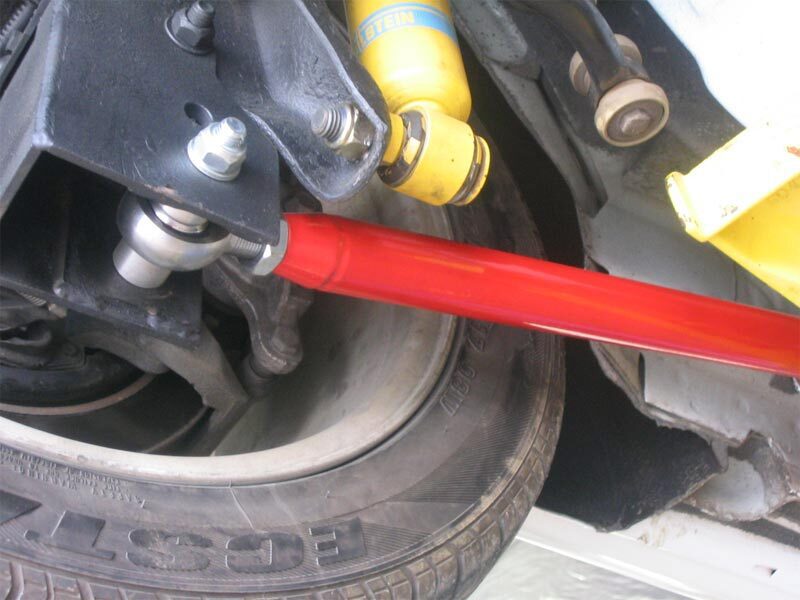

- Easy installation with OEM hardware
- Quiet and comfortable operation
- Chrome Moly version for increased strength and reduced weight
- Note: For detailed installation instructions, refer to the provided link.
